MTD Accessories Spreader 45-03291 (190-036-000) 190-036-000 (2008) Basic machine Spareparts

TENSION SLEEVE 1/8"X1"LG

Article Number:

AF-46055

Pos:

DINNORM:

46055

Description:

1/8"X1"

Modell Year:

45-03291 (190-036-000) / 2008

5.67 €

for EU Including VAT, plus shipping

Contact details Product safety

Article added to Cart!

Will be ordered for you: Delivery time approx. 5 to 14 working days.

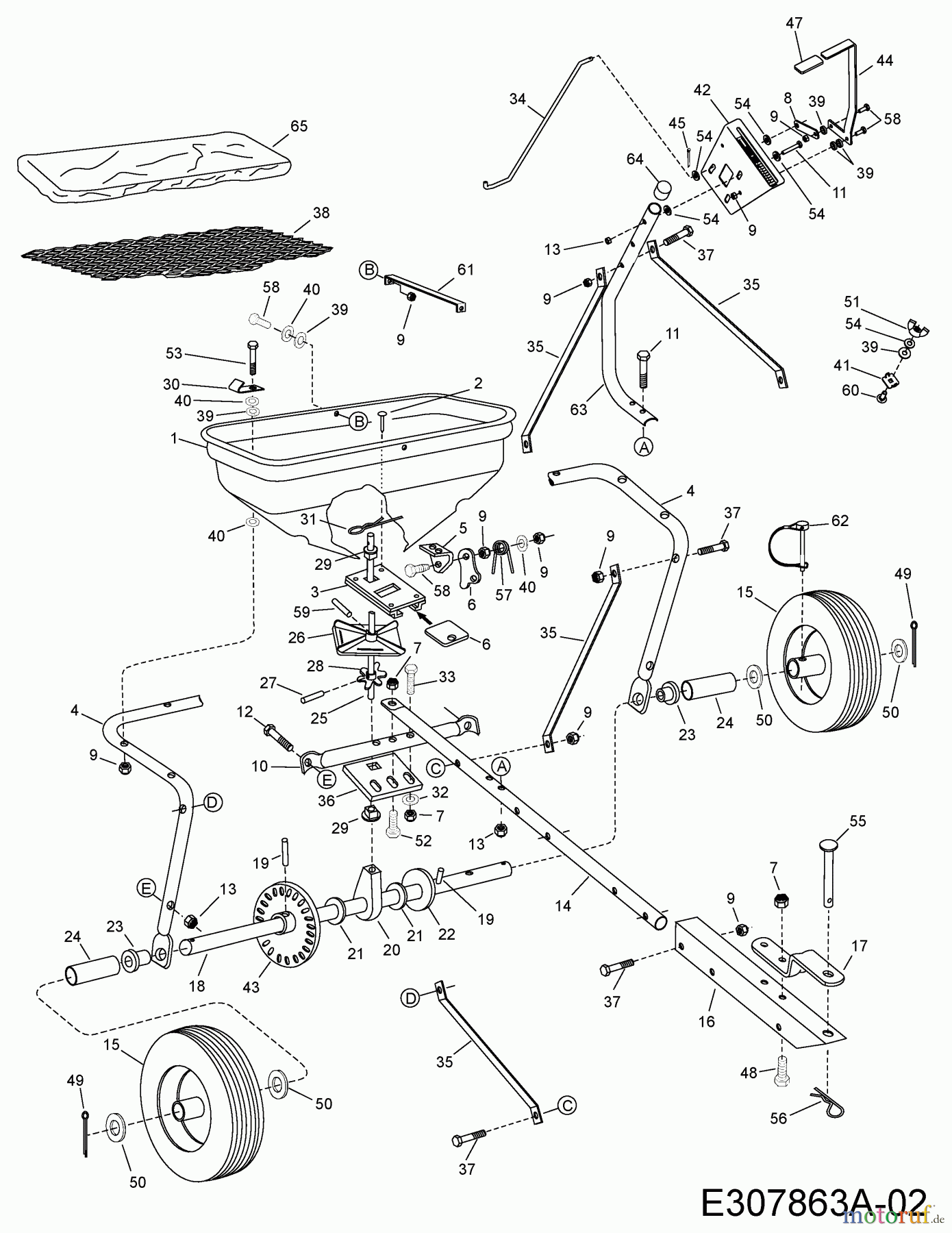

MTD Accessories Accessories garden and lawn tractors Spreader 45-03291 (190-036-000) 190-036-000 (2008) Basic machine

Pos	Article Number	Description
1	AF-44480	PLENTUM-AIR
2	AF-43882	RIVET, STAINLESS CSL-6-6
3	AF-65129	PLATE GEAR
4	AF-44462	HANDLE BARS
5	AF-23753	BRACKET, GATE SLIDE ANGLE
6	AF-23758	PLATE
7	AF-HA21362	Nut
8	AF-24857	FLOW CONTROL LINK
9	AF-47189	HEX LOK NUT,NYLON UNSERT1/4-20
10	AF-43808	TUBE, CROSSOVER (PAINTED)
11	AF-43084	SCREW,HEX CAP
12	AF-44180	BOLT
13	712-3004A	NUT:FLGLK:5/16-18:GR5:SD LK
14	AF-48864	TUBE ASM:STEERING
15	AF-48511	WHEEL 15X6-3/4" (GREY)
16	AF-25080	BRACKET HITCH EXTENSION
17	AF-23014	HITCH PLATE
18	AF-24914	Axle
19	AF-43851	roll pin
20	AF-43871	BUSHING, AXLE/SHAFT (BLACK)
21	AF-1540-32	WASHER, FLAT 1.25x.78x.015
22	AF-1540-162	WASHER
23	AF-47615	Bearing flange
24	AF-47683	SPACER TUBE
25	AF-25305	SHAFT, SPREADER
26	AF-4367	SPREADER PLATE
27	AF-43850	USE 715-0247
28	AF-44468	SPROCKET-GEAR SUB ASS`Y 38"
29	AF-44285	BUSHING, HOPPER BOTTOM BLACK
30	AF-25672
31	AF-48934	COTTER PIN 5/32"x2"
32	AF-43070	washer
33	AF-43054	BOLT ASSY-HEX
34	AF-48586	ROD FLOW CONTROL
35	AF-23525	BRACE, HITCH
36	AF-23762	BRKT PULLEY
37	710-0136	HHCS:1/4-20:1.75:GR5:STD
38	AF-47441
39	AF-1543-69	WASHER, NYLON 21/64
40	AF-43088	WASHER, 1/4 STD WRT PLTD
41	AF-24858	ADJUSTABLE STOP
42	AF-24915	BRACKET FLOW CONTROL MOUNT
43	AF-62474	DRIVE DISC
44	AF-24917	FORK,LIFT
45	AF-44101	PIN, COTTER 3/32 x 3/4 PLTD
46	AF-23533	DRAWBAR
47	AF-43848	HANDLE
48	AF-43407	BOLT, HEX 3/8-16x3/4 GR 5 PLTD
49	AF-43093	PIN-COTTER
50	AF-43009	WASHER
51	AF-47141	WING NUT
52	AF-HA180132	BOLT HEX 3/8-16X2-1/4
53	AF-46699	HEX. SCREW 1/4-20X2"LG
54	AF-R19111116	WASHER. 1.59x1.032x.060
55	AF-47623	CLEVIS PIN
56	AF-43343	PIN-COTTER
57	AF-44566	SPRING-EXTENSION
58	AF-43661	BOLT, HEX 1/4-20x1 GR 5
59	AF-46055	TENSION SLEEVE 1/8"X1"LG
60	AF-44950	BOLT, CARR 1/4-20x3/4
61	AF-23697	STRAP, HOPPER
62	AF-48515	DRIVE PIN W/BAIL 1/4" X 2"
63	AF-48514	FLOW CONTROL MOUNTING TUBE
64	AF-44481	CAP, VINYL
65	AF-43962	COVER, VINYL HOPPER
