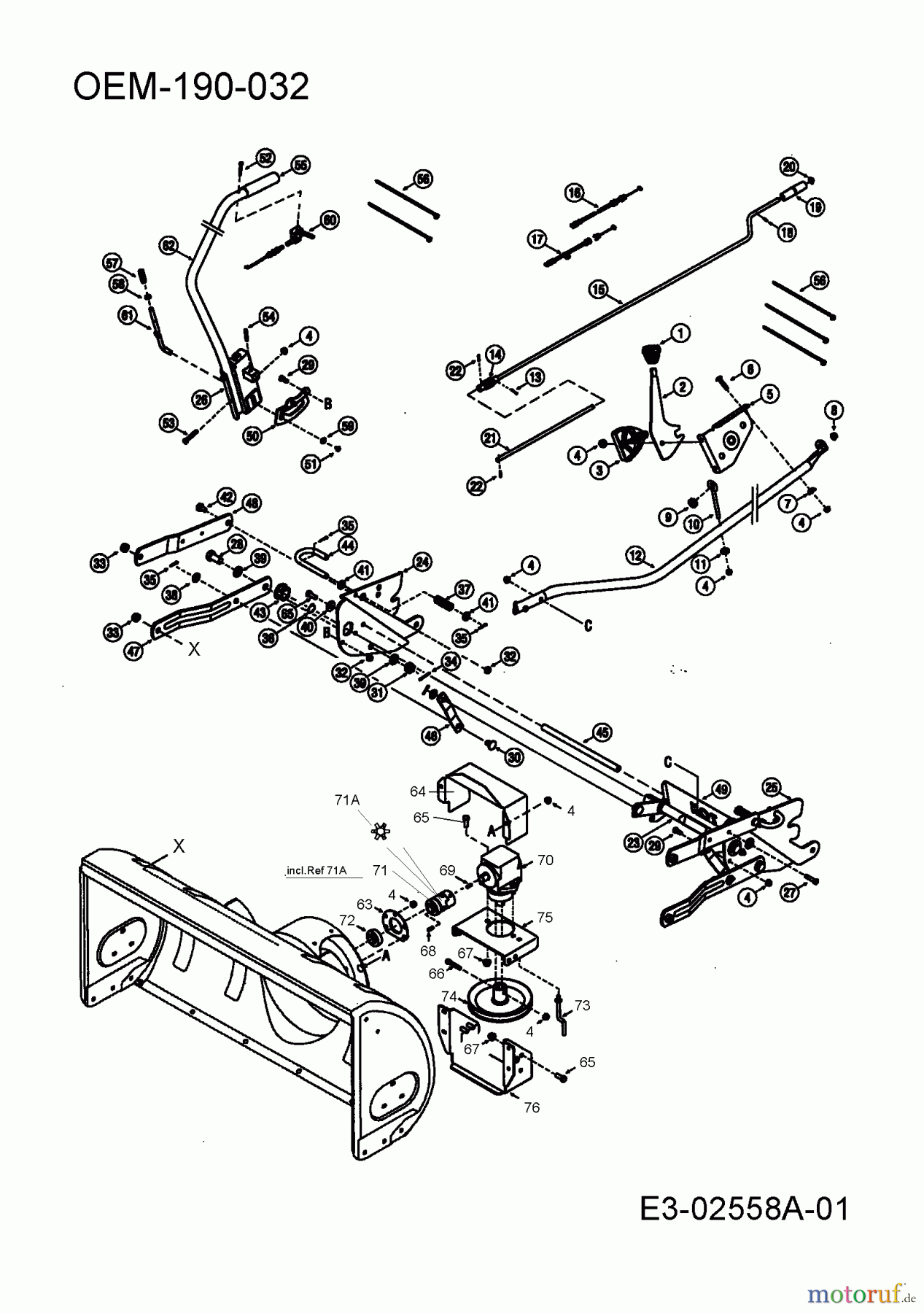

MTD Accessories Snow throwers for 800 series (RT-99) (42"/107cm) OEM-190-032 (2006) Auger housing lift, Gearbox Spareparts

COVER

Article Number:
703-2736
Pos:
64
DINNORM:
703-2736
Modell Year:
für 700 Serie (LT-5) (42"/107cm) / 2006 für 800 Serie (RT-99) (42"/107cm) / 2006 für 450 Serie (42"/107cm) / 2006 für CC 1000 SD Serie (42"/107cm) / 2006 für GT Modelle (42"/107cm) / 2006 für 600 Serie (RT-99) (42"/107cm) / 2006 für 500 Serie (42"/107cm
no longer available
MTD Accessories Accessories garden and lawn tractors Snow throwers for 800 series (RT-99) (42
PosArticle NumberDescription
1 MTD Accessories KNOB:SHFT:1.60 OD X 1.56720-0232KNOB:SHFT:1.60 OD X 1.56
2 784-5604LEVER-CONTROL
3 731-1313CGDE:CBL:CHUTE TILT
4 MTD Accessories FLANGED NUT 5/16-18:GRF:NYLON712-04063FLANGED NUT 5/16-18:GRF:NYLON
5 603-0302BRKT:TRNMT
6 710-0262BOLT:CRG:5/16-18:1.50:GR2
7 736-0451WASH:SDL:.320 x.93 x.060
8 MTD Accessories BRG:FLG:SNAP .385 ID741-0475BRG:FLG:SNAP .385 ID
9 735-0234GROM:RUBBER:.44 IDx.94 ODx.50
10 747-0697BOLT:EYE:.70 DIA CHUTE CRANK
11 MTD Accessories WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
12 750-04467TUBE:CHUTE:SUPPORTPOWDER BLACK
13 MTD Accessories PIN:COT:3/32 X .750714-0507PIN:COT:3/32 X .750
14 784-5149JOINT BLOCK ASSEMBLY
15 747-1201ROD-CHUTE CRANK
16 746-1108CABLE-CHUTE 62"LG
17 746-1109CABLE-CHUTE W/CLIP 62"LG
18 715-0138USE 715-0247
19 720-0201AKNOB:CRK:1.00 DIA x 3.2 CHUTE
20 726-0100CAP
21 747-04400ROD: .375 DIA X 13.5
22 715-0129PIN:SPIROL:.125 x.812
23 611-0132AROD ASM
24 684-0150APLATE-SUPPORT ASM POWDER BLACK
25 684-0151APLATE-SUPPORT ASM LH BLACK
26 683-04150BRAcKET:LIFT SNOW POWDER BLACK
27 710-0805SCRE.HHCS:5/16-18:1.50:GR5:STD
28 710-0964ASCREW HHCS:5/8-18:1.31GR5:SPEC
29 MTD Accessories SCREW HHCS:5/16-18:.75:GR5:STD710-3008SCREW HHCS:5/16-18:.75:GR5:STD
30 MTD Accessories PIN:CLV:.50 DIA x.78 LG711-0332PIN:CLV:.50 DIA x.78 LG
31 712-0386ANUT:HEX:5/8-18:SLOTTED
32 712-3000NUT:HEXLK:3/8-16 GR.B CTRLK
33 712-3022NUT:HEXLK:1/2-13:GRB:CTRLK
34 MTD Accessories PIN:COT:1/8 x 1.25714-0470PIN:COT:1/8 x 1.25
35 MTD Accessories PIN:COTTER 1/8 OD x.75714-0474PIN:COTTER 1/8 OD x.75
36 716-0102RING SNAP:1.00 DIA SHAFT
37 732-0987Spring
38 MTD Accessories WASHER:FL:.510 X 1.000 X .060736-0272WASHER:FL:.510 X 1.000 X .060
39 MTD Accessories WASHER:FLAT:.640 x 1.120x .125736-0366WASHER:FLAT:.640 x 1.120x .125
40 MTD Accessories WASH:BELL:.396 x 1.140 x.095736-0452WASH:BELL:.396 x 1.140 x.095
41 736-3069WASH:FLAT:.531 x .875 x .150
42 738-0234SCREW-SHLD
43 MTD Accessories Bearing flange741-0170Bearing flange
44 747-1191TIE-STRAP
45 747-1192ROD
46 783-0876LINK
47 783-0877ACONTROL ROD
48 783-0878ALINK
49 783-1274BSHLD:HOOD:8 STYLE 1.60 LG
50 790-00110BRACKET:LOCKOUT POWDER BLACK
51 710-1268HEX. SCREW:B:#10-16:0.375
52 710-3143SCR:T:#10-24:1.500:PANPHI
53 MTD Accessories HHCS:5/16-18:1.75:GR5:STD710-3180HHCS:5/16-18:1.75:GR5:STD
54 715-0114SPRING PIN
55 720-0274GRIP:1.0 ID x 5.0 LG
56 725-0157CBL:TIE: 3/16 X .05 X 7.4
57 732-0306COMPR.SPRING:.406x.531x1.75 LG
58 736-0140WASH:FLAT:.385 x.62 x.063
59 736-0400WASHER:FLAT:.194 x .620 x .063
60 746-1103ACABLE-LIFT W/TRIGGER
61 747-1203ROD-LIFT INDEX
62 750-1221TUBE-LIFT HANDLE
63 05931AHSG:BRG:1.85 ID
64 703-2736COVER
65 MTD Accessories HHCS:3/8-16:1.00:GR5:STD710-0514HHCS:3/8-16:1.00:GR5:STD
66 710-3251SHCS:5/16-18:1.75:GR5
67 MTD Accessories NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
68 714-0122KEY-SQ 3/16x.75
69 714-0126KEY-HI-PRO:3/16 x 3/4 DIA
70 717-1714ADRIVE-RIGHT ANGLE
71 718-0691CONNECTING PART
71A 735-0676BUSHING SPIDER
72 MTD Accessories BALL BRG:.75 ID x 1.85 OD FLNG741-0309BALL BRG:.75 ID x 1.85 OD FLNG
73 747-1257KEEPER BELT
74 756-1181APULLEY-DRIVE 7.0"
75 783-1014ABRACKET MOUNTING
76 784-0402PLATE SKID
