MTD-Engines 1 P 60 FA 752Z1P60FA (2005) Carburetor Spareparts

SCREW

Article Number:
092.49.157
Pos:
19
DINNORM:
173015-Q007-0000
Description:
173015-Q007-0000
Modell Year:
1 P 60 FA / 2005
no longer available

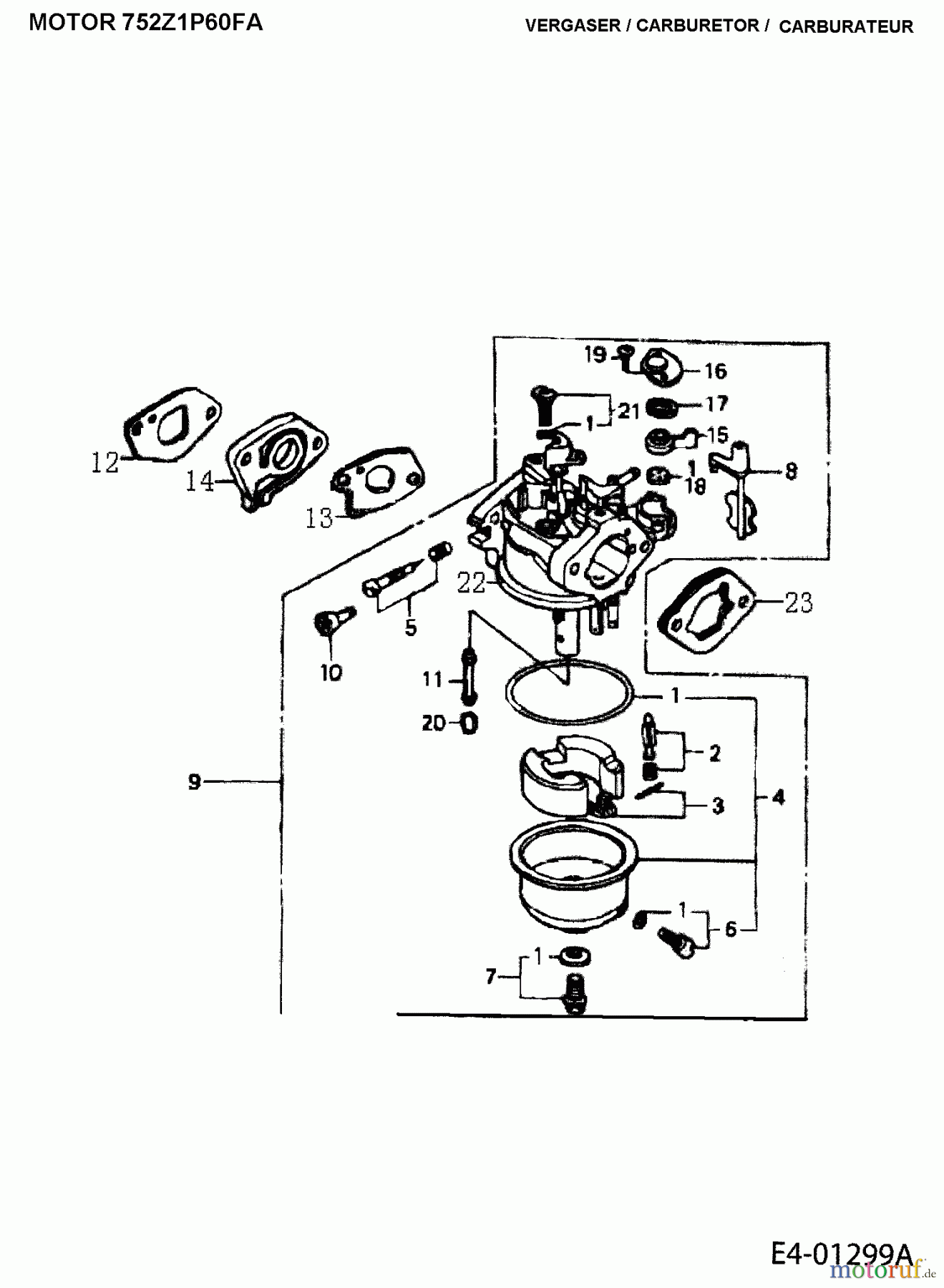

MTD-Engines MTD vertical 1 P 60 FA 752Z1P60FA (2005) Carburetor
PosArticle NumberDescription
1 092.49.139GASKET SET
2 092.49.140FLOAT VALVE SET
3 092.49.141FLOAT-SET
4 092.49.142FLOAT CHAMBER SET
5 092.49.143PILOT SCREW SET
6 092.49.144DRAIN SCREW SET
7 092.49.145SCREW SET
8 092.49.146CHOKE SET
9 092.49.147CARBURETOR ASSY
10 092.49.148THROTTLE ADJUSTING SCREW
11 092.49.149JET,MAIN
12 092.49.150INSULATOR PACKING A
13 092.49.151INSULATOR PACKING B
14 092.49.152CARBURETOR INSULATOR
15 092.49.153ARM-ROCKER
16 092.49.154VALVE SETTING PLATE
17 092.49.155VALVE ADJUSTMENT SPRING
18 092.49.156VALVE PACKING
19 092.49.157SCREW
20 092.49.158PILOT JET SET
21 092.49.159SCREW
22 092.49.160CARBURETOR BODY
23 092.49.161AIR CLEANER STEEL PAD
