Petrol mower 23052B (2011) Basic machine Spareparts

TENSION WASHER (ALL S/B MODELS

Article Number:
R+G18.4-03
Pos:
55
DINNORM:
R+G18.4-03
Zusatztext DE:
Keine Beschreibung verfügbar !
Description:
"23846, 23847, 23848, 24874, 23624,
Modell Year:
Interceptor / 2011
no longer available

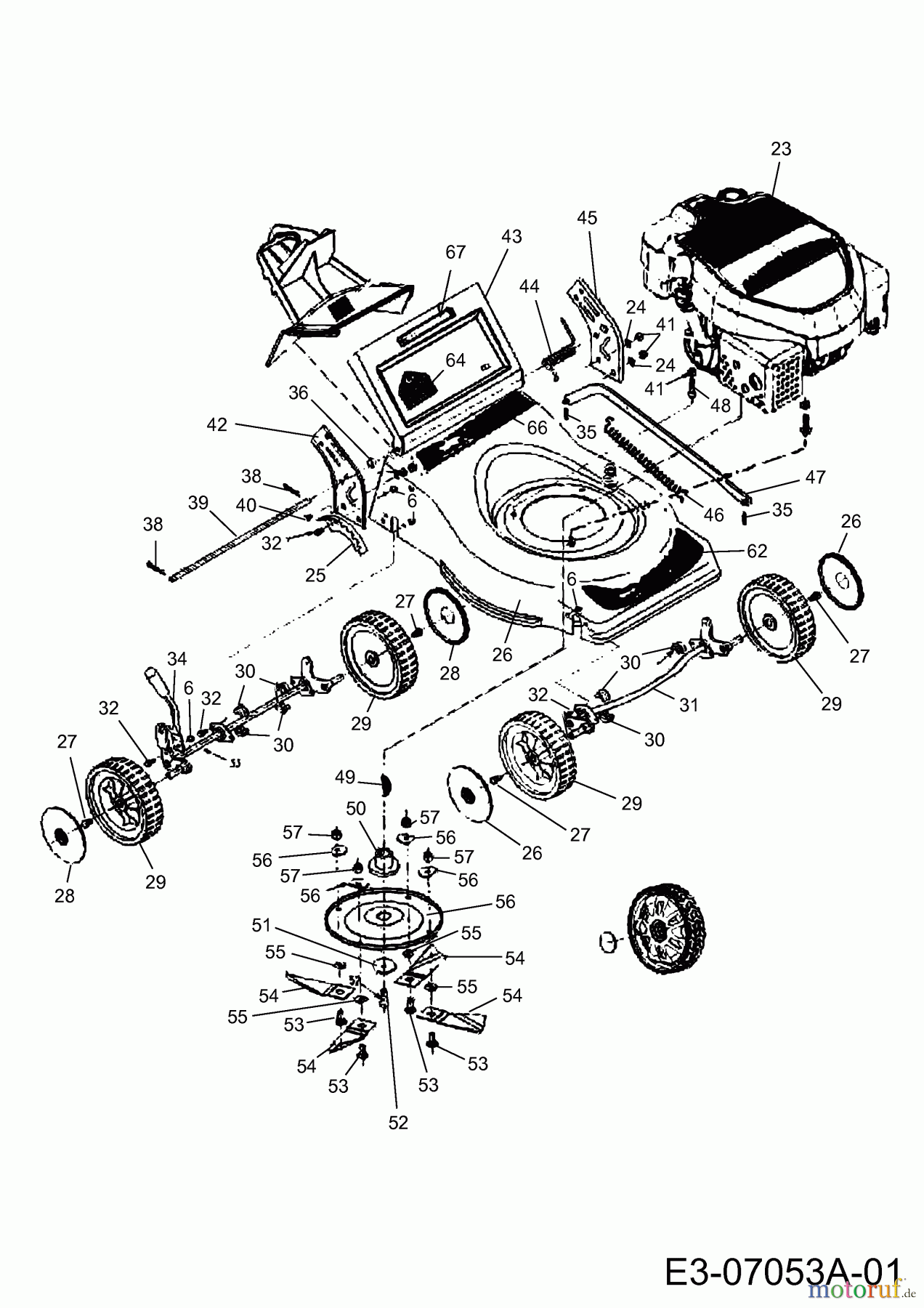

Petrol mower Interceptor 23052B (2011) Basic machine
PosArticle NumberDescription
6 R+GB6182-6NUT NYLOC(ALL S/B MODELS)
23 R+L04080129ROVER i5000 LCOWL 1P65FA 15
24 R+GB97.1-8WASHER FLAT 8MM(ALL S/B MODELS
25 R+G1810038RACK HEIGHT ADJ.
26 G18.3A-R1
27 R+GB5787-816BOLT WASHER HEAD HEX M8 X16MM
28 G1801001
29 R+G1801000WHEEL 7"X1.75" S/B MODELS
30 R+G18-01BEARING NYLON (ALL S/B MODELS)
31 R+G1810032SHAFT FRONT ASSEMBLY
32 R+GB5787-616BOLT FLANGE HEX HD M6X16MM(ALL
33 R+G1810044AXLE ASSY.REAR
34 R+G1810036LEVER CUTTING HEIGHT ADJ.
35 GXSZ56-1-17
36 R+G1810057SPACER SLEEVE
38 R+GXSS46-06R CLIP (ALL S/B MODELS)
39 R+GXSS46-04FLAP ROD(ALL S/B MODELS)
40 R+GB801-816BOLT SQ NECK M8X16MM(ALL S/B)
41 R+GB6182-8NUT NYLON LOCK M8(ALL S/B)
42 R+G18.8A-R1RIGHT BRACKET RED S/B
43 R+G1810010REAR DISCHARGE FLAP(ALL S/B)
44 R+G18-05FLAP SPRING (ALL S/B MODELS)
45 R+G18.7A-R1LEFT BRACKET RED S/B
46 R+G1810016CONBAR SPRING(ALL S/B MODELS)
47 R+G1810035STRAP,HT ADJUST
48 GB5787-840
2364 3
49 GB1099-46516WOODRUFF KEY (ALL S/B MODELS)
50 R+G1820002DISC BOSS (ALL S/B MODELS)
51 R+G18-04WASHER,NYLON1-1/2ODx5/16IDx1/8
52 R+G18-08BOLT HEX HD(ALL S/B MODELS)
53 R+G18.4-01BLADE BOLT (ALL S/B MODELS)
2437 4
54 R+G1800081BLADE (ALL S/B MODELS)
2437 4
55 R+G18.4-03TENSION WASHER (ALL S/B MODELS
2437 4
56 R+G18.4-02D PLATE (ALL S/B MODELS)
2437 4
57 R+GB6182-10NYLOC NUT (ALL S/B MODELS)
2437 4
58 R+G18.4-04ADISC (ALL S/B MODELS)
62 R+A16657LABEL INTERCEPTOR
64 A02571
66 R+A16658LABEL ROVER-REAR
2437 1
67 R+G1810012HANDLE REAR FLAP (ALL S/B)
68 R+G1810053SPACER FRONT WHEEL
