Cub Cadet XZ5 L107 17BAEACS603 (2023) Mowing deck Spareparts

WASH:THRST:0.630X1.599X0.062

Note: This article is 2 times installed in the device, the price is per piece!
Article Number:
736-3088
Pos:
32
Modell Year:
XZ5 L107 / 2304
6.09 €
for EU Including VAT, plus shipping
Qty:
Contact details Product safety
Article added to Cart!
yellow Will be ordered for you: Delivery time approx. 5 to 14 working days.

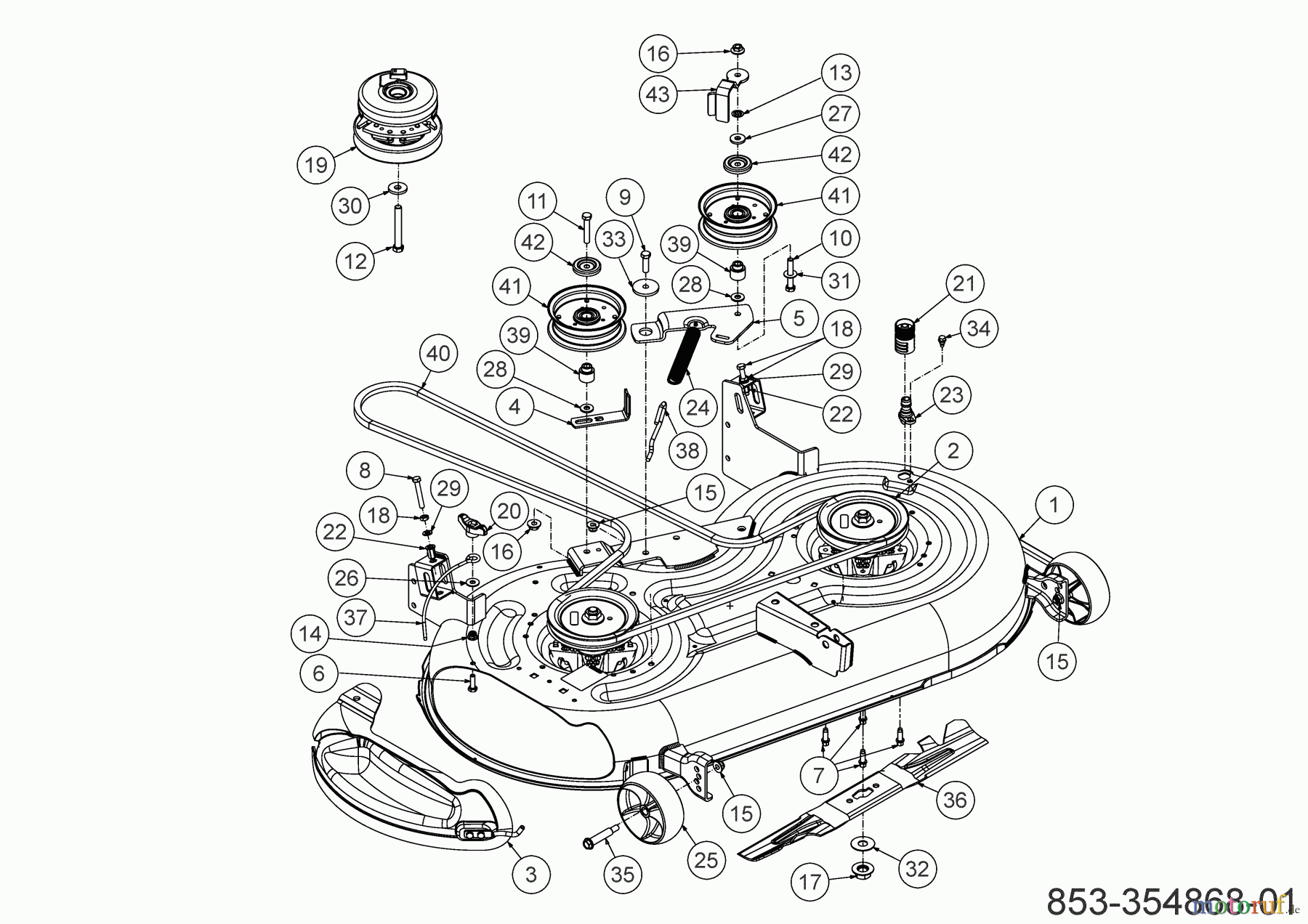

Cub Cadet Zero Turn XZ5 L107 17BAEACS603 (2023) Mowing deck
PosArticle NumberDescription
1 603-08693637DECK ASM SHELL
2 618-09260SPDL ASM:PUL:6.3 DIA
3 631-05195APLUG ASM:MULCH:42/46
4 703-09583-SGUIDE ASSY-BELT
5 703-26741BRACKET IDLER PIVOT
6 Cub Cadet HHCS:5/16-18:1.00:GR5:STD710-0376HHCS:5/16-18:1.00:GR5:STD
7 Cub Cadet SCR:TT:5/16-18:0.88:HXINDWSH710-06322SCR:TT:5/16-18:0.88:HXINDWSH
8 710-07494THREADED BOLT 5/16-18 GR5
9 Cub Cadet SCREW HHCS:3/8-16:1.25:GR5:STD710-3005SCREW HHCS:3/8-16:1.25:GR5:STD
10 710-3011HHCS:3/8-16:2.25:GR5:STD
11 710-3096HHCS:3/8-16:2.00:GR8:STD
12 710-3157AHEX.SCREW HHCS:7/16-20:3.25GR5
13 Cub Cadet NUT:PUSH:3/8712-0229NUT:PUSH:3/8
14 Cub Cadet NUT:HEXFLGLK:5/16-18:GRN5:NYL712-04063NUT:HEXFLGLK:5/16-18:GRN5:NYL
15 Cub Cadet NUT:HEXFLGLK:3/8-16:GRN5:NYLON712-04065NUT:HEXFLGLK:3/8-16:GRN5:NYLON
16 Cub Cadet NUT:HEXFLGLK:3/8-16:GRF:TOPLK712-04217NUT:HEXFLGLK:3/8-16:GRF:TOPLK
17 Cub Cadet NUT:HEXFLG:5/8-18:GR2712-05134NUT:HEXFLG:5/8-18:GR2
18 Cub Cadet NUT:JAM:5/16-18:GR5712-3007NUT:JAM:5/16-18:GR5
19 717-05121CLUTCH ELECTRICAL PTO
20 Cub Cadet WING KNOB720-04122WING KNOB
21 721-04041ADAPER:WATER NOZZLE
22 728-05043RIVET NUT 5/16-18
23 731-07487NOZ:DECK WSH
24 732-05484EXTENSION SPRING .94X6.75
25 Cub Cadet WHEEL:DECK:BALL:5.0 DIA734-06305AWHEEL:DECK:BALL:5.0 DIA
26 736-0159WASH:FLAT:0.339X0.890X0.063
27 Cub Cadet WASHER:FLAT:0.380X1.015X0.135736-0258WASHER:FLAT:0.380X1.015X0.135
28 Cub Cadet WASH:FLAT:0.380 x0.880 x0.092736-0262WASH:FLAT:0.380 x0.880 x0.092
29 736-0264WASH:FLAT:0.320X0.640X0.064
30 Cub Cadet WASH:FL:0.440 x1.258 x0.164:HD736-0322WASH:FL:0.440 x1.258 x0.164:HD
31 736-05080WASHER-FLAT
32 736-3088WASH:THRST:0.630X1.599X0.062
33 Cub Cadet SPCR:SHLDR:0.380X0.855X0.200738-04162CSPCR:SHLDR:0.380X0.855X0.200
34 Cub Cadet SCR:SHLDR:0.348 X 0.183:TT738-04502SCR:SHLDR:0.348 X 0.183:TT
35 738-06694SCREW-SHOULDER
36 742-05177A-XBLADE:21.23"LG:EXTREME S-HAPE
37 747-06686ROD - MULCH PLUG SUPPORT
38 747-08710HOOK DECK SPRING
39 748-05037BSPCR:SHLDR:IDLR PIVOT
40 754-06134V-Belt
41 Cub Cadet PUL:IDLR:4.50" DIA756-05034APUL:IDLR:4.50" DIA
42 Cub Cadet CAP:PULLEY:HD783-08389CAP:PULLEY:HD
43 783-08619AKEEPER BELT 50" DECK
