Echo SRM-311U - String Trimmer/Brush Cutter, S/N:S75112001001 - S7511299999 Engine Cover, Fan Case, Clutch Spareparts

Kupplungsschuh SRM-3150/320/

Article Number:
16-A553-000000
Pos:
27
25.62 €
for EU Including VAT, plus shipping
Qty:
Contact details Product safety
Article added to Cart!
yellow Will be ordered for you: delivery time approx. 5 working days.

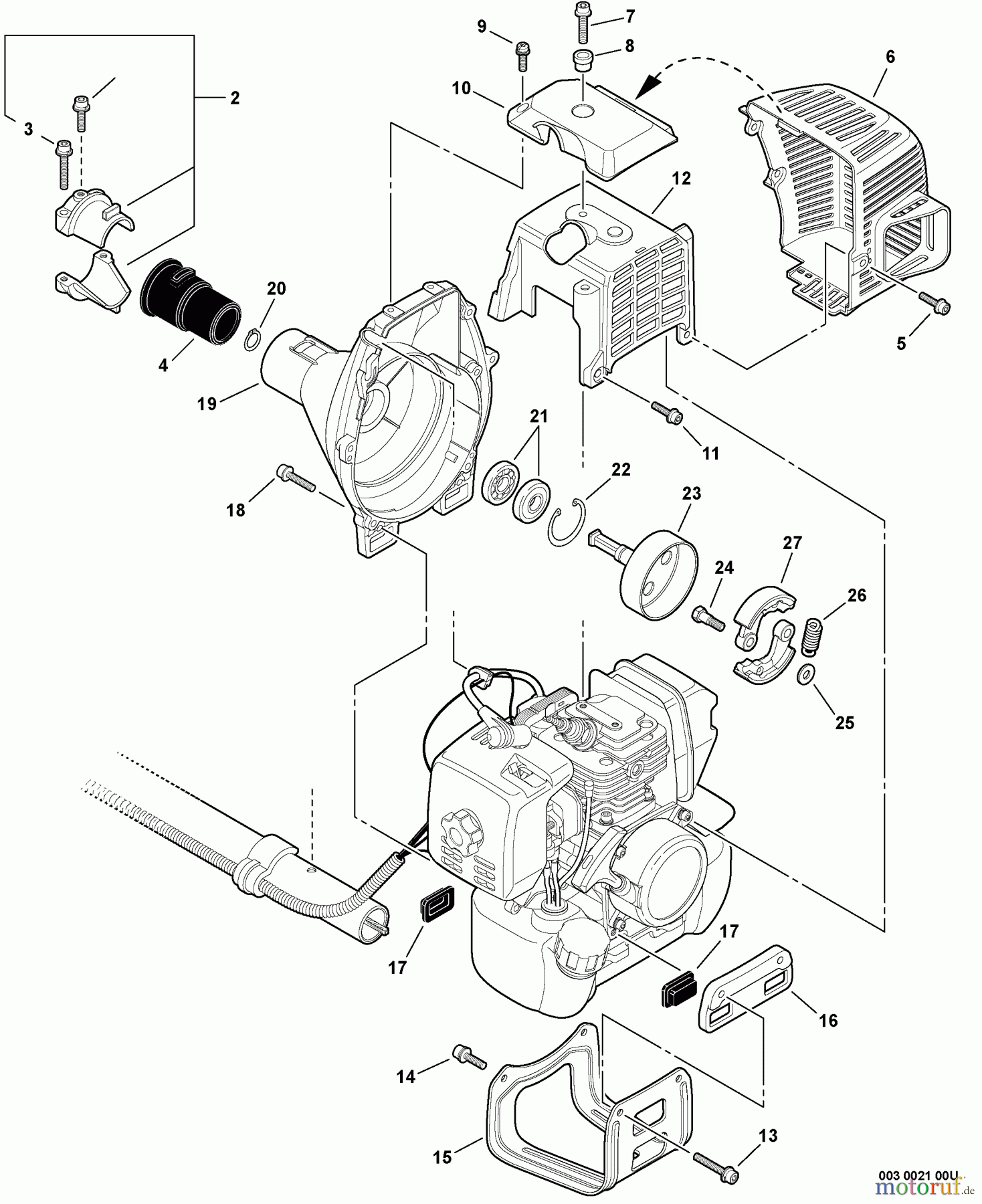

Echo Trimmer, Faden / Bürste SRM-311U - Echo String Trimmer/Brush Cutter, S/N:S75112001001 - S7511299999 Engine Cover, Fan Case, Clutch
PosArticle NumberDescription
1 16-900162-05012Bolzen EA-410
2 1661090355430
3 16-900162-05025Schraube 5x25 CS-5100/PB-46LN/
4 1661091055730
5 16-900106-05014Schraube M5x14 SRM-320/350
6 16A320000100
7 16-900106-05020Schraube 5x20 CS-2600/PB-6000/
8 16-V353-000020Buchse SRM-265/EA-410
9 16-900238-04014Schraube 4x14
10 1699999999999
11 16-900106-05012Schraube EA-410
12 16A160000370
13 16-900162-05020Schraube M5x20 PB-6000/-46LN/-
14 16-900162-05012Bolzen EA-410
15 1630511055830
16 16-131910-55430Tankhalterung
17 16-131920-55430Gummilager SRM-320/-350/SHR-
18 16-900162-05020Schraube M5x20 PB-6000/-46LN/-
19 16A172000210
20 16-900701-00012Seegerring außen 12mm
21 169405106001
22 16-900702-00028Seegerring, innen, 28mm
23 1617500555730
24 16-175046-46430Schraube SRM-3155, SRM-350ES
25 16-175048-05530Scheibe SRM-320/350/SHR-170SI/
26 16-175018-49932Kupplungsfeder SRM-3150/3155/
27 16-A553-000000Kupplungsschuh SRM-3150/320/
