Snapper RLT125G38AKV (80380) (GF) - 38" Lawn Tractor, 12.5 HP, Gear Drive, Series A Clutch, Brake & Steering Components Spareparts

Name: NUT, HEX FLNG, 1/2-13
Price: 5.25 EUR

NUT, HEX FLNG, 1/2-13

Article Number:

BS703918

Pos:

5.25 €

for EU Including VAT, plus shipping

Contact details Product safety

Article added to Cart!

Will be ordered for you: delivery time approx. 5 working days.

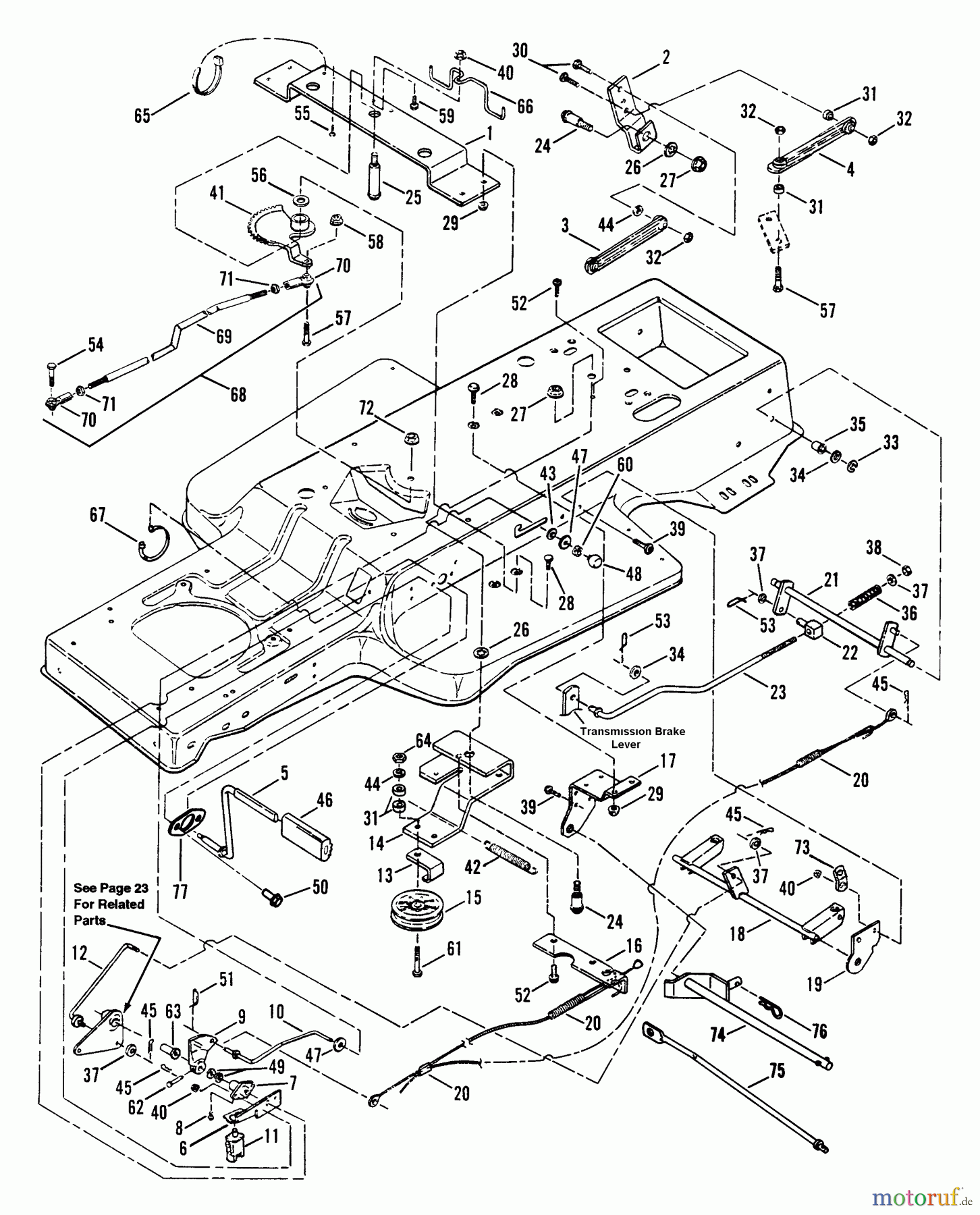

Snapper Rasen- und Gartentraktoren RLT125G38AKV (80380) (GF) - Snapper 38

Pos	Article Number	Description
1	BS7033627YP	BRACE, SECTOR GEAR
2	BS7033555YP	BELLCRANK, SHIFT LEVE
3	BS7024286YP	LINK, SHIFT LEVER
4	BS7025041YP	LINK, SHIFT LEVER, LW
5	BS7022743YP	PEDAL, CLUTCH / BRAKE
6	BS7033993YP	BRKT, BRAKE SWITCH
7	BS7052431YP	PIVOT/ FOOT SHAFT ASM
8	BS7014871SM
9	BS7053240YP	ASM,CLUTCH/BRAKE ARM
10	BS7024057YP	LATCH, PARK BRAKE
11	BS7022886YP	SWITCH, DP NO/NC SNAP
12	BS7022964YP	ROD, LIFT LINK
13	BS7033556YP	BELT GUIDE, YELLOW
14	BS7033557YP	ARM, IDLER, TRACTION
15	BS7023954YP	IDLER, FLAT, 3.47OD
16	BS7033595YP	EXTENSION, IDLER ARM
17	BS7033521YP	BRKT, REAR LIFT / PTO
18	BS7041369YP	REAR LIFT, 38/41
19	BS7033520YP	BRKT, DECK HANGER PIV
20	BS7024115YP	CABLE, CLUTCH / BRAKE
21	BS7041347YP	WELD, BRAKE PIVOT
22	BS7024586YP	SWIVEL, BRAKE LINK, P
23	BS7024832YP	ROD, BRAKE P930
24	BS7035849YP	(C) BOLT, SHLDR, 1/2C
25	BS7024604YP	BOLT, SHLDR, 1/2C X.8
26	BS7090509YP	ZAHNSCHEIBE
27	BS703918	NUT, HEX FLNG, 1/2-13
28	BS7090803YP	BOLT, 1/4-20X5/8
29	BS703233	MUTTER, 1/4-20, GR5
30	BS703871	KOPFSCHRAUBE,3/8-16X1.25
31	BS7024180YP	SPACER, .56 OD
32	BS703347	MUTTER, 3/8-16
33	BS703976	RETAINER, RING, 1/2
34	BS7091587SM	UNTERLAGSCHEIBE, .531X1.062X.1
35	BS7011016YP	LAGER, NYLON
36	BS7024381YP	SPRING, BRAKE
37	BS703878	WASHER, FLAT
38	BS703117	MUTTER
39	BS7091000SM	PHST, TORX
40	BS703409	MUTTER, 5/16-18, GR5
41	BS7052809
42	BS7024871YP	SPRING, IDLER P930
43	BS703297	RETAINER, GR5, 5/16
44	BS703454	LOCKWASHER, SPLIT 3/8
45	BS703300	PIN, 3/32 X 1.6
46	BS7012661YP	PEDALGUMMI
47	BS7023649YP	U.-SCHEIBE, 5/16 NYLON
48	BS7023188YP	KNOB BALL, 5/16
49	BS7027344SM	FW, .668X1.324X.098 Y
50	BS7091000
51	BS7091593SM	SICHERUNGSSPLINT SELBSTS.
52	BS703949	SCHRAUBE, 5/16-18.625
53	BS7091594SM	SICHERUNGSSPLINT 1/2 SELBSTS.
54	BS7090163YP	HHCS, NYLON PATCH
55	BS704060	SCREW,HEX, #10-24X.5
56	BS7031036YP	WASHER, THRUST
57	BS7091497SM	SECHSK.SCHR.3/8CX1-1/2GR
58	BS703333	MUTTER, 3/8-16
59	BS9357MA	SCHRAUBE, 5/16-18X .75WD
60	BS7023189YP	TOLERANCE RING, 5/16X
61	BS7090629YP	HHCS, 3/8C X2-1/4 GR5
62	BS7023645SM	PIN, CLEVIS
63	BS7022742YP	BEARING, FLANGE
64	BS7091302SM	HN, 3/8C GR5 YZ
65	BS7012080SM	CABLE TIE, 7.0
66	BS7026459YP	BELT GUIDE, TRAC. DRI
67	BS7014451YP	CABLE TIE
68	BS7052728
69	BS7022846YP	DRAGLINK
70	BS7027936SM	ROD END
71	BS7090482SM	HJN, 3/8F GR5 ZP
72	BS7090975YP	HCLN, 1/2C GR5 ZP
73	BS7033762YP	CLIP, SPRING, P930
74	BS7053230YP	WELD, STABILIZING SHA
75	BS7026764YP	BAR, STABILIZING LTG
76	BS7091310SM	HAIR PIN, #13
77	BS7063052YP	PIVOT WASHER STIFFENE
