Snapper W32122R - 32" Walk-Behind Mower, 12 HP, Variable Belt Drive, Commercial Lawn & Turf Series 2 Rear Deck Assembly (32 Only) Spareparts

Name: BOLT,HEX .25-20X0.62
Price: 5.25 EUR

BOLT,HEX .25-20X0.62

Article Number:

BS001X38MA

Pos:

5.25 €

for EU Including VAT, plus shipping

Contact details Product safety

Article added to Cart!

Will be ordered for you: delivery time approx. 5 working days.

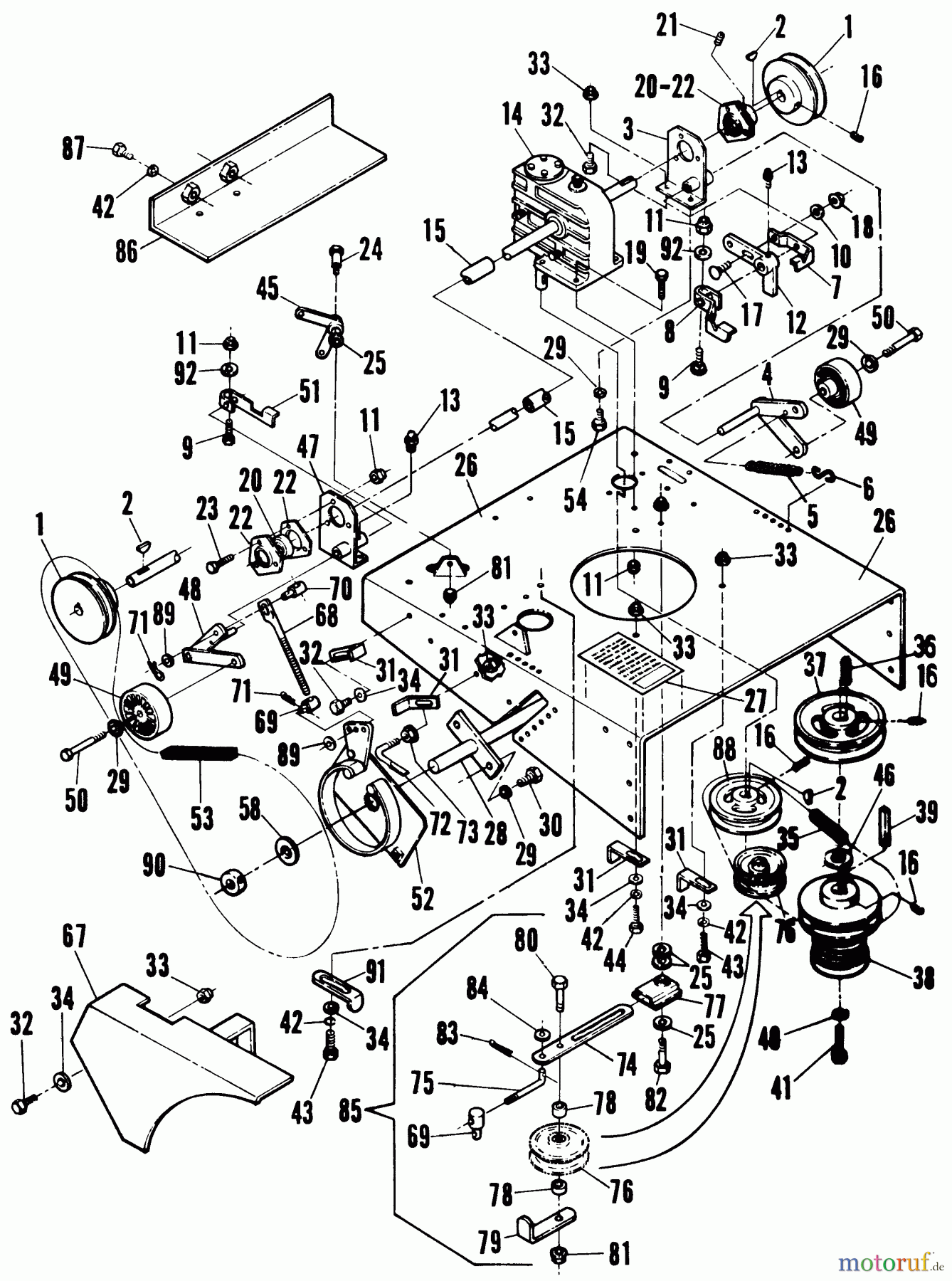

Snapper Rasenmäher für Großflächen W32122R - Snapper 32

Pos	Article Number	Description
1	BS7057582YP	(C) PULLEY, W/ SET SC
2	BS7015894SM	KEY, WOODRUFF, #605
3	BS7077845YP	(C) BEARING SUPPORT W
4	BS7077860YP	(C) TRACTION WELD, LH
5	BS7076439YP	(C) SPRING, EXTENSION
6	BS7076487YP	(C) HOOK, "S
7	BS7077858YP	#C) TAB, BLADE SWITCH
8	BS7077866YP	TAB, TRACT SWTCH, LH
9	BS7090947YP	RHSNB, 1/4C X1-3/8
10	BS7091294
11	BS7076978SM	HLN, 1/4C BZ
12	BS7077851YP	(C) WELD, BELLCRANK
13	BS703153	ZERK,GREASE FITTING
14	BS7076380YP	(C) GEAR BOX, COMP
15	BS7023442YP	(C) COVER, TRANS. SHA
16	BS5025061SM
17	BS1931317SM	BOLT - RD HD
18	BS703233	MUTTER, 1/4-20, GR5
19	BS7027230SM	(C) HHCS, 1/4C X1 GR5
20	BS7076504
21	BS7077679YP	(C) SETSCREW, #10F X1
22	BS7076505YP	(C) PLATE, FLANGE, BE
23	BS001X38MA	BOLT,HEX .25-20X0.62
24	BS7091031YP	BOLT, SHLDR
25	BS7091030YP	(C) BUSHING, MACH, 1/
26	BS7051881
27	BS7018956YP	(C) DECAL, CAUTION
28	BS7076377
28	BS7076332
29	BS703454	LOCKWASHER, SPLIT 3/8
30	BS7091304SM	SECHSK.SCHRAUBE, 3/8C X1 GR5 Y
31	BS7038513YP	(C) BELT GUIDE
32	BS7091318
33	BS703902	MUTTER, 5/16-18
33	BSNUT, NYloc Hex M8 - 1.25
34	BS7090692YP	FW, 5/16 X 7/8 X .083
6	BS7090517SM	FW, .438X1X.084 YZ
35	BS7019203YP	BELT, VARIABLE SPEED
36	BS7091033YP	(C) KEY, SQUARE, 1/4X
37	BS7076398
38	BS7019217
39	BS7091032YP	(C) KEY, SQUARE, 1/4X
40	BS704007	LCKWSHR,7/16,SPLIT RE
41	BS7091028YP	HHCS, 7/16F X2-1/4
41	BS7091029YP	CPSCW, M10-1.5 X .55
42	BS7090187SM	SLW, .318X.583X.078 Z
42	BS7090118
43	BS7090669YP	HHCS, 5/16C X1-3/4 GR
43	BS7077692YP	(C) HHCS, M8X1.25X25
43	BS7090967YP	(C) HWST, 3/8C X1-1/4
44	BS703177	HHCS
44	BS7076973
44	BS7091055YP	(C) BOLT, TAP, 5/16C
45	BS7047965YP	(C) BELLCRANK WELD.
46	BS7023747YP	BUSHING, MACH, 1
47	BS7077846YP	(C) BEARING SUPPORT W
48	BS7077859YP	(C) TRACTION WELD, RH
49	BS7077855YP	(C) PULLEY, IDLER
50	BS7090164YP	HHCS, 3/8F X1-1/2 GR5
51	BS7023294YP	(C) TAB, TRACTION SWI
52	BS7076339
52	BS7076340YP	(C) BRAKE, LT, PTD
53	BS7076497YP	(C) BELT, WHEEL DRIVE
54	BS703237	CAPSCREW, 3/8-16X.75
58	BS7076508YP	(C) SPACER, PLATED
67	BS7076368YP	(C) FENDER, PTD, RH
67	BS7076369YP	(C) FENDER, LH
68	BS7076431YP	(C) LINKAGE, FORWARD
69	BS7076434YP	(C) SWIVEL, ADJ, SHOR
70	BS7076486YP	(C) SWIVEL, ADJ, LONG
71	BS7076988YP	(C) HAIR PIN, 1-9/16
72	BS7076446YP	(C) SCRAPER
73	BS703409	MUTTER, 5/16-18, GR5
74	BS7038464YP	(C) BAR, SLIDE
75	BS7076432
76	BS7019078YP	PULLEY, IDLER
77	BS7040603YP	(C) SLIDE WELD.
78	BS7019077YP	(C) SPACER, 1.00 OD X
79	BS7023284YP	(C) BELT GUIDE
80	BS7090796YP	HHCS, 3/8C X2-1/2
81	BS703333	MUTTER, 3/8-16
82	BS7091497SM	SECHSK.SCHR.3/8CX1-1/2GR
83	BS703312	PIN, COTTER, 3/32X.75
84	BS703350	U-SCHEIBE, 5/16
85	BS7057555YP	(C) SLIDE ASSY, V.S.
86	BS7047947YP	(C) BELT SHIELD WELD.
87	BS7090209YP	HHCS, 5/16C X1 GR2 ZP
88	BS7019222YP	(C) PULLEY, TRANSMISS
89	BS7090188
90	BS7077000YP	(C) COLLAR, CLAMP, 7/
91	BS7032884YP	(C) BELT GUIDE
92	BS7091004
