Toro 20487 (SR-21OSBB) - Super Recycler Mower, SR-21OSBB, 2001 (210000001-210999999) HOUSING, HANDLE BRACKET AND WHEEL ASSEMBLY Spareparts

RECYCLER COVER ASM

Article Number:
TR100-8775
Pos:
13
82.22 €
for EU Including VAT, plus shipping
Qty:
Contact details Product safety
Article added to Cart!
yellow Will be ordered for you: delivery time approx. 5 working days.

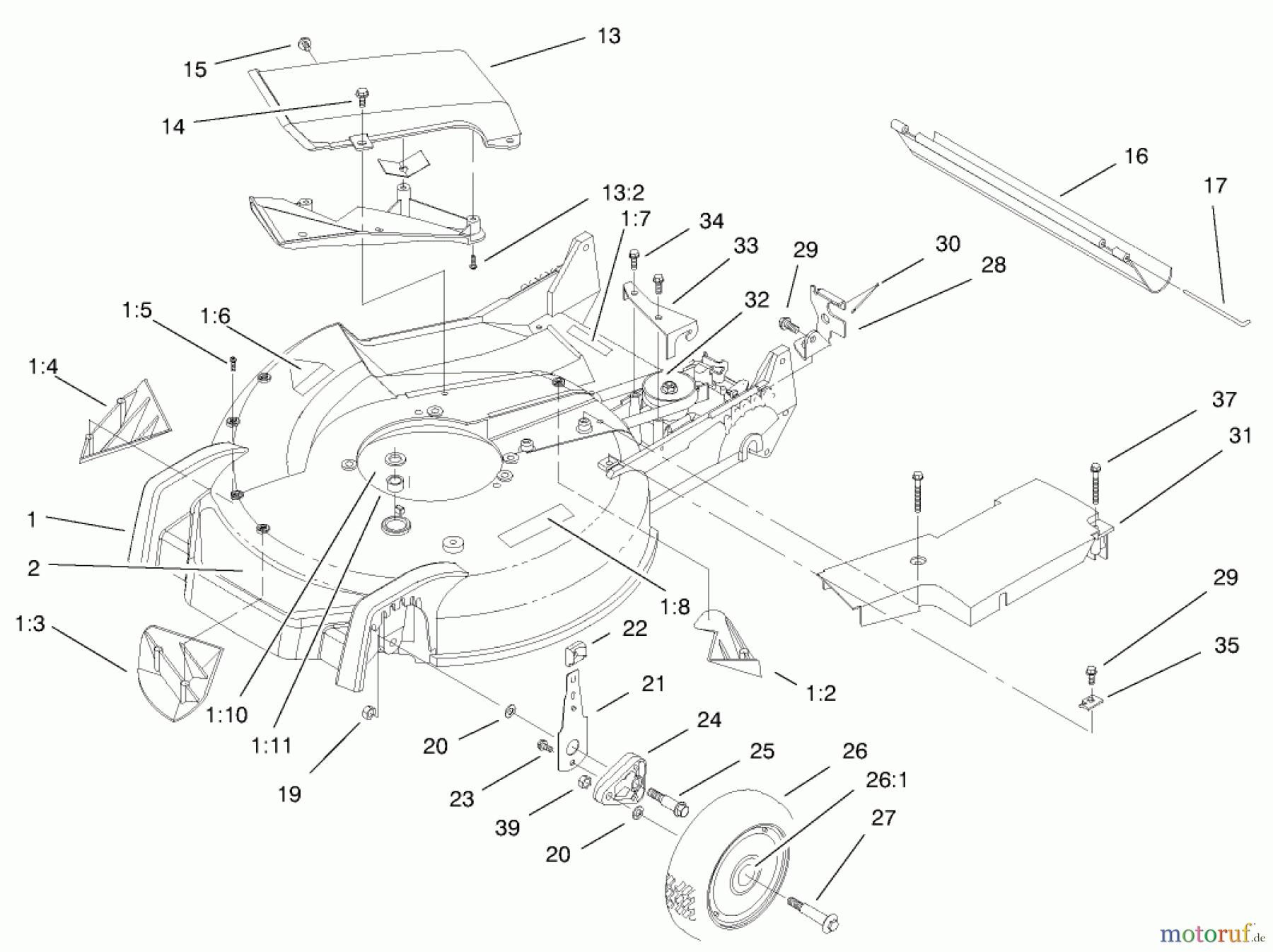

Toro Neu Mowers, Walk-Behind Seite 1 20487 (SR-21OSBB) - Toro Super Recycler Mower, SR-21OSBB, 2001 (210000001-210999999) HOUSING, HANDLE BRACKET AND WHEEL ASSEMBLY
PosArticle NumberDescription
1 TR98-8702HOUSING
1:2 TR92-1750Deflektor
1:3 TR92-1720Deflektor
1:4 TR92-1730Deflektor
1:5 TR32144-111SCREW-PPH
1:6 TR43-8480DECAL-DANGER
1:7 TR99-6018DECAL-WARNING
1:8 TR104-8589Klebeschild
1:10 TR70-1160WASHER
1:11 TR68-9780Lager
2 TR99-6010DECAL-DECK
13 TR100-8775RECYCLER COVER ASM
13:2 TR32144-111SCREW-PPH
14 TR46-6811Schraube
15 TR46-6810Schraube
16 TR112-9989SHIELD-TRAILING
17 TR33-3208ROD-SHIELD
19 Toro NUT-LOCKTR3296-6NUT-LOCK
20 Toro ScheibeTR40-1940Scheibe
21 TR66-0541Einstellhebel
22 TR25-7740Hebelknopf
23 TR32144-85Schraube
24 TR66-0580RADSCHENKEL
25 Toro SchraubeTR66-0560Schraube
26 TR98-7130WHEEL ASM
26:1 Toro BuchseTR27-6250Buchse
27 Toro BOLT-SHOULDERTR92-1057BOLT-SHOULDER
28 TR82-5680-03Halterung
29 TR32144-70Schraube
30 TR46-7030RETAINER-CABLE
31 TR98-1502DISCONTINUED
32 TR62-6673Getriebe Kpl.
33 TR62-4320-03BRACKET-GUIDE, BELT
34 TR49-2040Schraube
35 TR62-3720CLAMP-CABLE
37 TR37-7260Schraube
39 Toro NUTTR603773NUT
