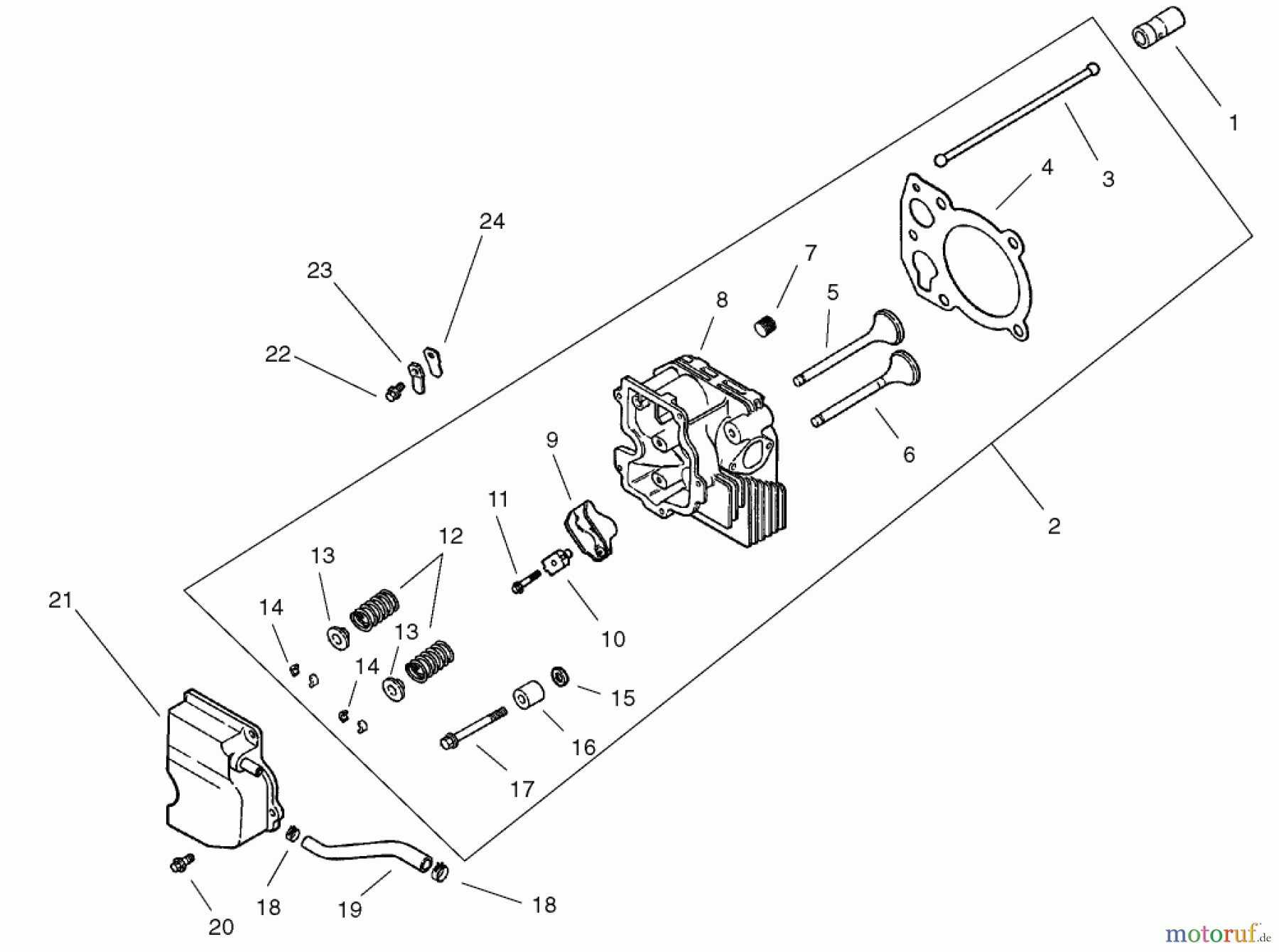

Toro 74601 (Z17-44) - Z17-44 TimeCutter Z Riding Mower, 2001 (210000001-210999999) HEAD / VALVE / BREATHER ASSEMBLY KOHLER CV 490-27503 Spareparts

Name: CAP, VALVE SPRING
Price: 19.74 EUR

CAP, VALVE SPRING

Article Number:

KH2517328-S

Pos:

19.74 €

for EU Including VAT, plus shipping

Article added to Cart!

Will be ordered for you: delivery time approx. 5 working days.

Pos	Article Number	Description
1	KH2535101-S	USE 25 351 04-S KIT
	KH1275594-S	KIT, CYLINDER HEAD
3	KH1241105-S	ROD, PUSH
4	KH1204110-S	GASKET, CYLINDER HEAD
5	KH1201701-S	VALVE, INTAKE
6	KH1201601-S	VALVE, EXHAUST
7	KH2513960-S	PLUG, CTSK PIPE 1/8"
8	KH1275597-S	KIT, CYLINDER HEAD
9	KH2518601-S	ARM, ROCKER
10	KH1259903-S	PIVOT, ROCKER ARM
11	KHM-640034-S	SCREW, FLG M6X1.0X34
12	KH1208934-S	SPRING, VALVE
13	KH2517328-S	CAP, VALVE SPRING
14	KH1275503-S	KIT, RETAINER
15	KH1246805-S	WASHER, FLAT 13/32"
16	KH1211213-S	SPACER, HEAD BOLT EXHAUST PORT
17	KH2008602-S	SCREW, CYLINDER HEAD (M10 X 80
18	KH2523731-S	CLAMP, HOSE
19	KH1232603-S	HOSE
20	KH25086396-S	SCREW, THREAD FORMING
21	KH12755102-S	KIT, VALVE COVER
22	KHM-545010-S	SCREW, FLG THD FRM M5X.8X10
23	KH6601804-S	RETAINER, REED
24	KH1240202-S	REED, BREATHER
	KH1201702-S	VALVE, INTAKE (.25 MM)
	KH1201602-S	VALVE, EXHAUST (.25 MM)
	KH1204101-S	GASKET, CARBURETOR
	KH1204102-S	GASKET, AIR CLEANER BASE
	KH1204103-S	GASKET, EXHAUST MANIFOLD
