Toro 74832 (ZX5450) - TITAN ZX5450 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999) LH HYDRO ASSEMBLY NO. 115-2551 Spareparts

GEAR-14T

Article Number:
TR114-1690
Pos:
72
26.78 €
for EU Including VAT, plus shipping
Qty:
Contact details Product safety
Article added to Cart!
yellow Will be ordered for you: delivery time approx. 5 working days.

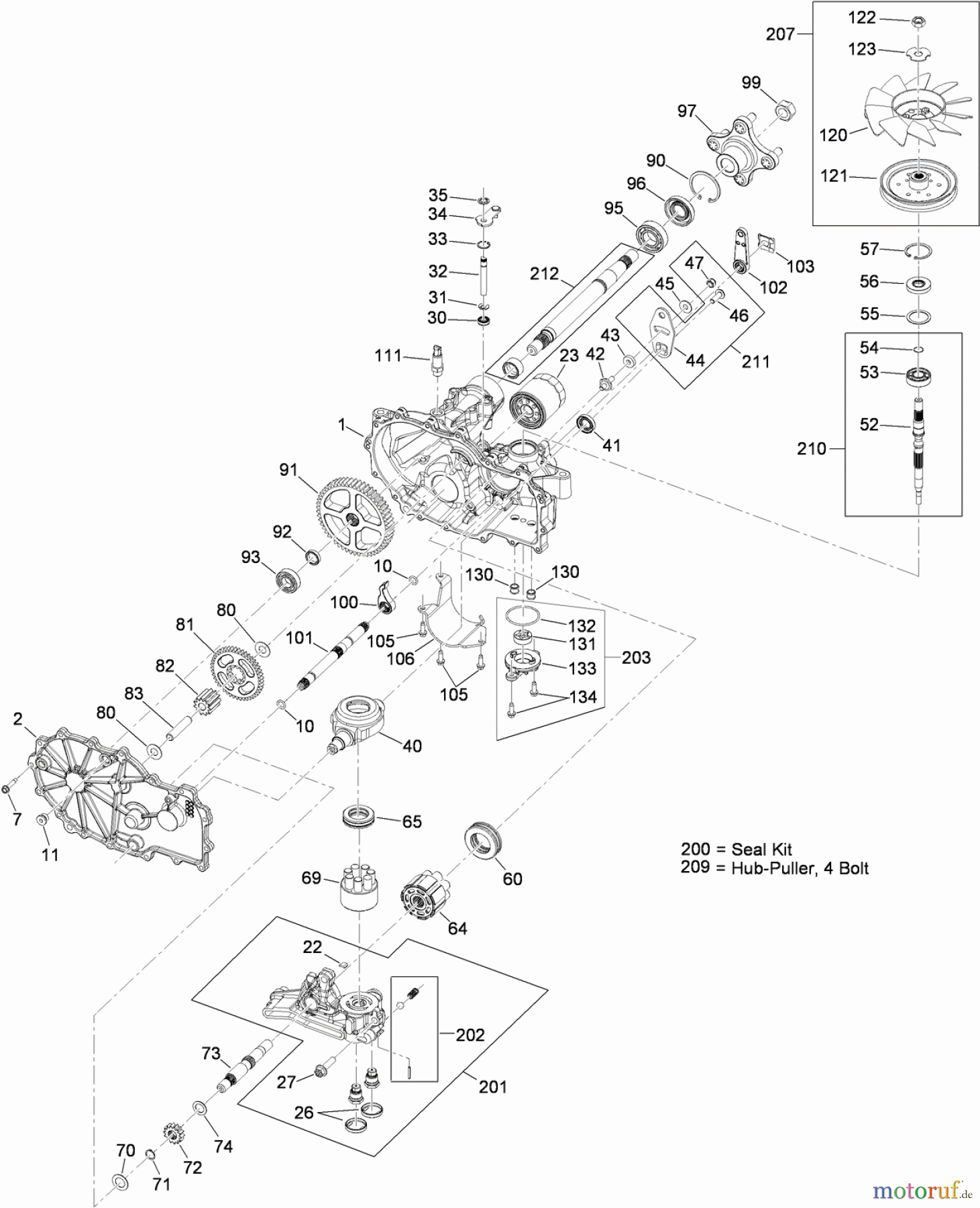

Toro Neu Mowers, Zero-Turn 74832 (ZX5450) - Toro TITAN ZX5450 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999) LH HYDRO ASSEMBLY NO. 115-2551
PosArticle NumberDescription
1 TR114-8471MAIN HOUSING KIT
2 TR114-8472SIDE COVER KIT
7 TR117-5359SCREW-HHF
10 TR114-1678O-RING
11 TR104-2189PLUG-THREAD, STRAIGHT
22 TR114-1680PLATE-BYPASS
23 TR109-3321ELEMENT-OIL FILTER, HYD
26 TR114-1683SEAL-PLUG
27 TR114-1684SCREW-HFHC
30 TR106-8676SEAL-LIP
31 TR106-8677Sicherungsring
32 TR114-1685ROD-BYPASS
33 TR106-8679RING-RETAINING, INT
34 TR107-2490Schaltarm
35 TR106-8681RING-RETAINING, EXT
40 TR104-5304SWASHPLATE-TRUNNION
41 TR104-5313SEAL-LIP
42 TR104-2116STEHBOLZEN
43 TR112-9853PUCK-FRICTION
44 TR106-8747ARM-CONTROL
45 TR114-8491WASHER
46 TR107-2488Schraube
47 TR105-1872NUT
52 TR114-1687SHAFT-INPUT
53 TR104-5311Kugellager
54 TR104-5307RING-RETAINING
55 TR104-5308Distanzscheibe
56 TR104-5310SEAL-LIP
57 TR104-5309Seegerring
60 TR114-1688BEARING-THRUST
64 TR114-1689MOTOR CYLINDER BLOCK KIT
65 TR94-6922BEARING-THRUST
69 TR110-8561PUMP BLOCK ASM
70 TR104-5339SCHEIBE
71 TR104-5340RING-RETAINING
72 TR114-1690GEAR-14T
73 TR114-1691SHAFT-MOTOR
74 TR104-5360WASHER
80 TR94-1933SCHEIBE
81 TR114-1692GEAR-45T
82 TR114-1693GEAR-11T
83 TR104-5329PIN-JACKSHAFT
90 TR104-2169RING-RETAINING
91 TR114-1694GEAR-54T
92 TR114-1695SPACER
93 TR114-1696BEARING-BALL
95 TR104-2143Kugellager
96 TR104-2144SEAL
97 TR109-5939HUB KIT
99 TR109-3536NUT-HUB
100 TR114-1697PAWL-BRAKE
101 TR117-5360
102 TR114-1699HANDLE-BRAKE
103 TR114-8450CLIP-RETAINING
105 TR104-2120SCHRAUBE
106 TR114-8473GUARD-FILTER, LH
111 TR109-3278ADAPTER-STRAIGHT
120 TR114-8453FAN-7.0
121 TR109-5938FAN AND PULLEY KIT
122 TR104-2168NUT-HEX
123 TR107-9122WASHER-SLOTTED
130 TR114-8455TUBE-CONNECTING
131 TR104-2122GEROTOR ASM
132 TR109-3540O-RING, SEAL
133 TR114-8457COVER-CHARGE PUMP
134 TR104-2120SCHRAUBE
200 TR109-3537COMPLETE SEAL KIT
201 TR114-8476LH CENTER SECTION KIT
202 TR114-8464CHARGE RELIEF KIT
203 TR114-8465CHARGE KIT
207 TR109-5938FAN AND PULLEY KIT
209 TR114-8467HUB-PULLER, 4 BOLT
210 TR117-5361
211 TR117-5362ARM CONTROL KIT
212 TR114-8470AXLE SHAFT KIT
