MTD untill 2011 JG 155 H 13AM793G678 (2006) Speed control, Pedals Spareparts

ROD:CONT:SPEED SELECTOR

Article Number:
747-04430
Pos:
12
Modell Year:
POLO 108/15.5 H / 2006 POLO 108/17 H / 2006 200 KLA / 2006 FORMULA 108/15.5 H / 2006 JG 155 H / 2006
DINNORM:
FINISH:701-01000 OR 701-010007
22.80 €
for EU Including VAT, plus shipping
Qty:
Contact details Product safety
Article added to Cart!
yellow Will be ordered for you: Delivery time approx. 5 to 14 working days.

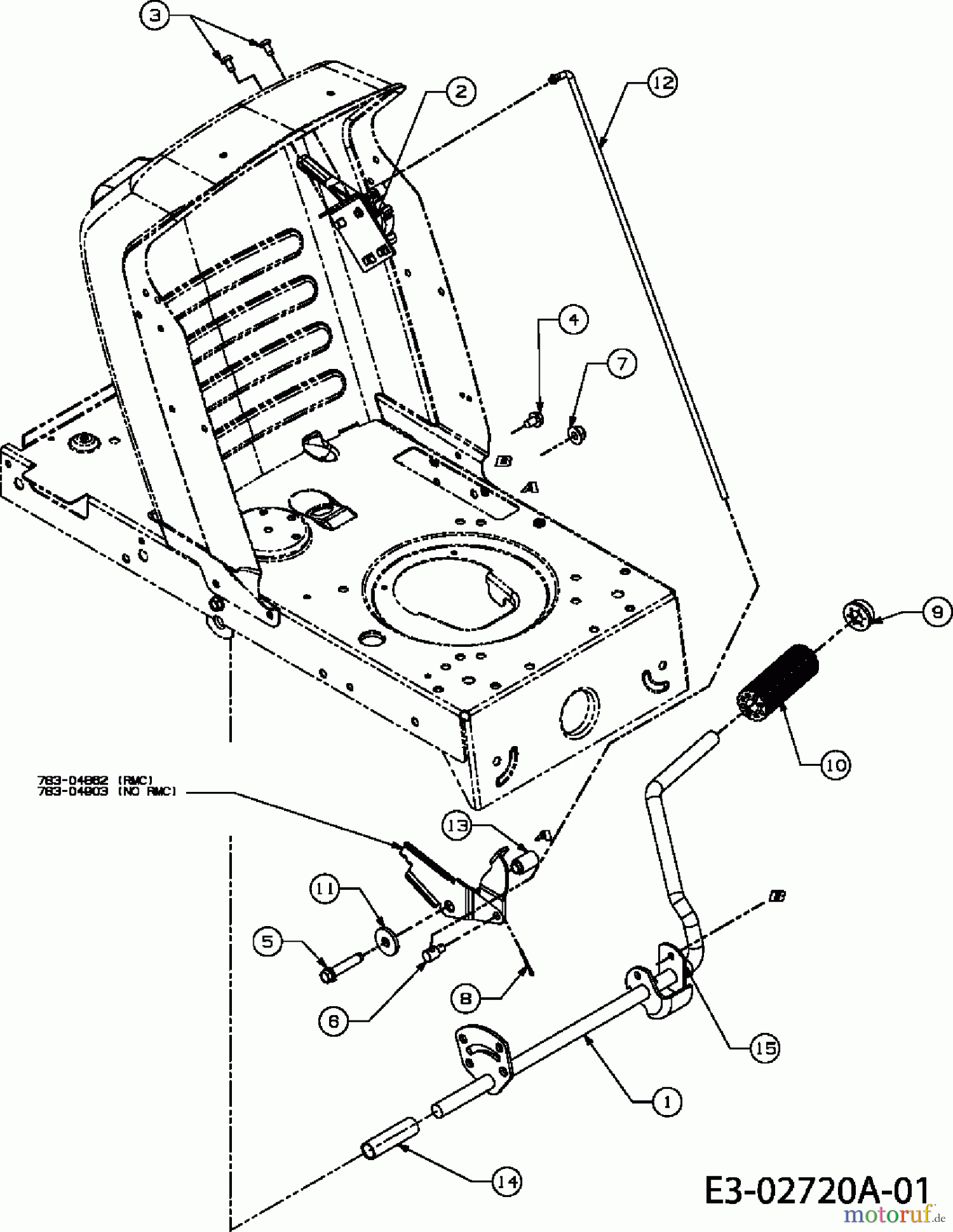

MTD untill 2011 Lawn tractors JG 155 H 13AM793G678 (2006) Speed control, Pedals
PosArticle NumberDescription
1 647-04054A-SPED ASM:DRIVE HYDRO
2 683-04226637CONT ASM:HYDRO
3 MTD untill 2011 SCR:TT:1/4-20:0.500:HXINDWSH710-0599SCR:TT:1/4-20:0.500:HXINDWSH
4 MTD untill 2011 SCREW:TT:5/16-18:0.625HXINDWSH710-0604ASCREW:TT:5/16-18:0.625HXINDWSH
5 710-1008SCR:TTSEMS:3/8-16:1.875:HXLWSH
6 MTD untill 2011 FERRULE-ADJ:1/4-20 x 1.00711-0736FERRULE-ADJ:1/4-20 x 1.00
7 MTD untill 2011 NUT:FLGLK:3/8-16:GRF:NYLON712-04065NUT:FLGLK:3/8-16:GRF:NYLON
8 MTD untill 2011 COTTER PIN 3/32 DIA X 1.00714-0111COTTER PIN 3/32 DIA X 1.00
9 MTD untill 2011 CAP726-0214CAP
10 MTD untill 2011 PAD:FOOT:4.0 LONG735-0239PAD:FOOT:4.0 LONG
11 736-0247WASH:FLAT:.406x1.250x.157:HD
12 747-04430ROD:CONT:SPEED SELECTOR
13 750-04465SPCR:FLG:.390X.671X1.095
14 750-0802SPCR:.640 ID X .76 OD X2.63 LG
15 783-04536637BRKT:PED:SUPT: LT-5
