Echo PPSR-2433 - Pole Saw / Pruner, S/N: 504000 - 999999 (Type 1E) Ignition, Starter, Clutch, Muffler Spareparts

Ignition, Starter, Clutch, Muffler PPSR-2433 - Echo Pole Saw / Pruner, S/N: 504000 - 999999 (Type 1E)

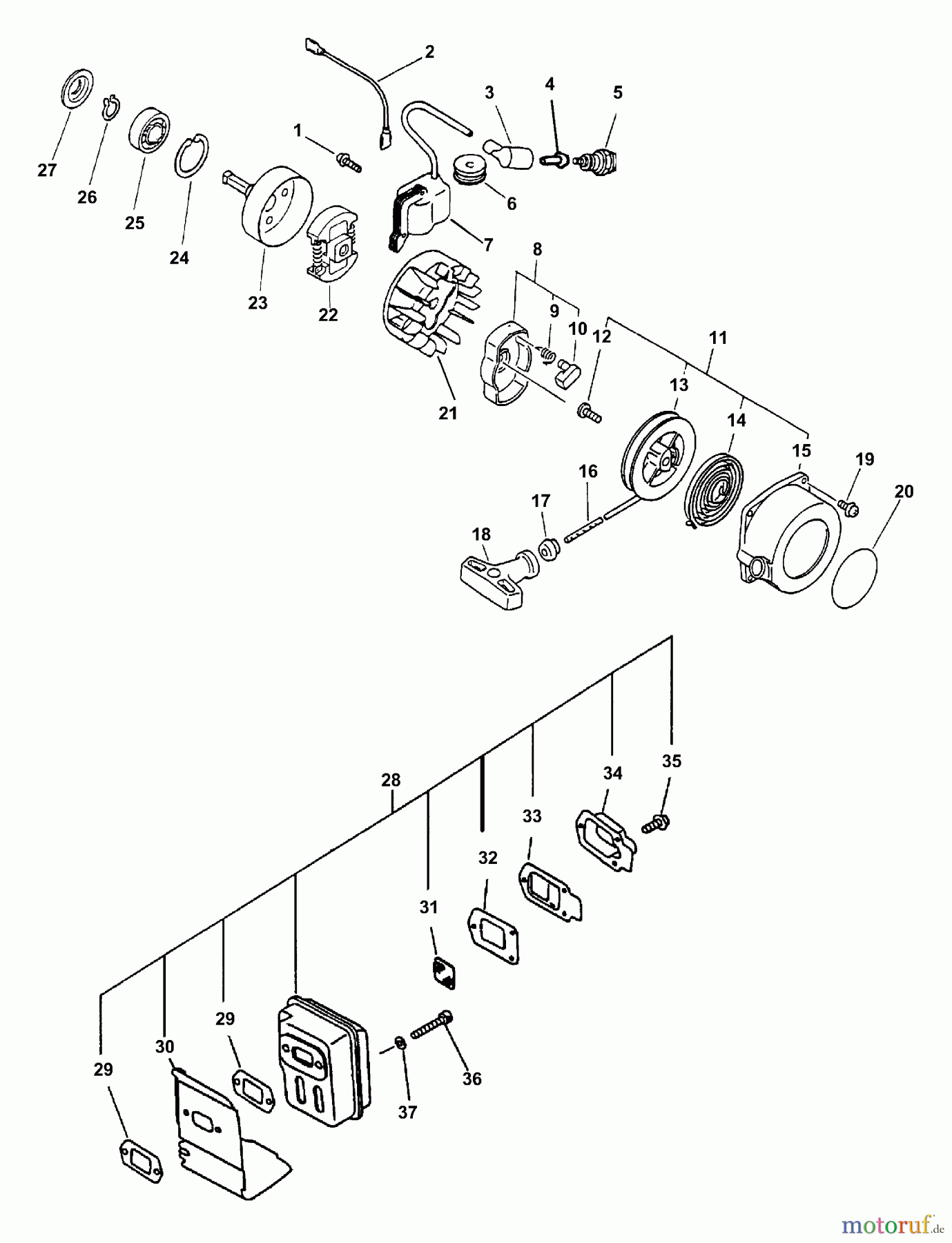

Echo Hochentaster PPSR-2433 - Echo Pole Saw / Pruner, S/N: 504000 - 999999 (Type 1E) Ignition, Starter, Clutch, Muffler
PosArticle NumberDescription
1 16-900162-04022Schraube (10)
2 16-V485-001080Kabel CS-310ES
3 16-159012-01620Zündkerzenkappe SRM-2010, CS-
4 16-159011-03432Kontaktfeder CS-2600/4200/PB-
5 1699944500071
5 16-159010-10230Zündkerze CS-2600/SRM-320/350/
6 16-150112-44330Gummidichtung PPT-2100,PPT-
7 16-156626-52730Zündspule HC-2410 ab Serie
8 16-177202-44331Starterklinke ES-1000 ab Ser.-
9 16-177234-12220Feder, Starterklinke RM-4000/
10 16-177218-44330Starterklinke SRM-2450/PB-
11 16-177200-42033Starter kpl. ES-2000/2100/
12 16-177236-44330Schraube CS-2600/ SRM-320/350/
13 16-177215-44430Seilscheibe SRM-2305/ES-2100/
14 Echo Starterfeder ES-2100/2400/HC-16-177220-42030Starterfeder ES-2100/2400/HC-
15 16-177232-42032Startergehäuse GT-2010 SRM-
16 1616
17 16-177227-42030Seilführung ES-2100/2400/HC-
18 16-177228-06530Startergriff ES-2100/2400/HC-
19 16-900163-04016Schraube
20 16X502000190
21 16-156801-09660Polrad HC-2410 ab 001868
22 16-175000-56831Kupplung SRM-220ES/T-226
23 16-175005-44331Kupplungstrommel GT-2150/T-226
24 16-900702-00032Seegerring, innen, 32mm
25 16-94054-06201Kugellager
26 16-900701-00012Seegerring außen 12mm
27 16-175053-04920Ring
28 1614580052631
29 16-V104-000160Dichtung, Auspuff PB-2400, GT-
30 16-145871-52130Auspuffschutz HC-2400
31 16-145862-40630Funkenschutzsieb SHR-170SI/
32 16-145866-42031Dichtung HC-2410/SRM-250/GT-
33 16-145876-42030Auslasstutzen, Auspuff ES-
34 16-145818-52130Auspuffabdeckung PPT-2400
35 16-900238-04010Schraube M4 x 10 ES-2400,PB-
36 16-900105-05055Schraube EA-410/SHR-170SI/T-
37 16-900600-00005Scheibe PB-500/452GS/DH2200ST
1699944440000
1699999999999
