Snapper RD2140 (2690774) - 40" Lawn Tractor, 21 HP, 4WD Hydro Drive, Rear Discharge, RMO, ACS, LT300 Series 40" Mower Deck - Belt, Idle Arm & Hitch Spareparts

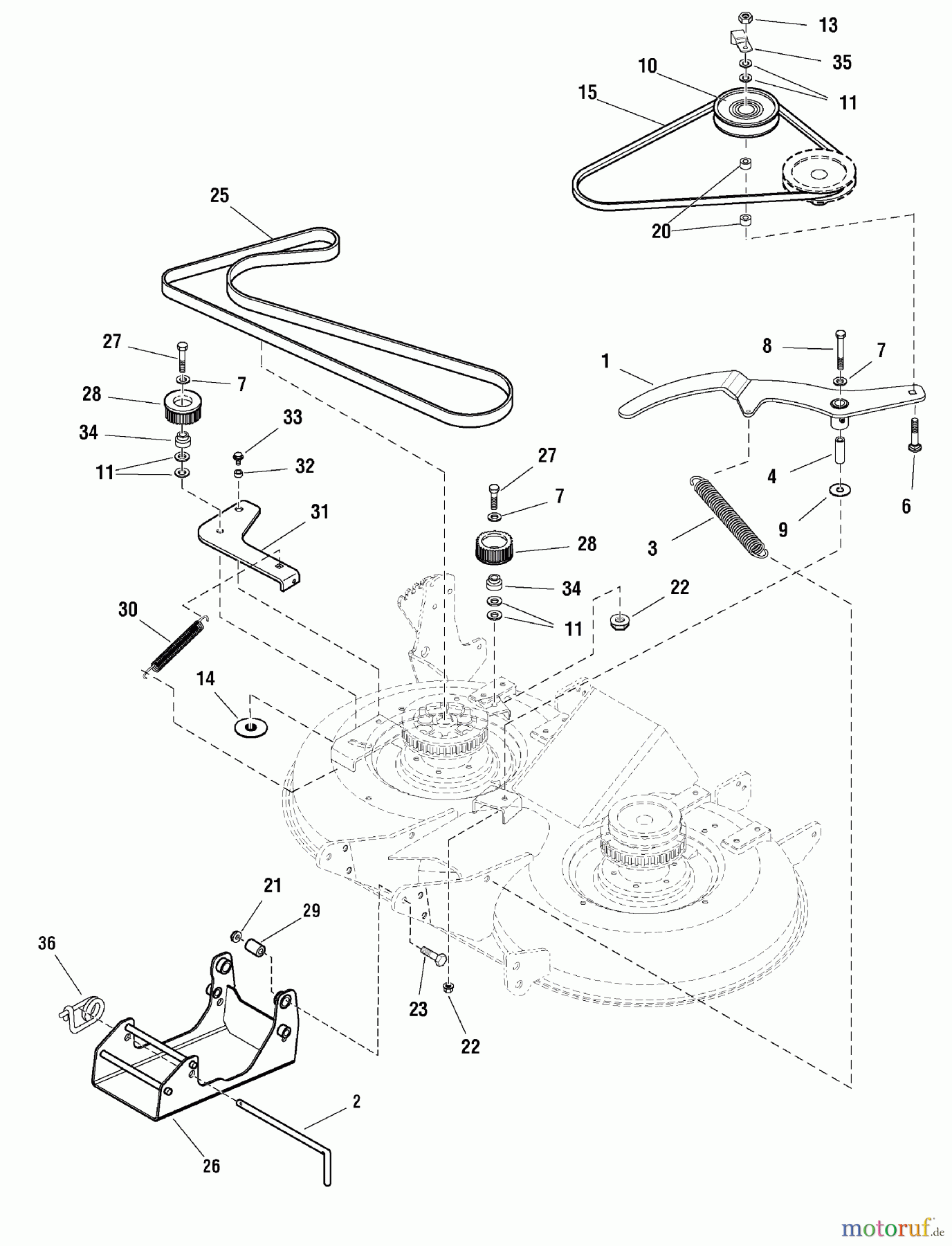

40" Mower Deck - Belt, Idle Arm & Hitch RD2140 (2690774) - Snapper 40" Lawn Tractor, 21 HP, 4WD Hydro Drive, Rear Discharge, RMO, ACS, LT300 Series

Snapper Rasen- und Gartentraktoren RD2140 (2690774) - Snapper 40
PosArticle NumberDescription
1 BS1734495SMIDLER ARM ASSY
2 BS1731414SMSTREBE-SPERRE 500DIA 9"
3 BS1715435SMFEDER , VERLANGERUNG 1
4 BS1657242SMDISTANSRING
6 BS1960615SMBOLT-RD HD SQ NK 3/8
7 BS1922755SMABZIEHER-SCHEIBE
8 BS1960614SMCAPSCREW-HEX HD 3/8-
9 BS1933263SMSCHEIBE - 0.438(0.451IDX1
10 BS2101096SMSPANNROLLE, 4.500OD 0.375
11 BS703878WASHER, FLAT
13 BS1919439SMNUT - HEX LOCK
14 BS1721425
15 BS1687403SMV-BELT REPL. KIT
20 BS2157081SMDISTANZRING,3/8X3/4X1/2
21 BS2860681SMMUTTER SELBSTSICH.
22 BS1928352SMNUT - HEX FLANGE
23 BS1921968SMSECHSK.SCHRAUBE HD 3/8-1
25 BS1724626SMBELT, TIMING
26 BS1737046ASMHITCH ASMY-50,54"
27 BS1960746SMSCREW-HEX HD FLANGE 3
28 BS1731892SMPULLEY-IDLER 3.22OD 0
29 BS1736018SMPIVOT
30 BS1674671SMSPRING-EXTN 0.750ODX
31 BS1726387ASMARM-IDLER 7GA BLAC
32 BS1666697SMSPACER
33 BS703949SCHRAUBE, 5/16-18.625
34 BS1719221SMHUB-0.390IDX.667+1.00
35 BS1719842ASMSTOP-BELT .135THK 1.0
36 BS703852PIN, 5/16 X 0.375
