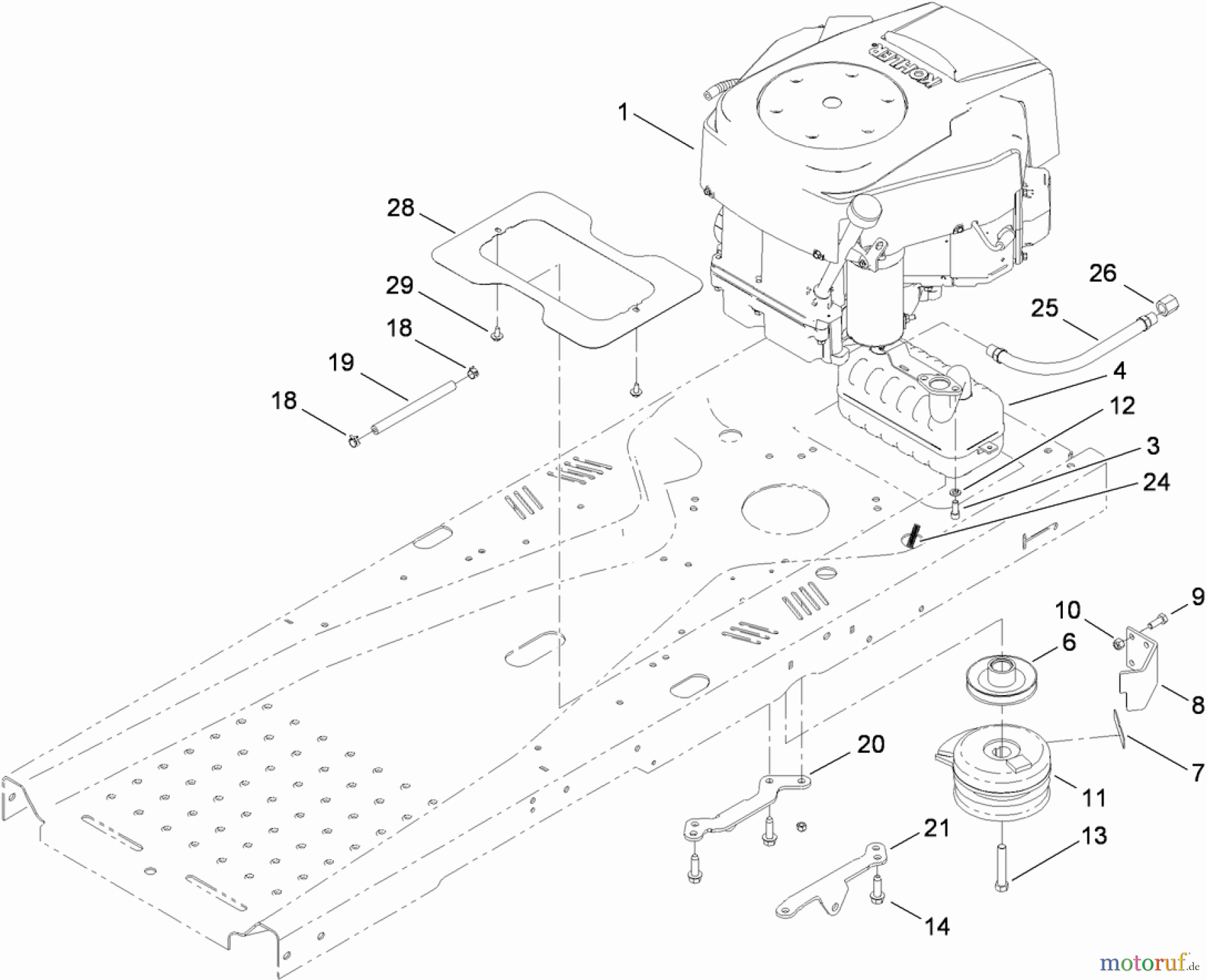

ENGINE AND CLUTCH ASSEMBLY 74399 (Z5020) - Toro TimeCutter Z5020 Riding Mower, 2009 (290000440-290999999)

Pos		Article Number	Description
1		TR
3		TR3274-10	Schraube
4		TR117-1271	MUFFLER-KOHLER TWIN
6		TR114-1622	PULLEY-ENGINE
7		TR112-4033	BUMPER-PAD
8		TR110-6896	STOP-CLUTCH
9		TR322-4	Schraube
10		TR3296-29	Mutter
11		TR110-6766	CLUTCH-ELECTRIC, PTO
12		TR3253-4	Federring
13		TR32121-1	Stift
14		TR32144-109	Schraube
18		TR2412-98	CLAMP-HOSE
19		TR107-0589	HOSE-FUEL
20		TR110-6798	SUPPORT-HYDRO, RH
21		TR110-6799	SUPPORT-HYDRO, LH
24		TR112-9849	TUBING-CONVOLUTED
25		TR82-4201	HYD HOSE ASM
26		TR288-10	Kappe
28		TR114-8544	SHIELD-HEAT
29		TR46-8560	SCREW-HHFTF
