Toro 74830 (ZX4800) - TITAN ZX4800 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999) MAIN FRAME AND FRONT CASTER WHEEL ASSEMBLY Spareparts
Start
Toro Neu
Mowers, Zero-Turn
74830 (ZX4800) - Toro TITAN ZX4800 Zero-Turn-Radius Riding Mower, 2010

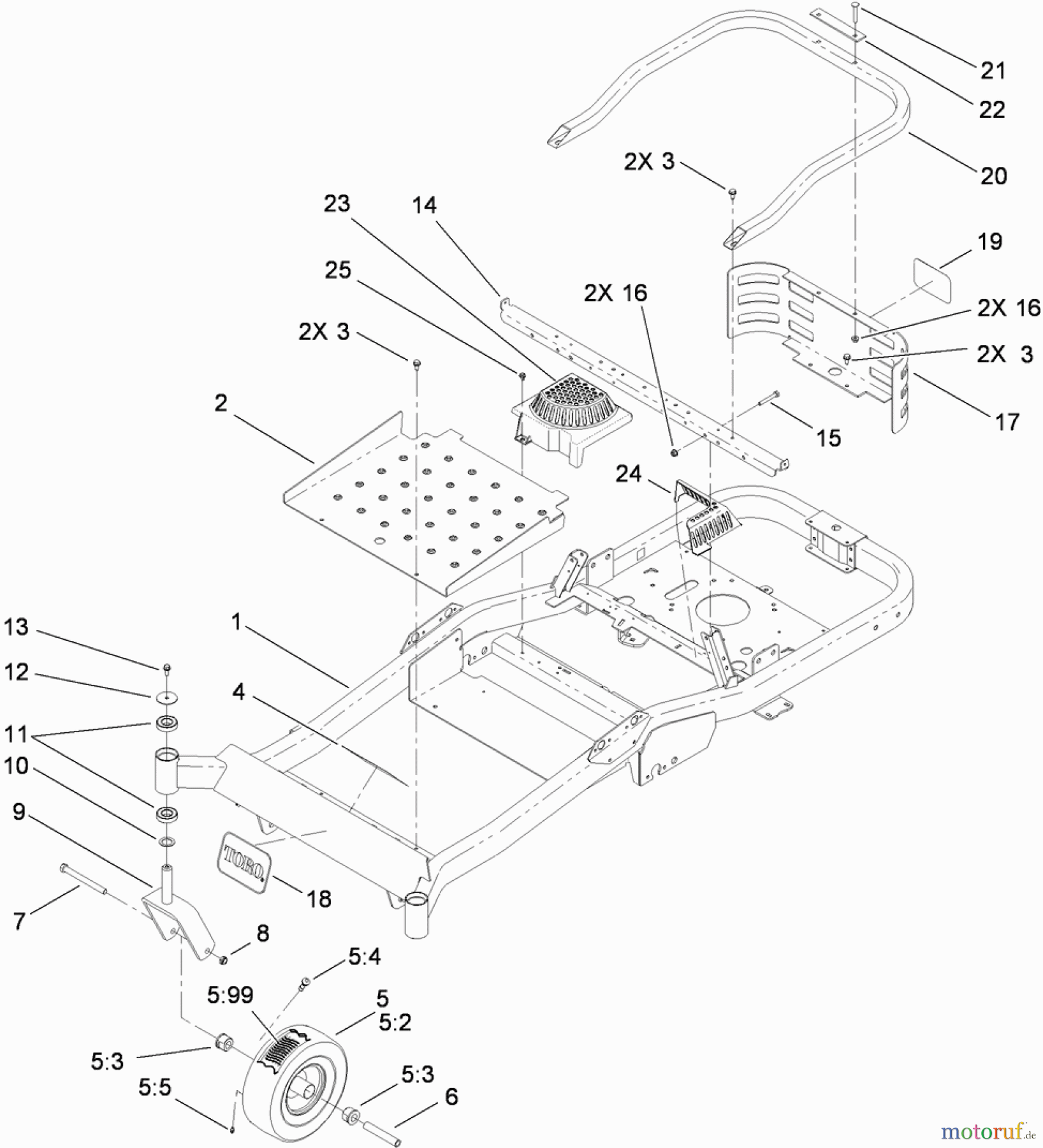

MAIN FRAME AND FRONT CASTER WHEEL ASSEMBLY
MAIN FRAME AND FRONT CASTER WHEEL ASSEMBLY 74830 (ZX4800) - Toro TITAN ZX4800 Zero-Turn-Radius Riding Mower, 2010 (310000001-310999999)
Pos
Article Number
Description
1
TR117-7356-01
FRAME ASM
2
TR115-2531-05
PAN-FLOOR
3
TR32144-70
Schraube
4
TR109-8965
DECAL-SAFETY
5
TR115-2554
TIRE AND WHEEL ASM (KENDA)
5:2
TR115-2557
TIRE-SMOOTH
5:3
TR114-1640
BUSHING-FLANGE
5:4
TR232-27
Ventil
5:5
TR302-5
Schmiernippel
5:99
TR117-1234
TUBE-INNER
6
TR104-3667
Radbuechse
7
TR3252-2
SCHRAUBE
8
TR3296-45
NUT-LOCK, NI
9
TR110-6634-01
CASTER FORK ASM
10
TR10-8110
Scheibe
11
TR109-3678
BEARING-BALL
12
TR109-3724
WASHER
13
TR3234-47
SCREW-HHF
14
TR115-2566-03
SUPPORT-SEAT
15
TR322-11
SCREW-HH
16
TR104-8300
Mutter
17
TR115-2632-03
GUARD-REAR, SHIELD
18
TR62-5550
Toro-Schild
19
TR105-8278
Klebeschild
20
TR115-2565-01
GUARD-REAR, TUBE
21
TR3230-6
SCREW-CARR
22
TR115-5061-01
PLATE-SPACER
23
TR117-1241
COVER-FAN, RH
24
TR117-1242
COVER-FAN, LH
25
TR46-8560
SCREW-HHFTF
