Wolf-Garten Esprit 40 E/A 4961006 Series A (2002) Handle Spareparts

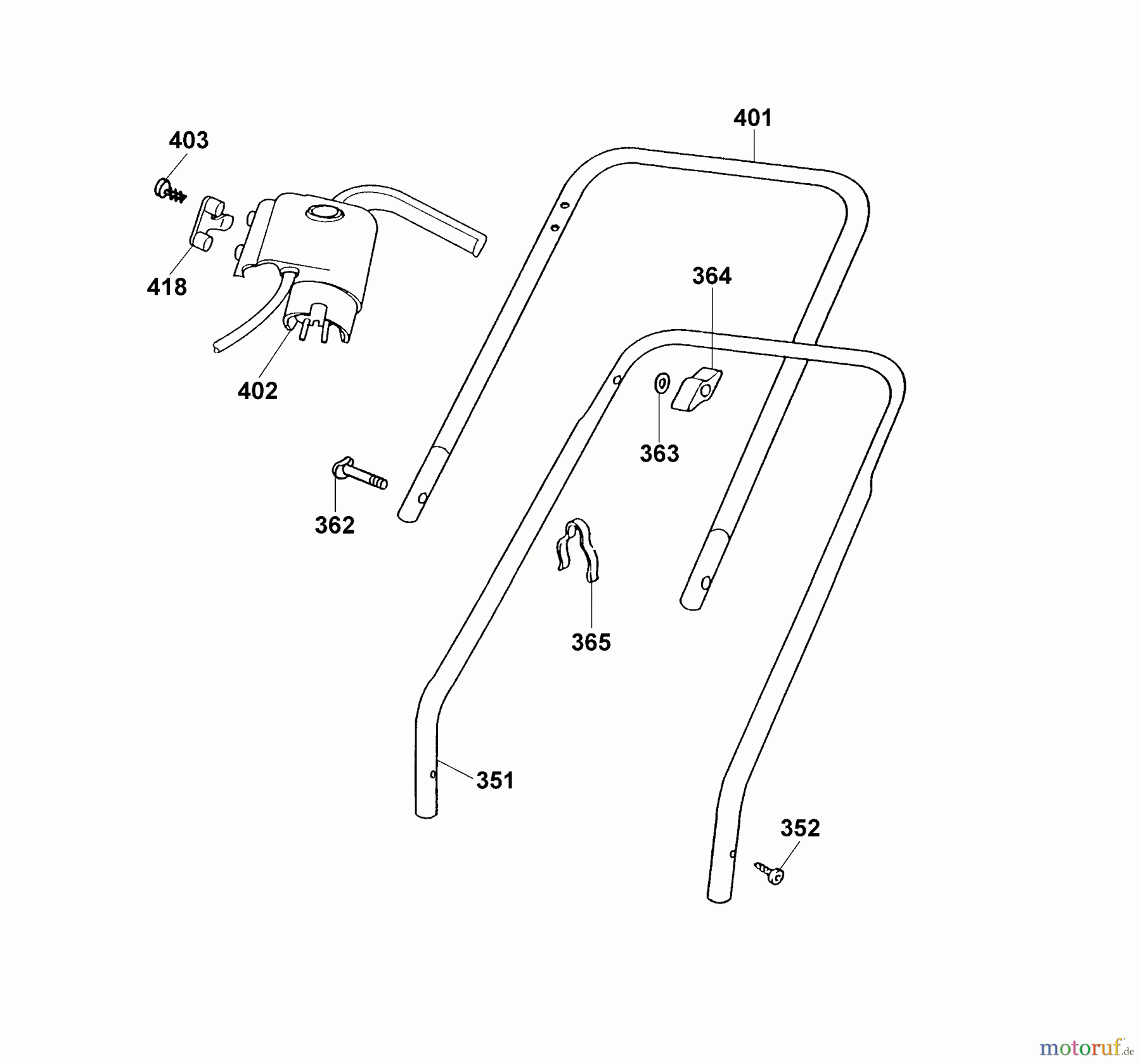

Handle 4961006 Series A (2002)
Pos | Article Number | Description | |
351 | 4961120 | LOWER HANDLEBAR | |
352 | 0015660 | SCREW | |
362 | 4901101 | SCREW | |
363 | 0017275 | WASHER, RECESSED | |
364 | 0016717 | WING NUT | |
365 | 4950307 | CABLE CLIP | |
401 | 4961023 | UPPER HANDLEBAR | |
402 | 4961051 | SWITCH CCS59 | |
403 | 0012883 | SCREW, PT KA 40 X 22 | |
418 | 4901325 | CABLE GUIDE | |
*** | 4961202 | ASSEMBLY INSTRUCTIONS ESPRIT | |
*** | 0054172 | INSTRUCTION MANUAL | |
*** | 4961028 | POLY BAG WITH SELF-ASSEMBLY PA |
