> Roth / TORO > Hand operated > Lawnmower > 4-stroke SP > 455/20802 BC > 5900001 > Control Assy. (Model No. 20807BC only)

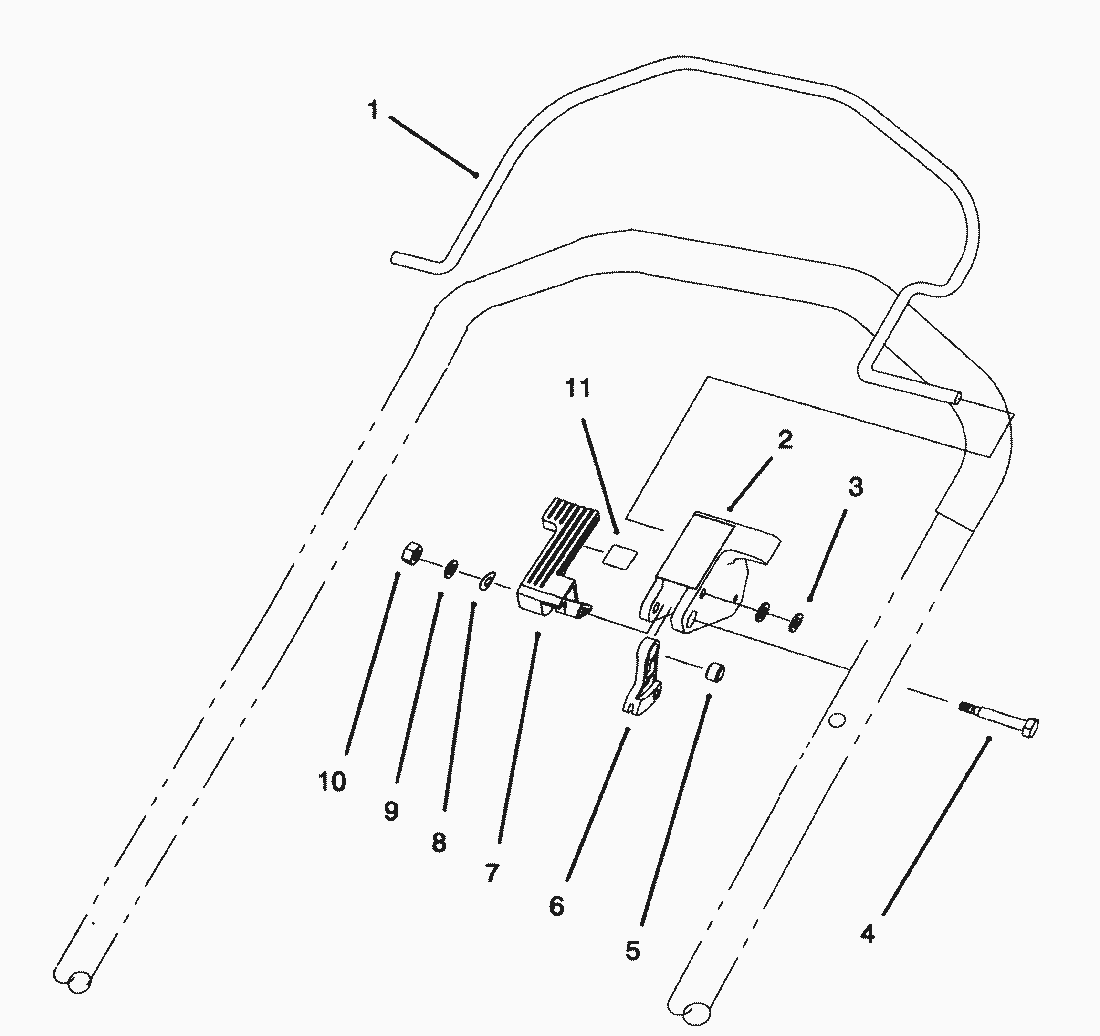

Spare Parts Lists for Toro Roth / TORO Control Assy. (Model No. 20807BC only)




spare parts list


pos.decriptionspare part number
1Bail-Control SP93-0335
2Stop-Pivot93-0340
3Washer-Flat3256-70
4Bolt-Shoulder92-3132
5Spacer-Traction Lever92-3133
6HEBEL46-5520
7Lever-Shift92-2299
8Washer-Spring92-2298
9Washer3256-49
10Nut3296-2
11Decal-Traction93-6653
