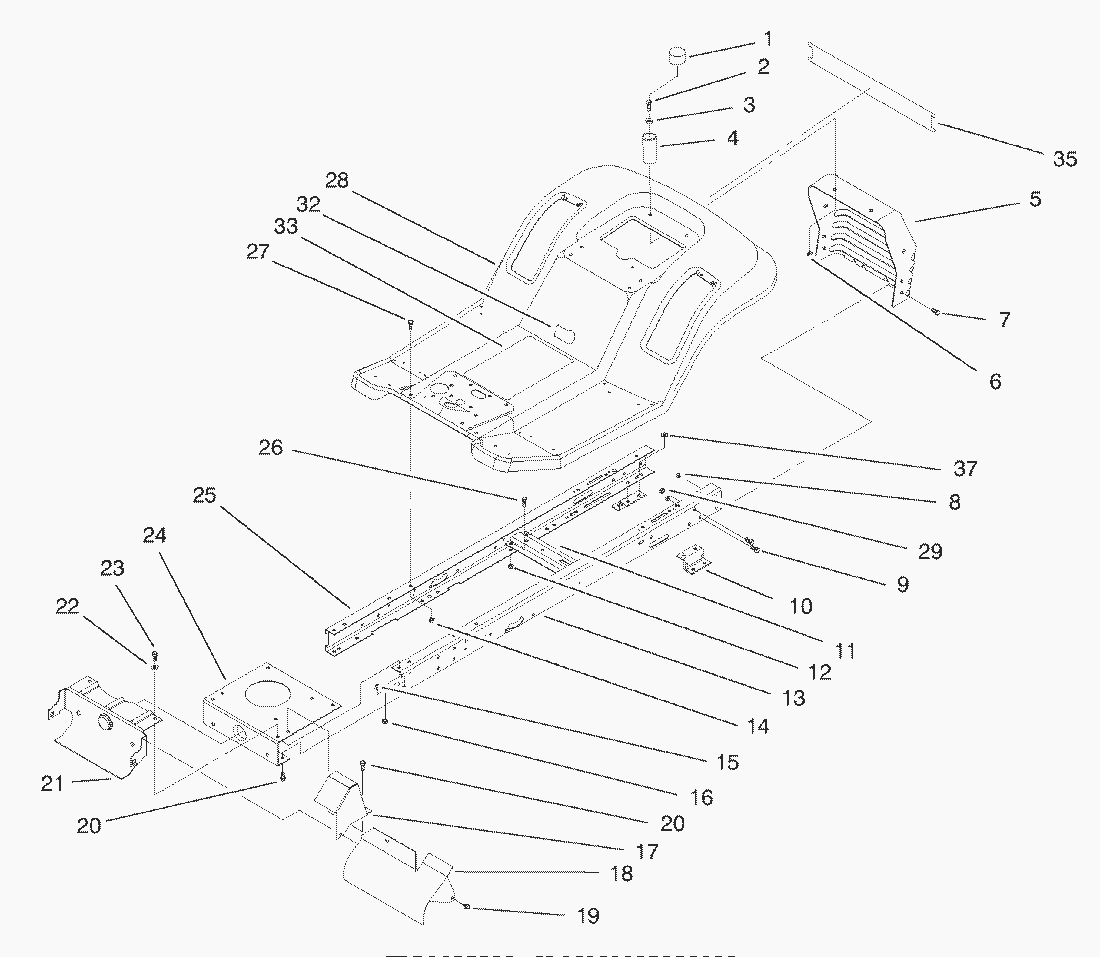

Spare Parts Lists for Toro Roth / TORO Frame Assy.

pos.	decription	spare part number
1	Cap-Protector	701178
2	Hex Hd. Capscrew	322-5
3	Washer	3256-23
4	Spring-Compression	88-6220
5	Panel-Rear	88-3940-03
6	MUTTER	3296-29
7	Capscrew	322-3
8	MUTTER	3296-29
9	Capscrew	322-3
10	Bracket-Trxl Mtg	94-1967-03
11	Bracket-Idler Pivot	88-4620-03
12	MUTTER	3296-29
13	Frame Rail-LH	94-1999-03
14	MUTTER	3296-29
15	MUTTER	3296-29
16	MUTTER	3296-29
17	Shield-Exh. Pipe	88-4960-03
18	Shield-Muffler	88-6290-03
19	Self Tapping Screw	32104-76
20	Capscrew	322-3
21	Support-Axle	98-3575-03
22	Washer	3256-23
23	Capscrew	322-3
24	Plate-Engine Mounting	88-4630-03
25	Frame Rail-RH	94-1998-03
26	Capscrew	322-3
27	Capscrew	322-3
28	Body-Rear	88-3840
29	MUTTER	3296-29
33	Decal-Instruction(Model No. 71200 Only)	93-6675
35	Decal-Rear Fender	95-0809
37	Washer	3256-23
