Spare Parts Lists for Toro Roth / TORO Frame Assy.

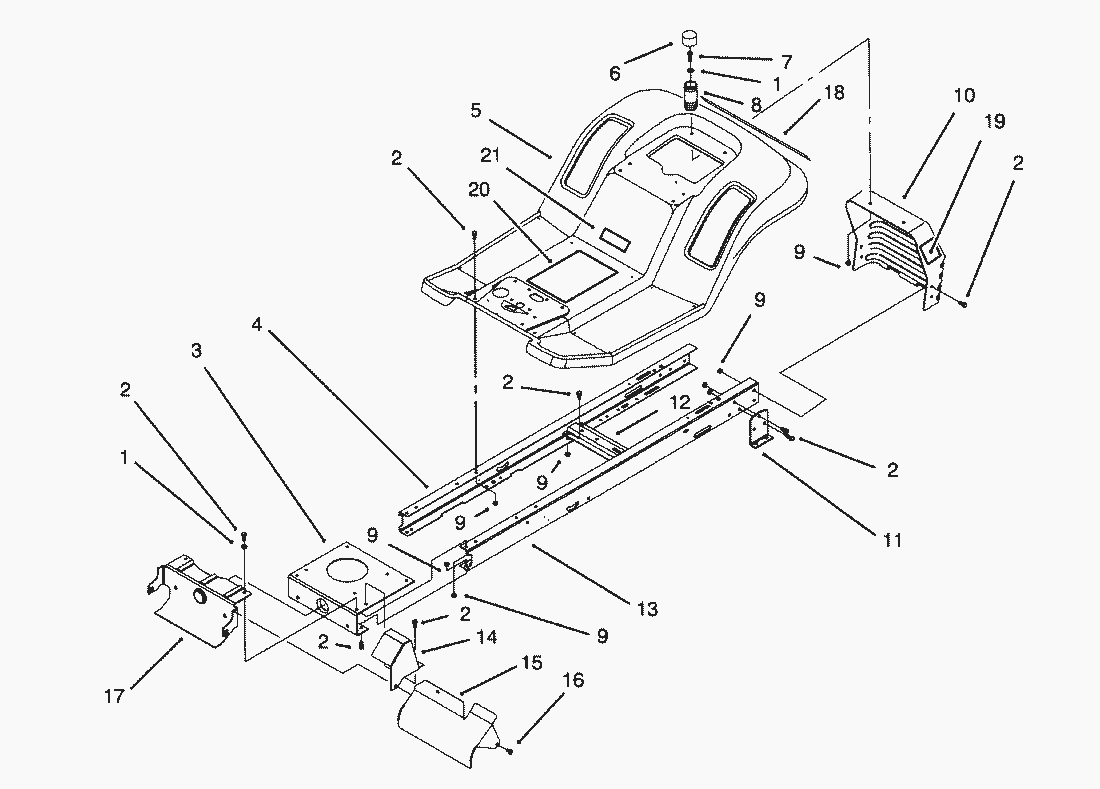

spare parts list


pos.decriptionspare part number
1Washer3256-23
2Capscrew322-3
3Plate-Engine Mount88-4630
4Rail-R.H. Frame88-4650
5Body-Rear88-3840-01
6Cap-Protector701178
7Hex Hd. Capscrew322-5
8Spring-Compression88-6220
9MUTTER3296-29
10Panel-Rear Hitch88-3940
11Bracket-Transaxle Mtg.88-5260
12Bracket-Idler Pivot88-4620
13Rail-L.H. Frame88-4660
14Shield-Exhaust Pipe88-4960
15Shield-Muffler88-6290
16Self Tapping Screw32104-76
17Support-Front Axle88-5120
18Decal-Rear Body92-8789
19Decal-Dump Valve Hydro93-6678
20Decal-Instruction Hydro92-2486
Decal-Instruction Hydro (Model No. 71213 Only)93-6676
21Decal-Made in USA (Model No. 71140 Only)117242
