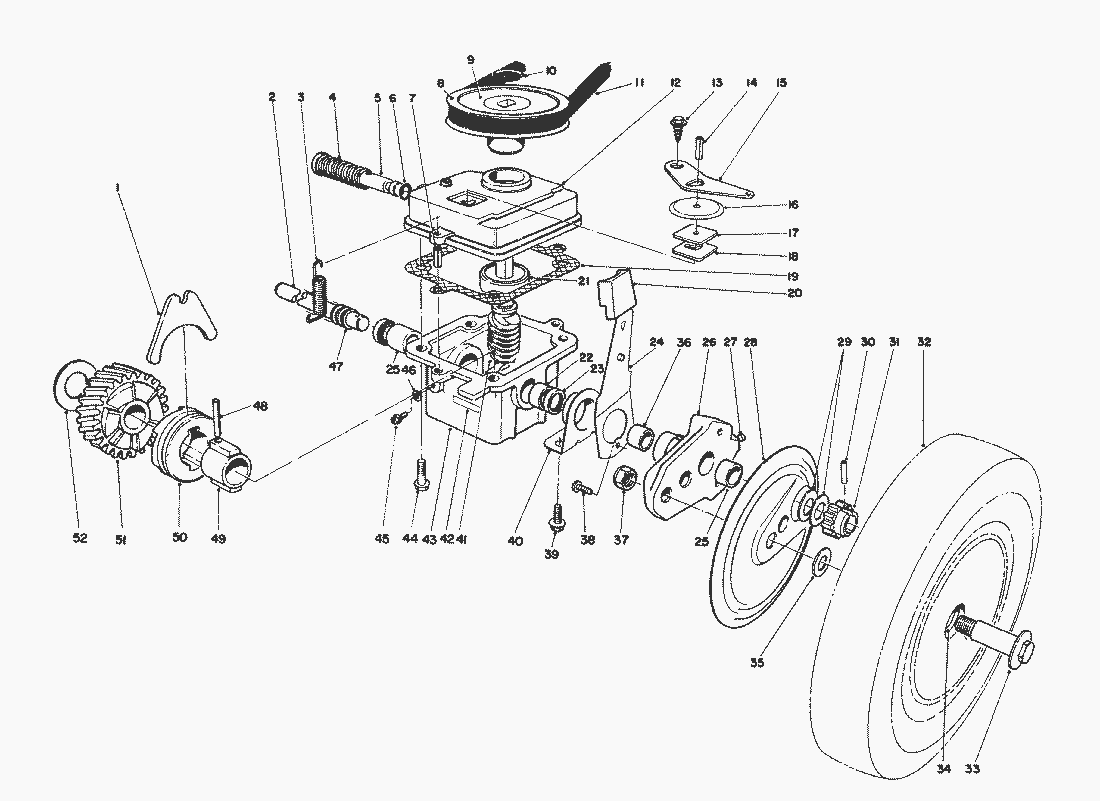

Gearbox Assy. (Cont.)
Spare Parts Lists for Toro Roth / TORO Gearbox Assy. (Cont.)
pos.
decription
spare part number
46
Gasket-Drain Screw
46-9640
47
Cover-Drive Shaft
24-7920
48
Pin-Roll
32121-88
49
Sleeve
3-0721
50
Jaw-Clutch
19-5660
51
52
Washer-Thrust
3-0724
Gear Case Assembly (Complete)
13-3479
Bearing & Shaft Tool
27-0490
Metric Bearing Tool
39-9640
Tool-Bushing
27-0460
