> Roth / TORO > Ride-On Mowers > Traktor > 520 xi > 520/73570 > 200000001 > Hydro Controls Assy.

Spare Parts Lists for Toro Roth / TORO Hydro Controls Assy.

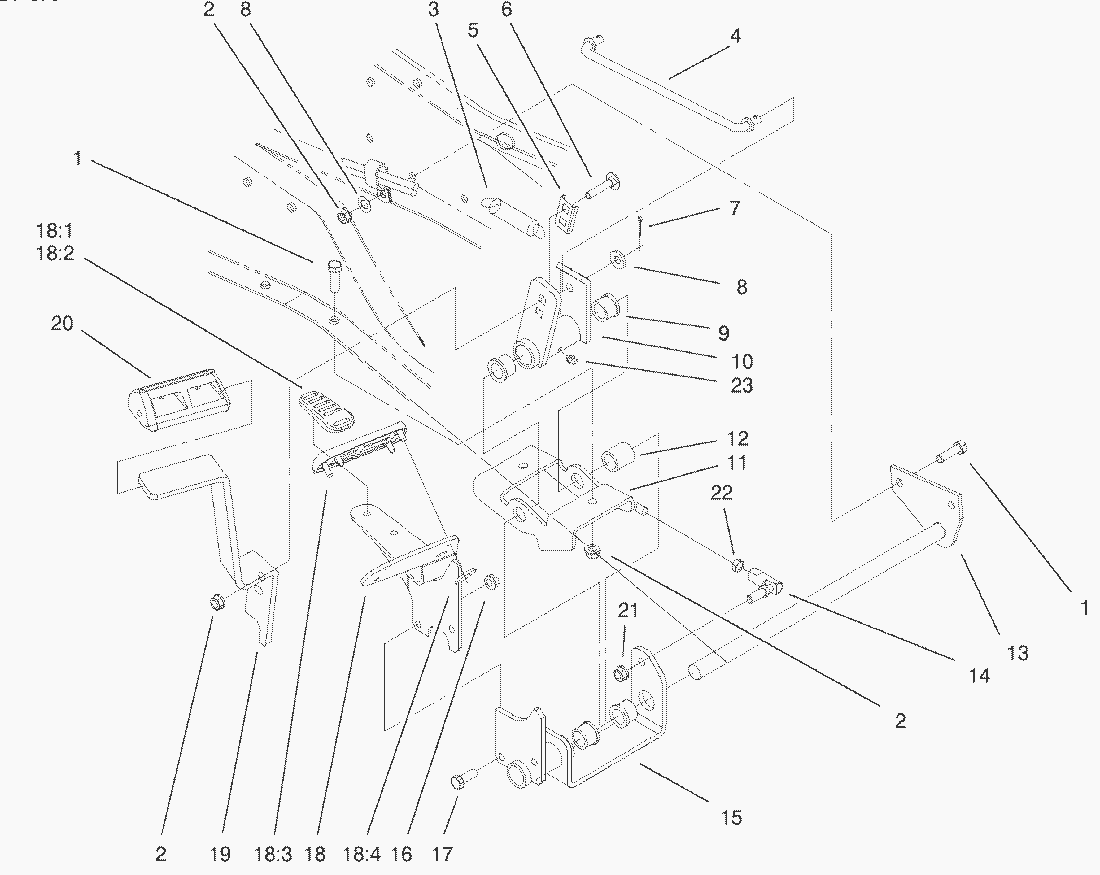

spare parts list


pos.decriptionspare part number
1Screw-Cap Hex Hd.323-7
2Locknut3296-39
3Spring-Extension63-1590
4Link-Brake Pedal94-2499
5Retainer-Screw94-7818
6Carriage Bolt3231-25
7Pin-Cotter3272-10
8Flat Washer3256-24
9Bushing-Flange98-1636
10Brake Bracket94-2351-03
11Bracket-Support94-2343-03
12Spacer-Pedal94-7501
13Pivot Shaft94-2345-03
14Tie Rod End RH94-7572
15Bracket-Forward Reverse94-2342-03
16MUTTER3296-29
17Hex Hd. Capscrew322-5
18Hydro Pedal ASM99-8050
181Hydro Pedal, W.a.99-2300-03
182Heel Pad-Hydro Pedal98-9039
183Toe Pad-Hydro Pedal98-9040
184Pushnut32112-6
19Pedal-Brake94-2352-03
20Pad-Brake Pedal94-2123
21Locknut3296-6
22Jam Nut3220-3
23Grease Fitting302-5
