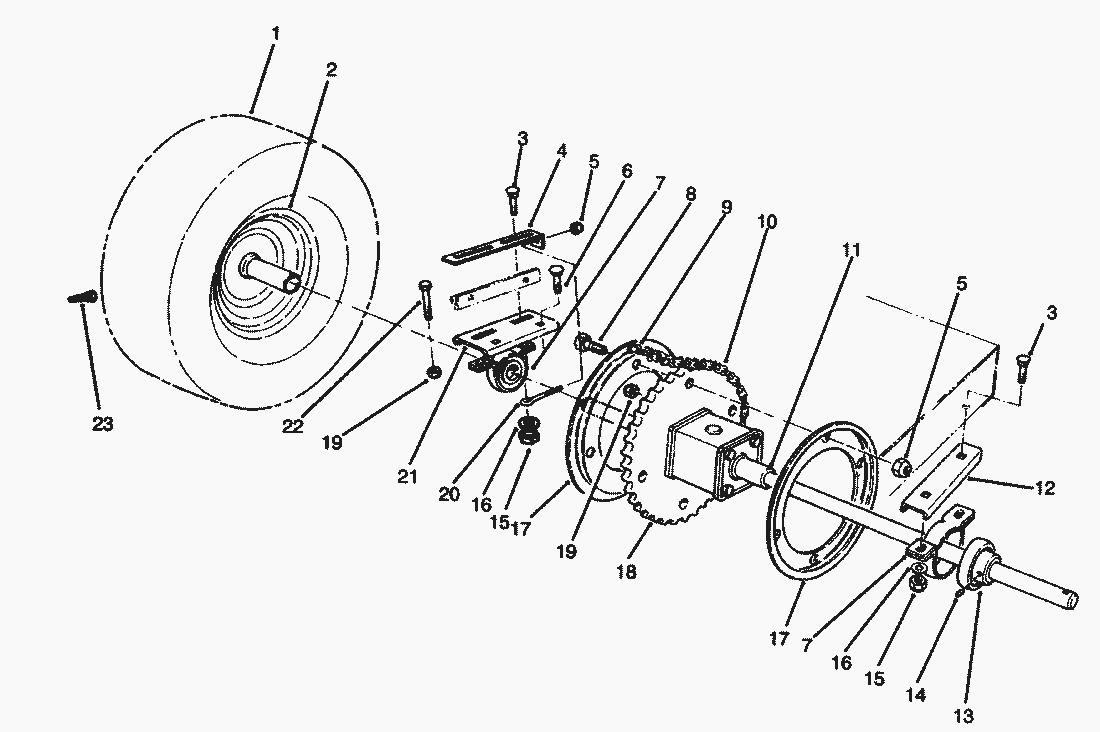

Spare Parts Lists for Toro Roth / TORO Rear Axle Assy.

pos.	decription	spare part number
1	Tire	231-115
2	Rim	44-9760
3	Bolt-Carriage	3231-4
4	Plate-Adjusting	61-9990
5	MUTTER	3296-42
6	Carriage Bolt	3231-25
7	Mount-Bearing	47-1480
8	Capscrew	321-4
9	Connecting Link	2710-11
10	Chain (Incl. Ref.	67-0910
11	Differential	56-9960
12	Support L.H.	66-6630-01
13	Bearing (Incl. Ref.	47-1490
14	Set Screw	3245-32
15	Locknut	3296-39
16	Flat Washer	3256-24
17	Guide-Chain	76-1580-0
18	Sprocket	76-4010
19	MUTTER	3296-29
20	Screw-Adjusting	61-9980
21	Support R.H.	66-6620-01
22	Bolt-Mounting, Axle	46-2511
23	Valve Stem	232-27
	Kit-Tire Chains (Optional)	11-0410
