back to
>
Roth / TORO
>
Hand operated
>
Lawnmower
>
Electric
>
155
>
350000
>
Rear Axle

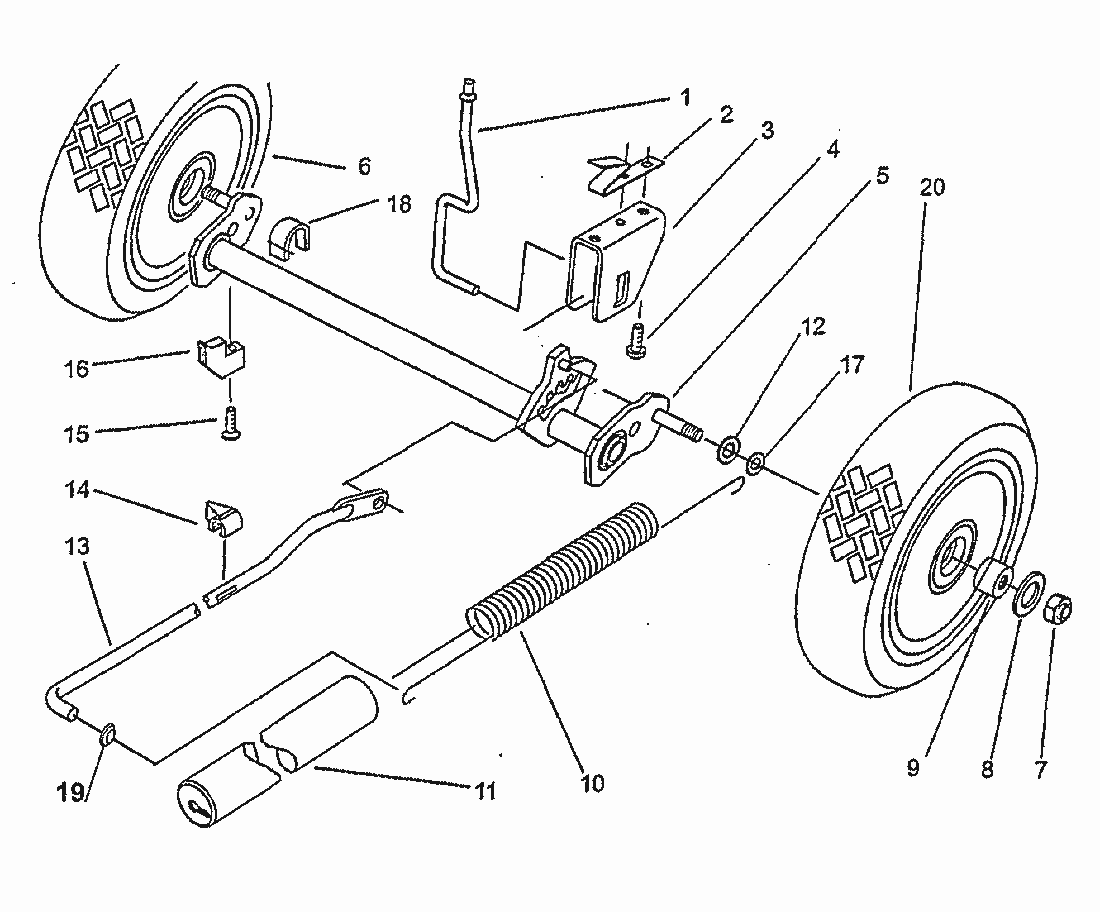

Spare Parts Lists for Toro Roth / TORO Rear Axle
pos.
decription
spare part number
1
STELLSTREBE
20009
2
BLATTFEDER
18308
3
RASTE
18306
4
FORMSCHRAUBE
12393
5
HINTERACHSE
19294
6
RAD
18577
7
STOPMUTTER
10988
8
SCHEIBE
13853
9
GLEITLAGER
07542
10
AUSGLEICHSFEDER
18338
11
FEDERABDECKUNG
18339
12
ABDECKSCHEIBE
03951
13
VERBINDUNGSSTANGE
18305
14
ZEIGER
18355
15
SCHRAUBE
18587
16
ACHSHALTER
19584
17
WELLENSCHEIBE
18868
18
LAGERSCHALE HINTEN
19586
19
SICHERUNGSKAPPE
18867
20
19443
