back to
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
12-38 XL
>
391/71202
>
4900001
>
Seat Assy.

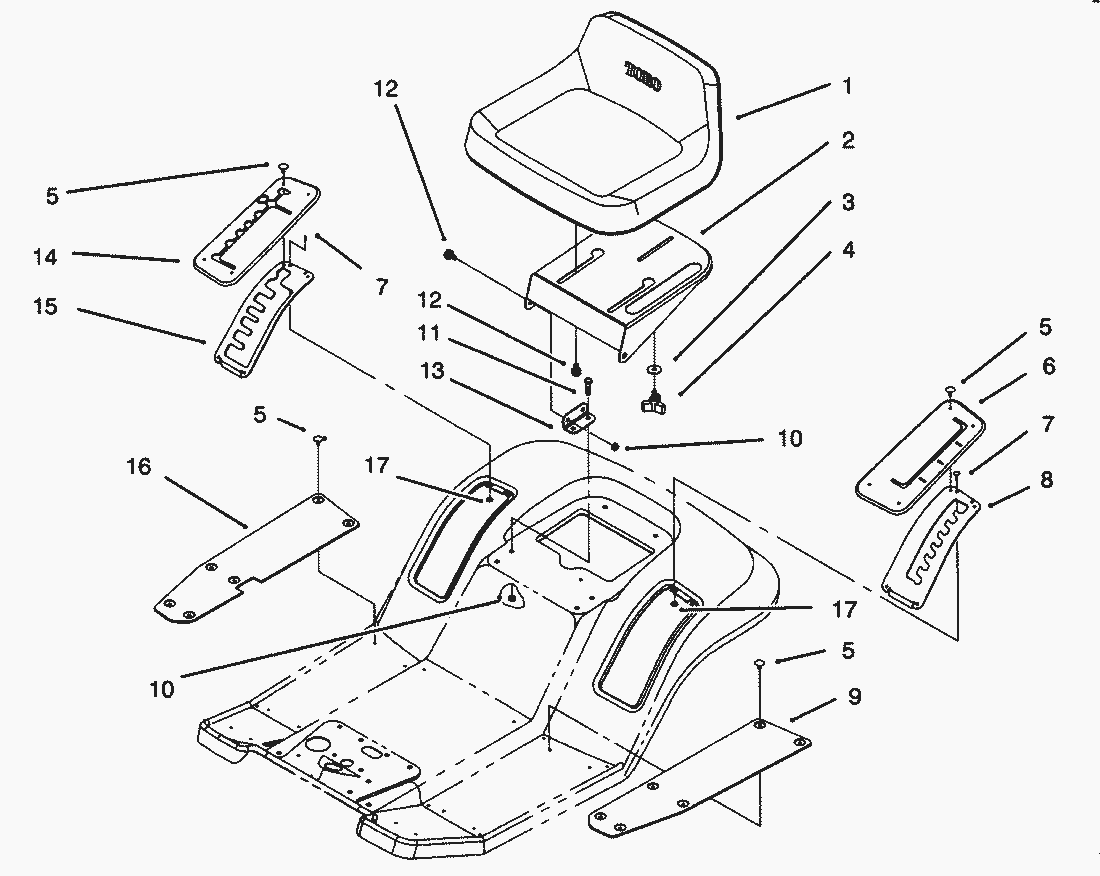

Spare Parts Lists for Toro Roth / TORO Seat Assy.
pos.
decription
spare part number
1
Seat (Model No. 71200 Only)
88-3950
2
Support-Seat
88-4910
3
Washer
5-4460
4
Knob-Studded
700806
5
Fastener-Panel
3290-479
6
Cover-H.O.C.
88-5170
7
Rivet
3269-5
8
Gate-H.O.C.
88-5030
9
Mat-L.H. Foot
88-5240
10
MUTTER
3296-29
11
Capscrew
322-3
12
Shoulder Bolt
37-8770
13
Bracket-Seat Hinge
88-4820
14
Cover-Shift Gate
88-5160
15
Gate-Shift
88-5020
16
Mat-R.H. Foot
88-5220
17
Washer
3269-6
