> Roth / TORO > Ride-On Mowers > Traktor > 265 H > 504/72064 > 8900600 > Single Cylinder Engine, Muffler, and P.T.O.

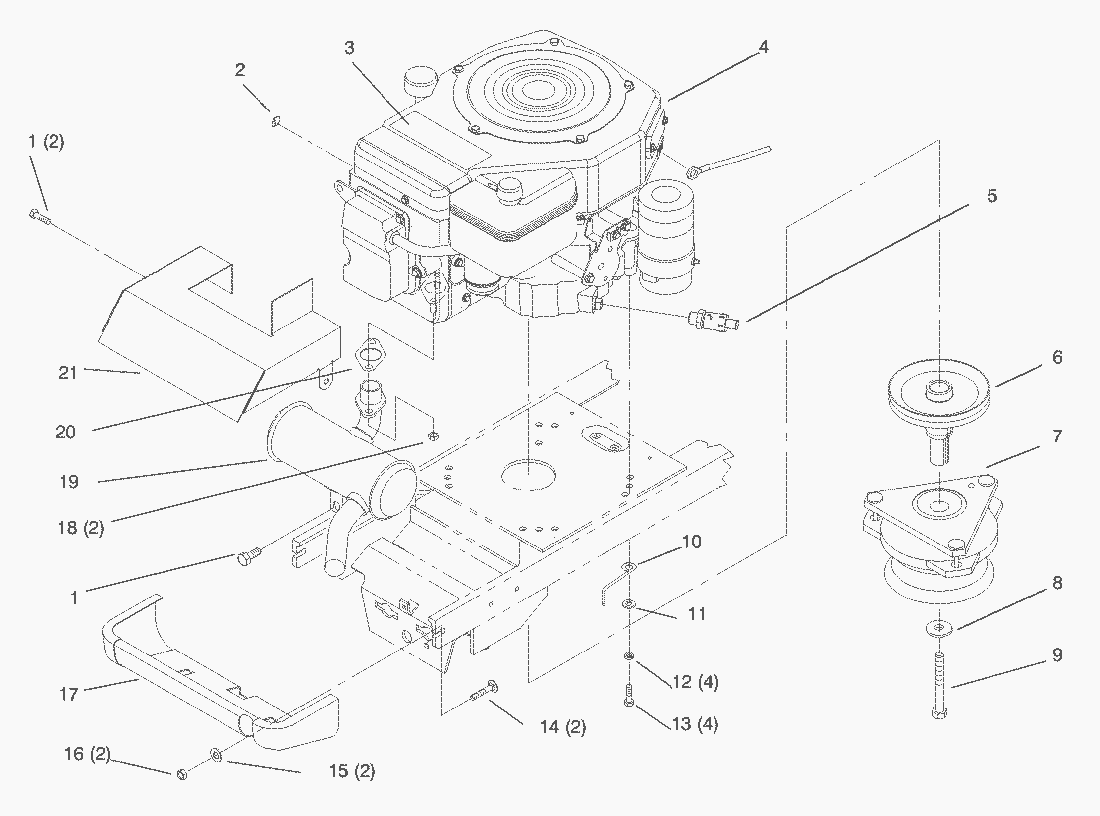

Spare Parts Lists for Toro Roth / TORO Single Cylinder Engine, Muffler, and P.T.O.




spare parts list


pos.decriptionspare part number
1Screw-Wash. Hd., Tap.32144-14
2Clip-Wire Retainer702366
3Decal-Toro Power Plus 1594-2970
4Engine-Kohler (Only On: 72046)95-3041
4Engine-Kohler (Only On: 72064)95-3042
5Valve-Oil Drain (Only On: 72103, 72083)92-6877
6Pulley-Engine (Only On: 72042,72062)93-0321
7Clutch-Electric PTO (Only On: 72046)94-2514
8Washer112843
9Screw-Hex. Hd.9114466
10Belt-Guide79-0390
11Washer3256-23
12Lockwasher3253-4
13Screw-HH33114-030
14Carriage Bolt3231-25
15Flat Washer3256-24
16Locknut3296-39
17Shield-Muffler (Only On: 72103)92-6867-01
18Nut-HHF (Only On: 72103,72083)92-6780
19Muffler95-1663
20Gasket-Exhaust (Only On: 72043, 72042, 72063, 72062)92-6716
21Baffle-Muffler (Only On: 72043,72042, 72063, 72062)92-6878-03
