> Mowers > Accu > Without drive > Premio > Premio 40 AC > Axle, Wheels, Height-adjustment

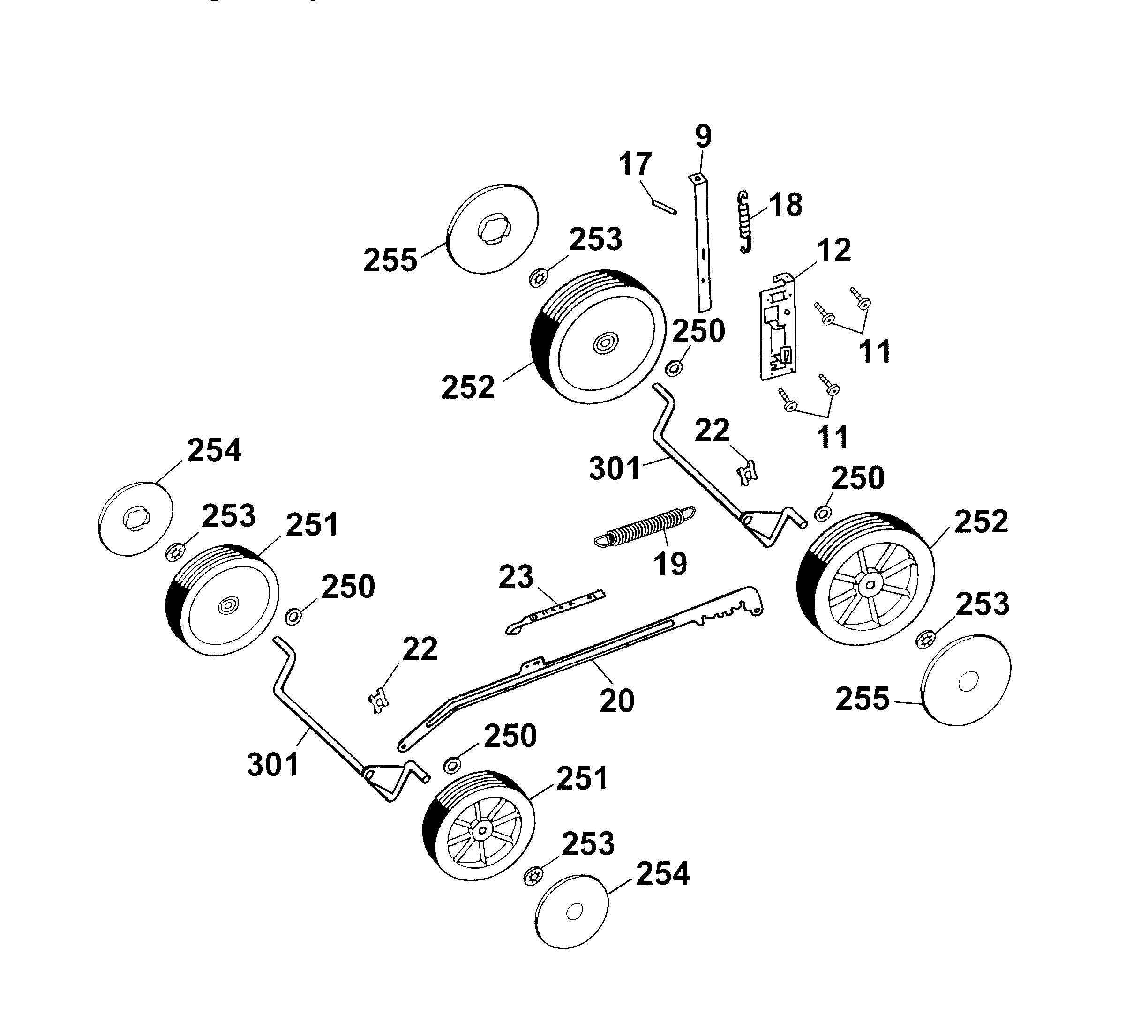

Spare Parts Lists for Wolf Mowers Axle, Wheels, Height-adjustment




spare parts list


pos.decriptionspare part number
9Plate (Zmv)4961 512
11Screw0010 931
12Guiding4001 110
17Dowel Pin0018 878
18Tension Spring4961 514
19Tension spring connecting rod4961 107
20Rod4001 504
22Retaining Clip0020 981
23Height-Position Indicator4001 306
250Washer0017 112
251Wheel ø 170 mm6440 050
252Wheel ø 200 mm6440 051
***Bearing4960 516
253Speedfix Retainer0020 700
254Cover ø 170 mm6450 520
255Cover ø 200 mm6450 530
301Axle4961 011
