Premio 40 B
>
Axle, Wheels, Height-adjustment

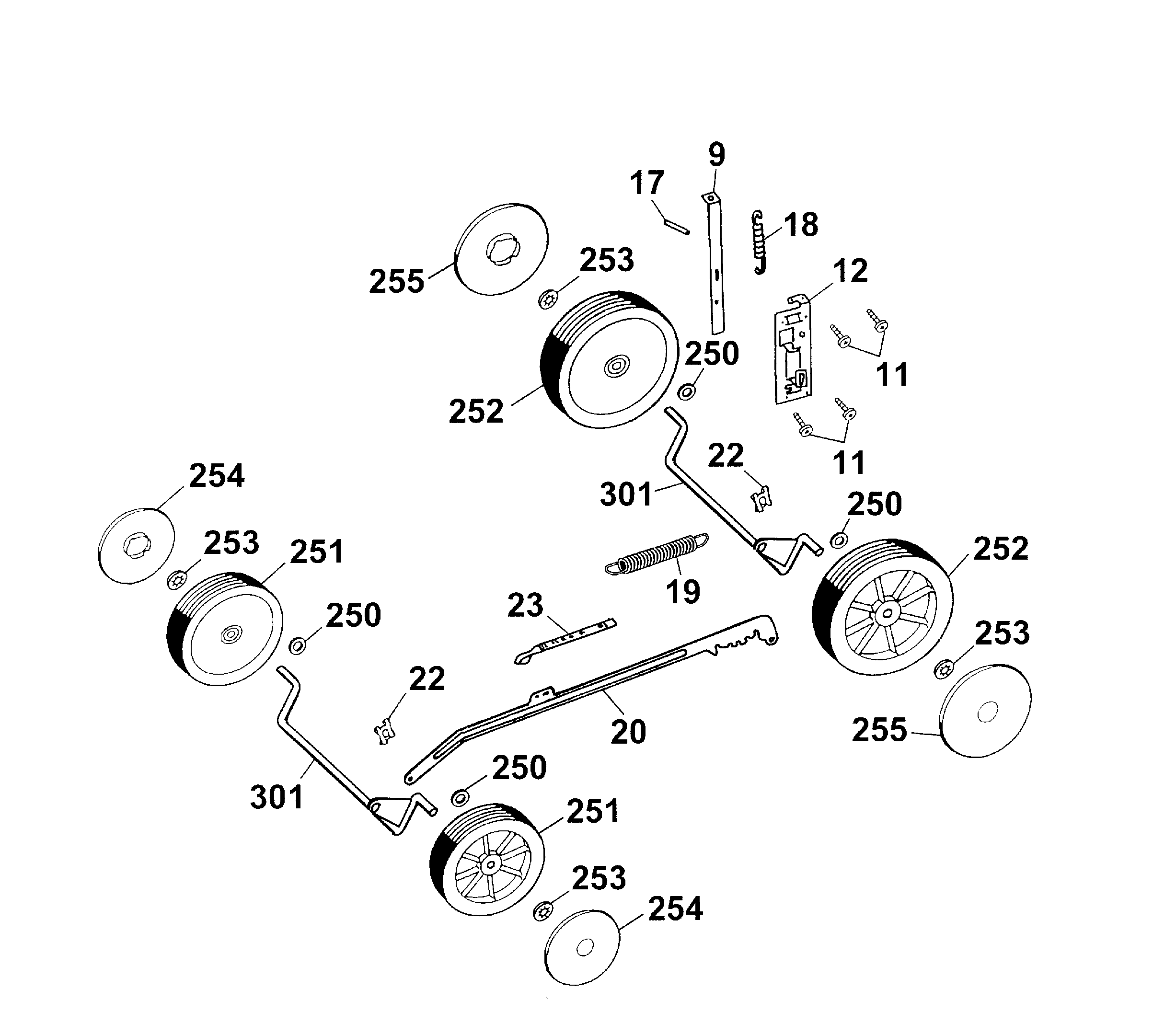

Spare Parts Lists for Wolf Mowers Axle, Wheels, Height-adjustment
pos.
decription
spare part number
9
Plate (Zmv)
4961 512
11
Screw
0010 931
12
Guiding
4001 110
17
Dowel Pin
0018 878
18
Tension Spring
4961 514
19
Tension spring connecting rod
4961 107
20
Rod
4001 504
22
Retaining Clip
0020 981
23
Height-Position Indicator
4001 306
250
Washer
0017 112
251
Wheel ø 170 mm
6440 050
252
Wheel ø 200 mm
6440 051
***
Bearing
4960 516
253
Speedfix Retainer
0020 700
254
Cover ø 170 mm
6450 520
255
Cover ø 200 mm
6450 530
301
Axle
4961 011
