> Scarifiers / Aerators > Scarifiers > Petrol > UV 40 H > Axle, Wheels

Spare Parts Lists for Wolf Scarifiers / Aerators Axle, Wheels

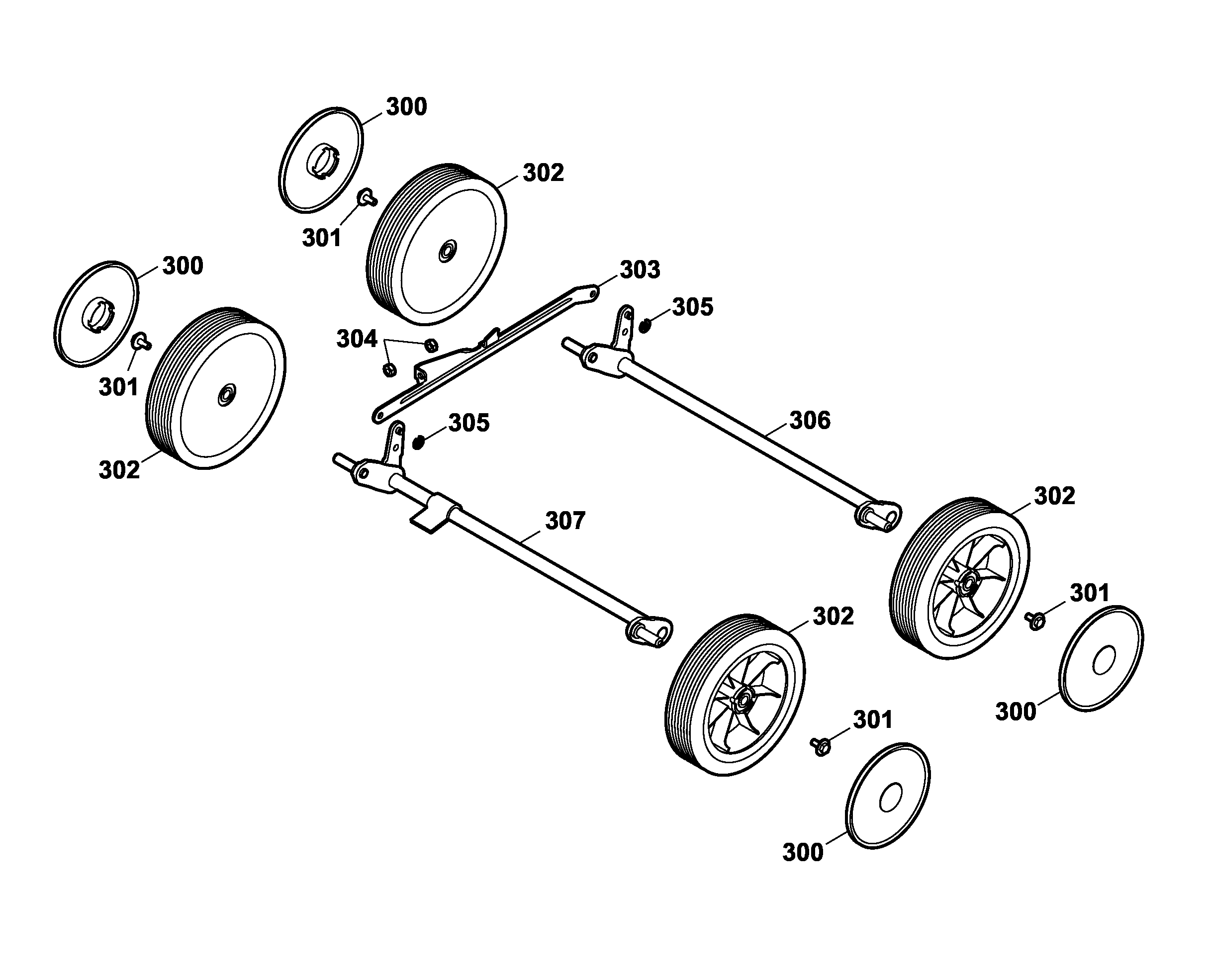

spare parts list


pos.decriptionspare part number
300Cover ø 200 mm6450 530
301Screw0010 893
302Wheel 200 Mm Dia.6340 051
303Rod3635 114
304Self Locking Nut M8 Din 985 Ci.80016 213
305Circlip0022 410
306Axle Rear3635 026
307Axle Front3635 025
