> Secateurs > Bypass > OD / OG / OC > OG-N > Bypass Secateurs OG-N

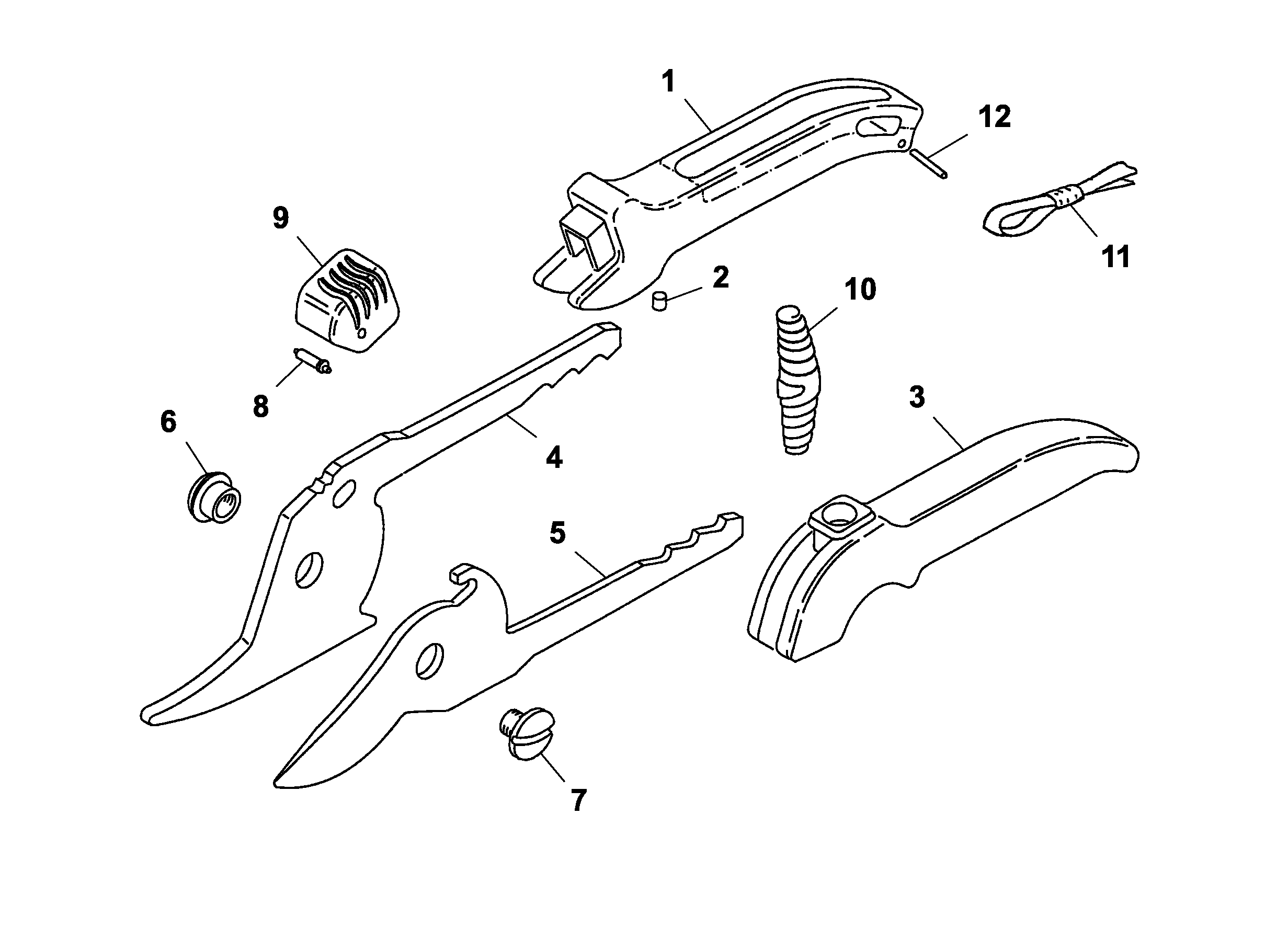

Spare Parts Lists for Wolf Secateurs Bypass Secateurs OG-N




spare parts list


pos.decriptionspare part number
1F7236 104
2Rubber Buffer7236 201
3Lower Handle7236 100
4Cutting Lever7236 130
5Blade Lever Coated7236 131
6Nut7235 205
7Anvil Screw M67270 201
8Tumbler Bolt7235 201
9Push Button7235 120
10Barrel Spring7236 200
11Strap7227 050
12Grooved Pin0018 638
