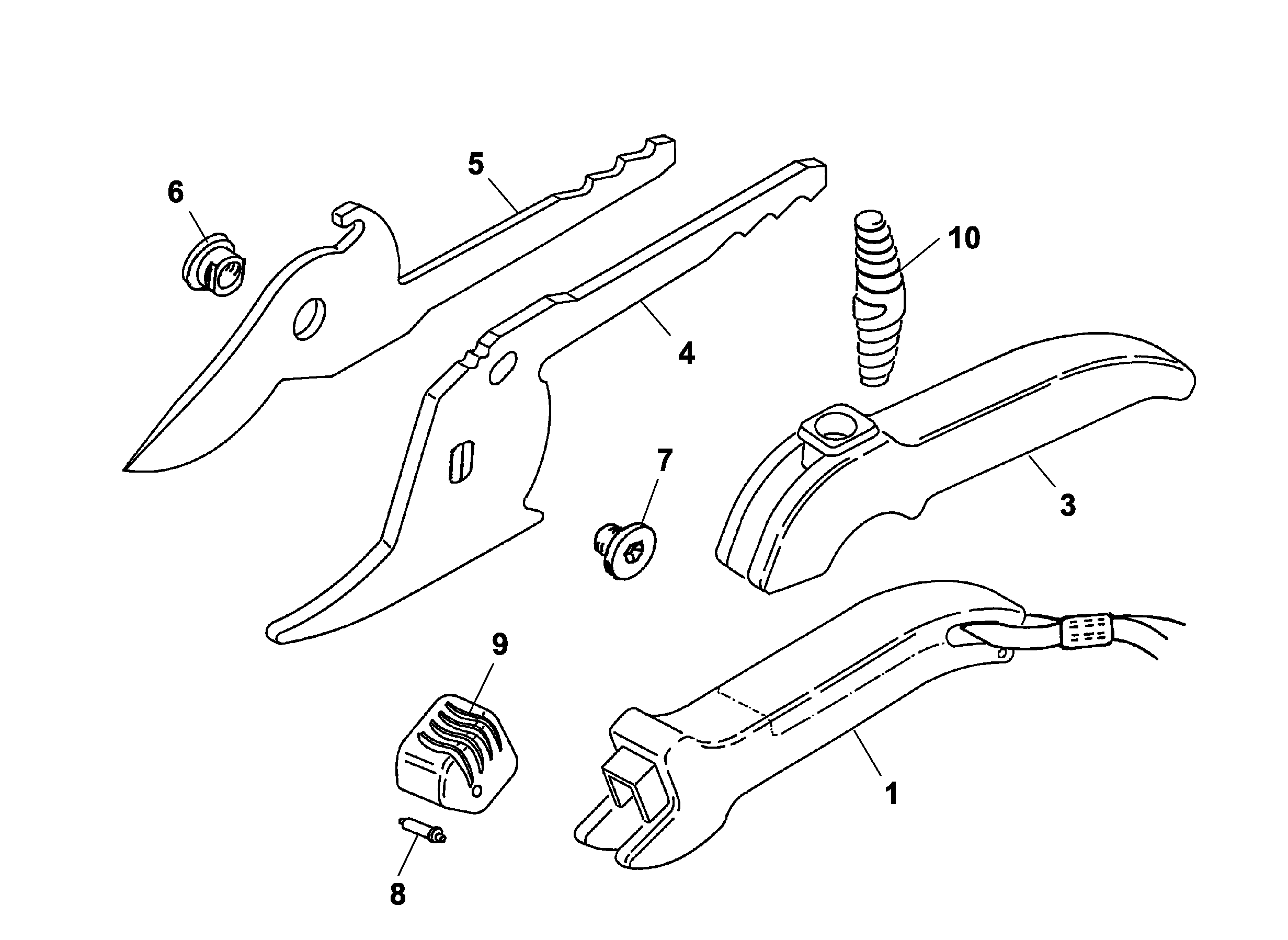

Spare Parts Lists for Wolf Secateurs Bypass Secateurs RR 19




spare parts list


pos.decriptionspare part number
1Upper Handle7235 016
3Lower Handle7235 113
4Cutting Lever7235 130
5Blade Lever Coated7235 131
6Nut7235 205
7Anvil Screw M67270 201
8Tumbler Bolt7235 201
9Push Button7235 120
10Spring7235 206
