> Mowers > Petrol > Without drive from 43 cm on > series 2 > 2.48 XC, Good Line > Q 48 Fixspeed > Carburetor (primer system)

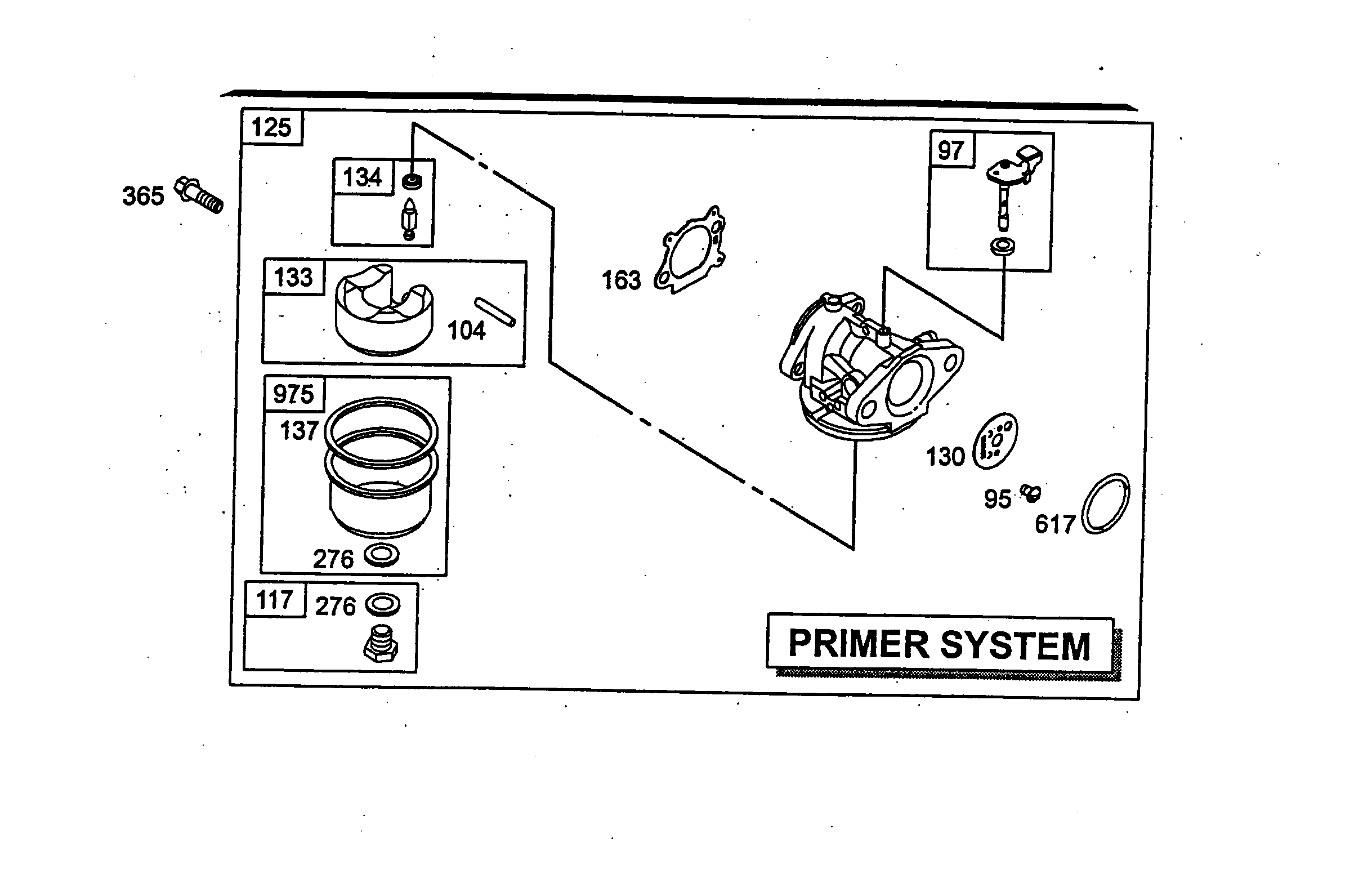

Spare Parts Lists for Wolf Mowers Carburetor (primer system)




spare parts list


pos.decriptionspare part number
95Screw1001 407
97Shaft - Throttle2057 103
104Pin-Counterweight2069 410
117Main Jet2057 180
125Carburetor2069 025
130Throttle Valve2069 408
133Float-Carburetor2003 410
134Kit - Needle/Seat2003 411
137Seal2069 316
163Choke2059 220
276Seal2059 202
365Screw2069 323
617Seal2056 155
975Cap2058 409
