> Battery-shears > Accu > Accu 100 > Case, Switch, Wheels

Spare Parts Lists for Wolf Battery-shears Case, Switch, Wheels

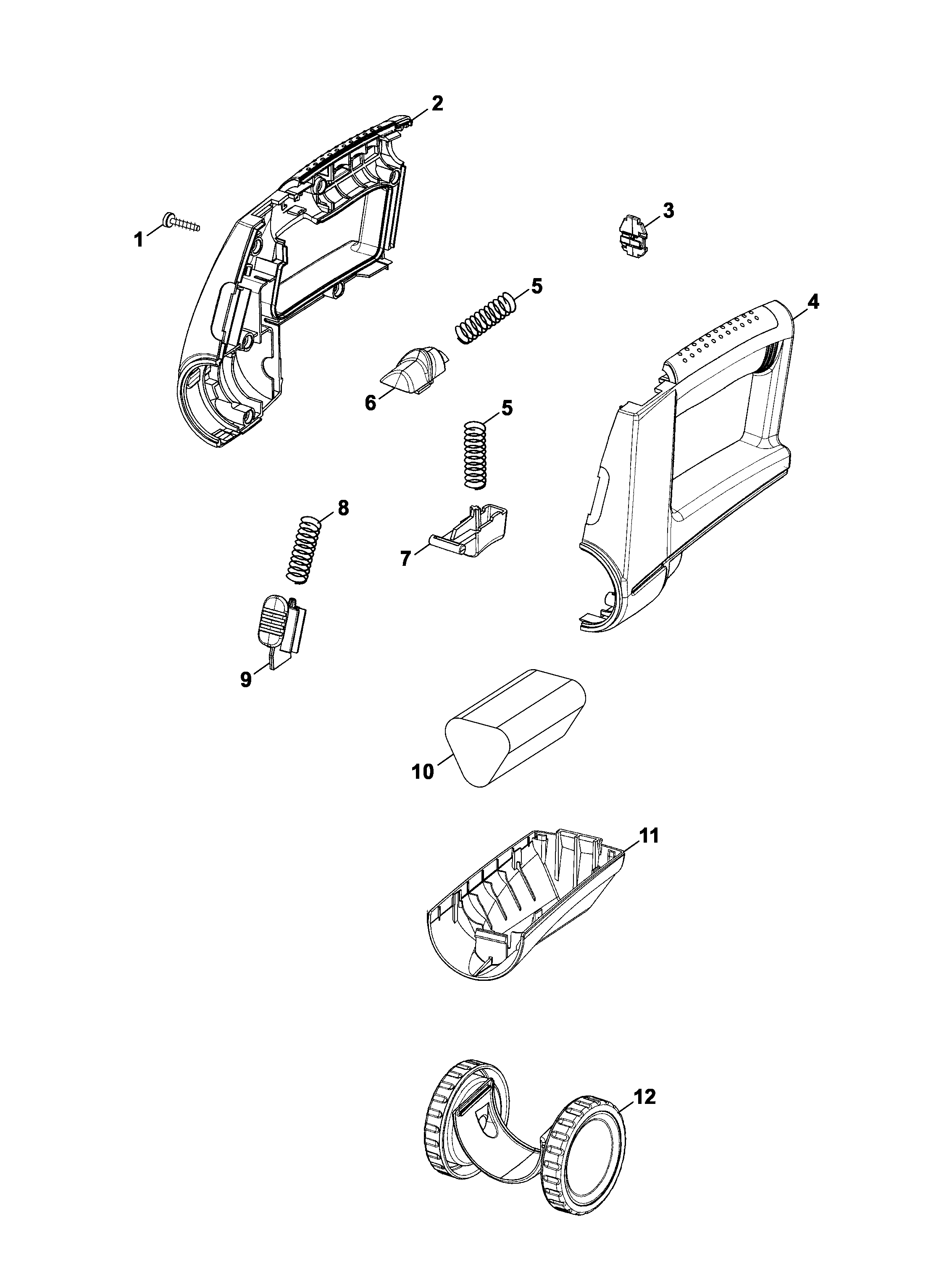

spare parts list


pos.decriptionspare part number
1Screw0012 625
2Case Right7086 300
3Retainer7086 302
4case, left7086 030
5Compression Spring7086 115
6Push Button7086 305
7Switch7086 304
8Compression Spring7086 116
9Lock For Working Position7086 303
10Battery7086 916
11Battery Cover7084 316
12Replacement Wheels Ac-R7084 094
