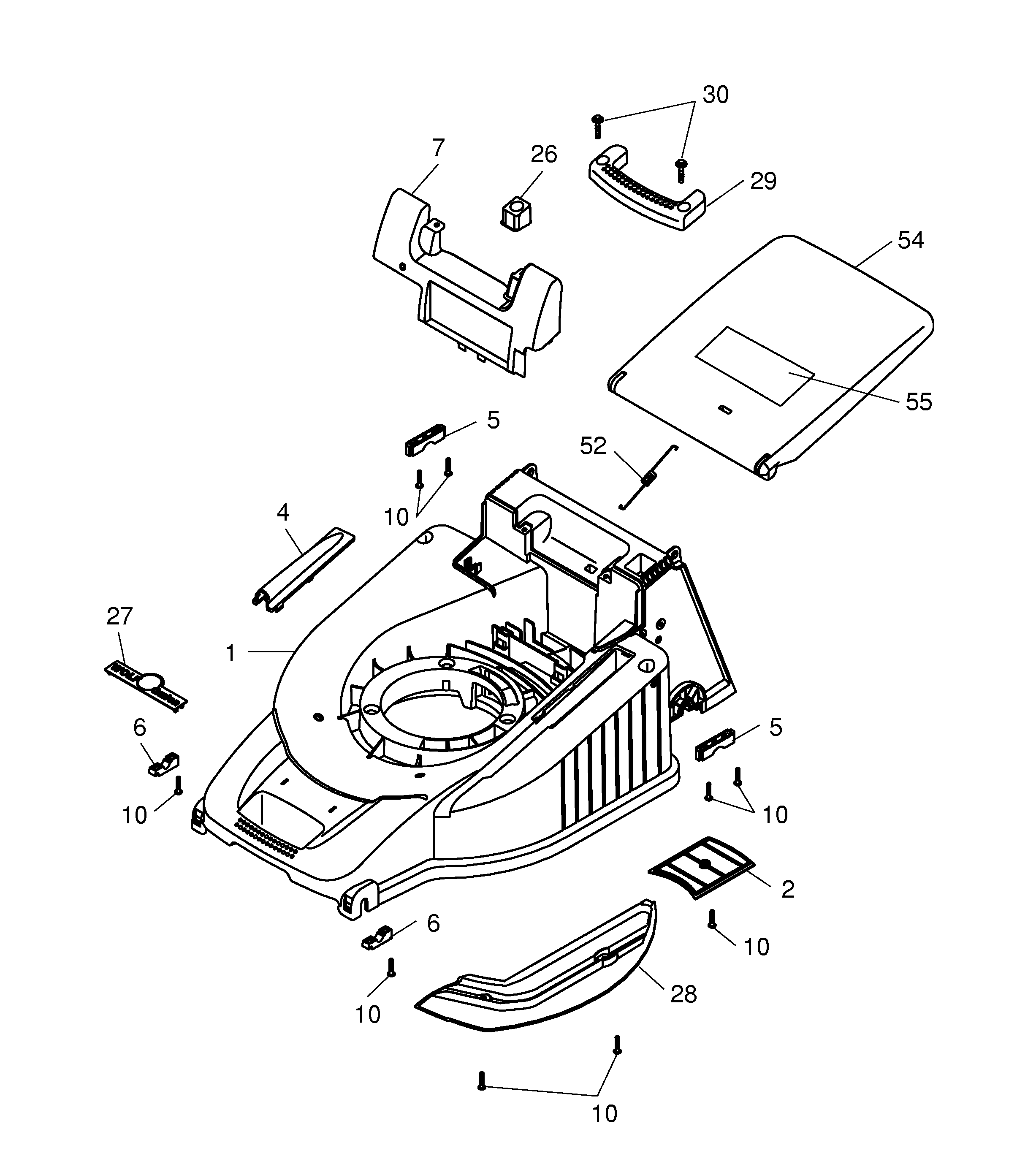

Spare Parts Lists for Wolf Mowers Chassis

pos.	decription	spare part number
1	Chassis	4001 320
2	V-Belt Cover	4961 324
4	Air conduction	4601 315
5	Shell, Rear	4961 313
6	Front Support Shell	4961 312
7	Chassis Cover	4001 310
10	Screw	0012 631
26	Button	4961 304
27	Wolf-Garten - Label	0051 115
28	Wind Tunnel Cover	4001 311
29	Rear Carrying Handle	4601 303
30	Screw	0012 639
52	Tension Spring	4961 108
54	Rear Flap Yellow	4620 322
55	Safety Label	0051 248
