Chassis

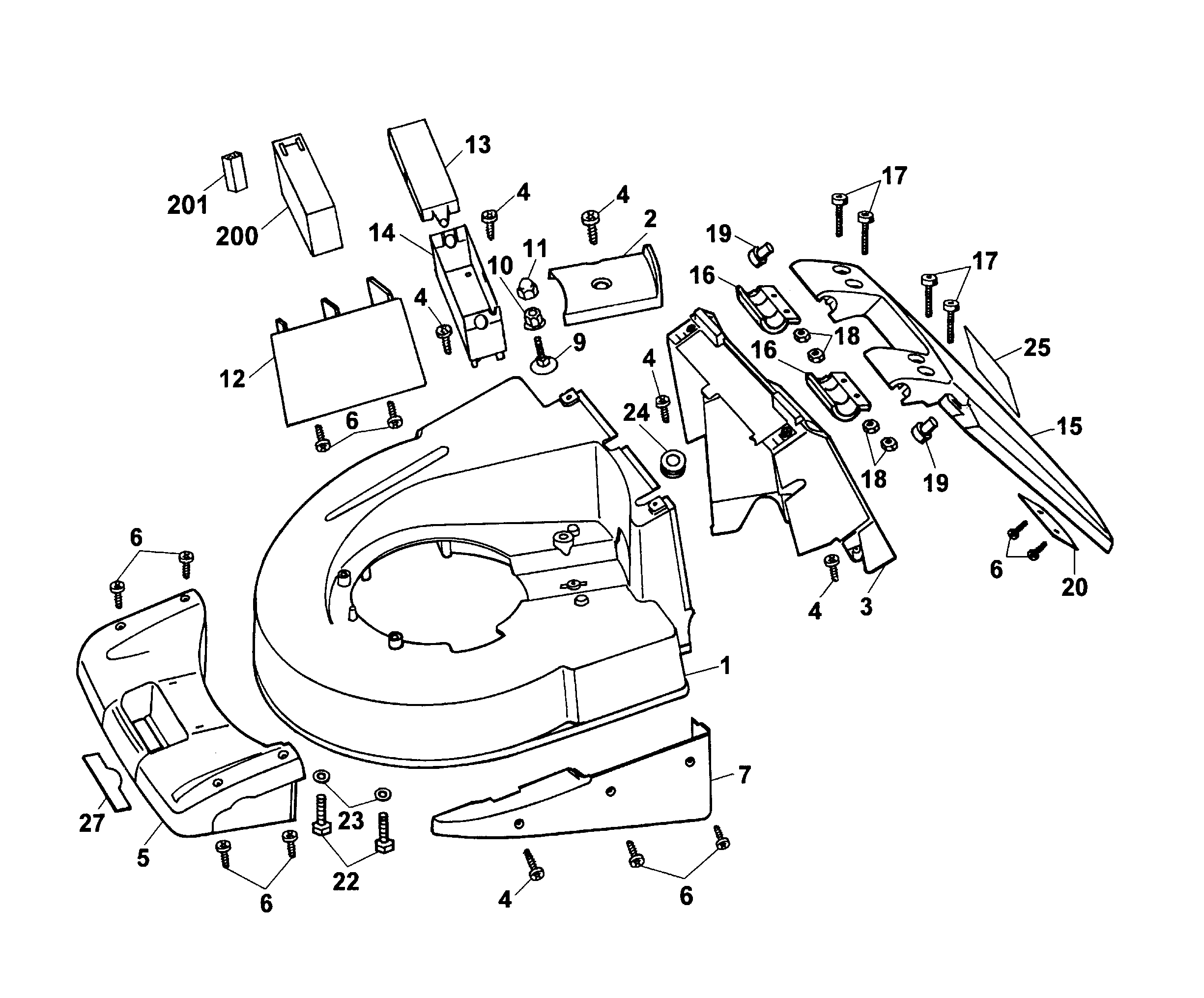

Spare Parts Lists for Wolf Mowers Chassis
pos.
decription
spare part number
1
Chassis
6450 420
2
V-Belt Cover
6450 307
3
Deflector
6450 340
4
Screw M 5X20
0012 607
5
Front Panel
6450 302
6
Screw 5X12
0012 605
7
Cover, Left
6450 304
9
Screw
0013 650
10
Nut
0016 385
11
Sleeve M 8
6340 126
12
Wind Tunnel Insert
6450 303
13
Battery Upper Case
6460 311
14
Battery Lower Case
6460 310
15
Rear Flap
6450 911
16
Clamp-Casing
6450 311
17
Screw M5X40
0012 825
18
Hex. Nut M 5
0016 210
19
Rubber Buffer
6450 316
20
Counterweight
6450 149
22
Hex Screw M8X30 Din 933 8.8
0010 399
23
Washer A 8,4 Din 125
0017 123
24
Rubber Funnel
6450 314
25
Safety Label
0051 246
27
Wolf-Garten - Label
0051 115
200
Battery 12 V, 7,2 Ah
6150 075
201
Cellular Rubber
4911 317
