> Mowers > Electro > Without drive up to 38 cm > series 2 > 2.32 E > Chassis

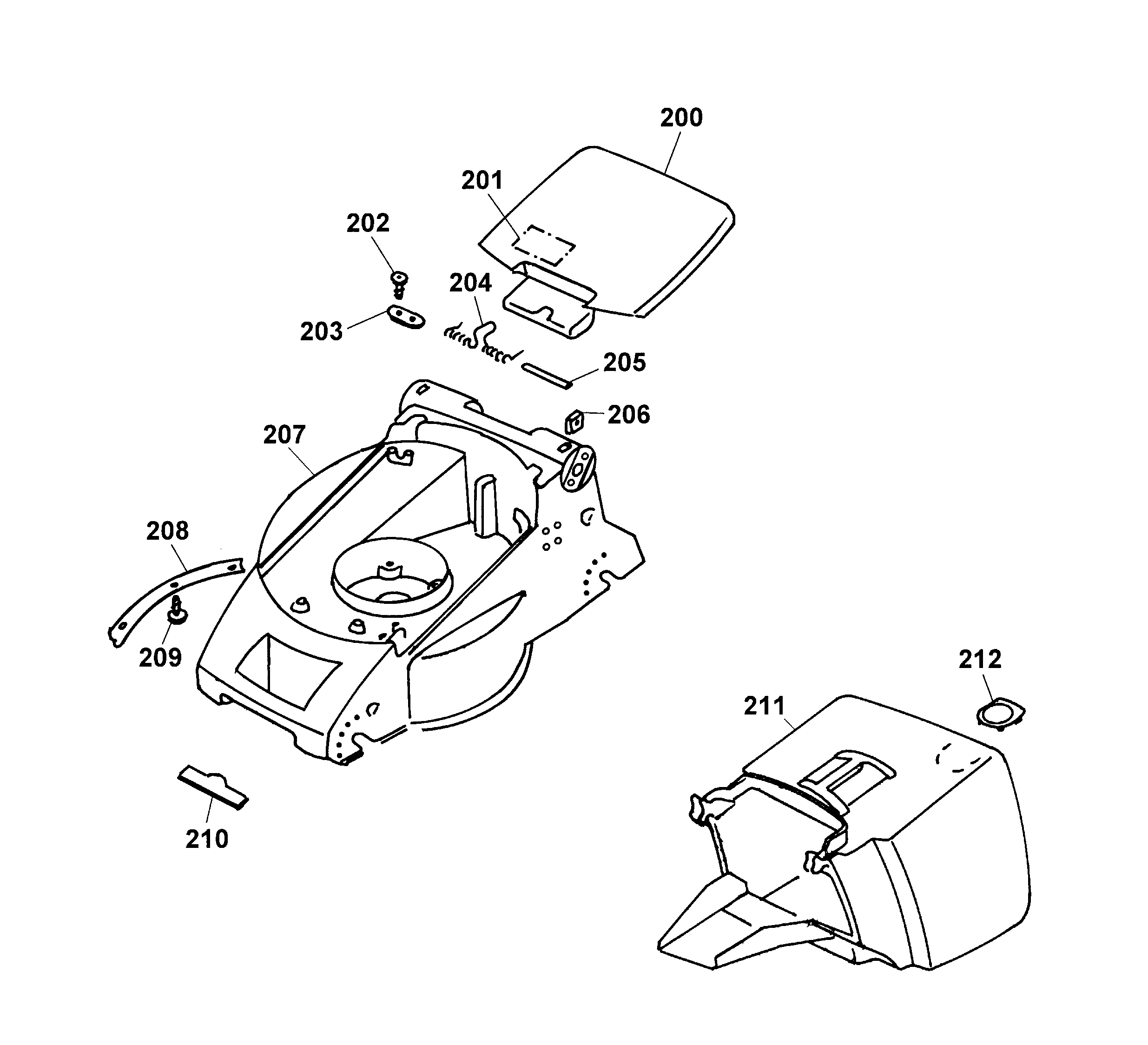

Spare Parts Lists for Wolf Mowers Chassis




spare parts list


pos.decriptionspare part number
200Rear Flap4912 303
201Safety Label0051 244
202Screw0012 625
203Clamp-Casing4557 208
204Spring4936 217
205Pivot Pin4932 208
206Nut0016 409
207Chassis4932 390
208Reinforcing Insert4932 112
209Screw0012 899
210Wolf-Garten - Label0051 115
211Grass Box4932 066
212Blanking Plug4906 315
