Chassis

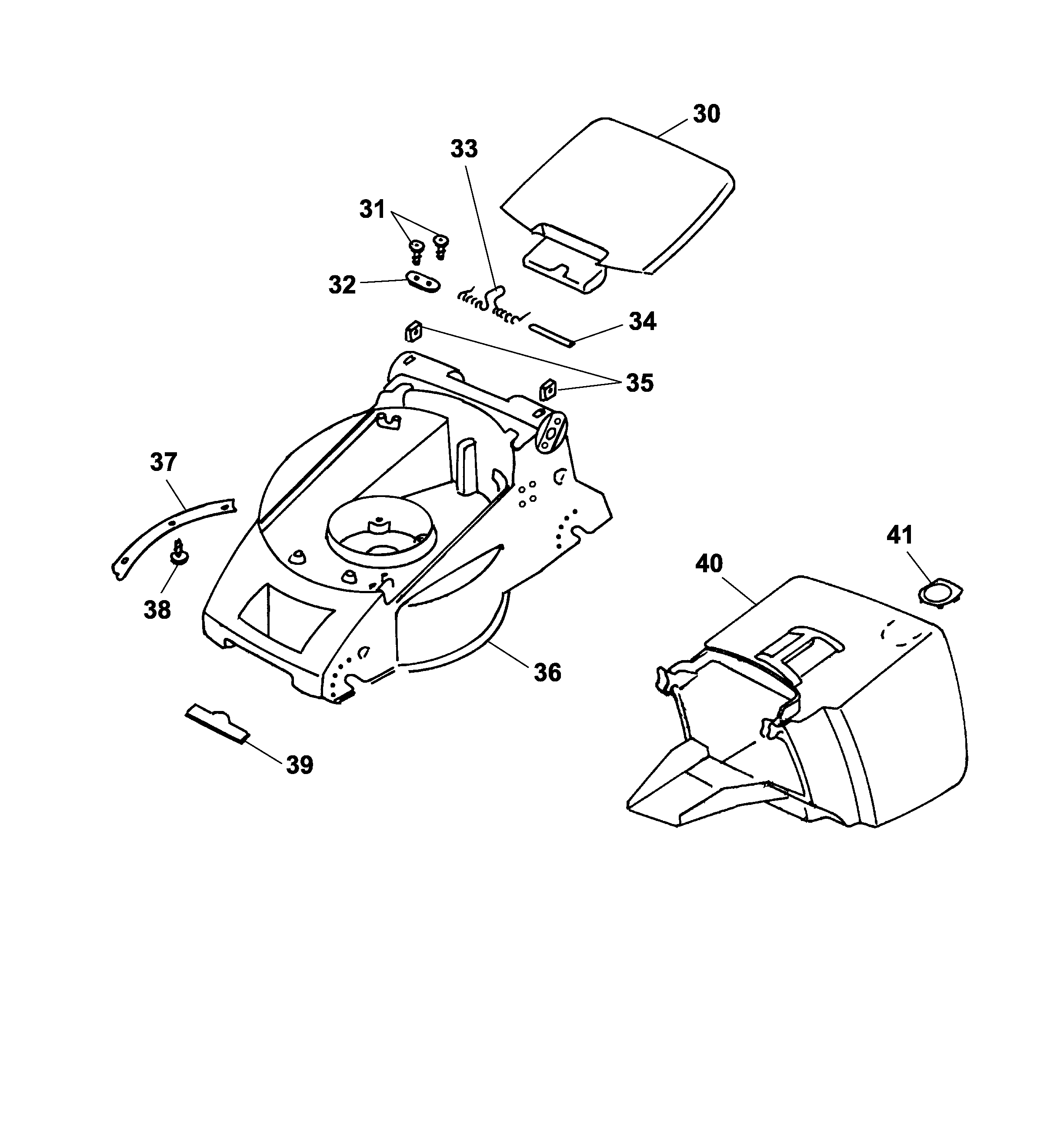

Spare Parts Lists for Wolf Mowers Chassis
pos.
decription
spare part number
30
Rear Flap
4912 303
31
Screw
0012 625
32
Clamp-Casing
4557 208
33
Spring
4936 217
34
Pivot Pin
4932 208
35
Nut
0016 409
36
Chassis
4932 390
37
Reinforcing Insert
4932 112
38
Screw
0012 899
39
Wolf-Garten - Label
0051 115
40
Grass Box
4932 066
41
Blanking Plug
4906 315
