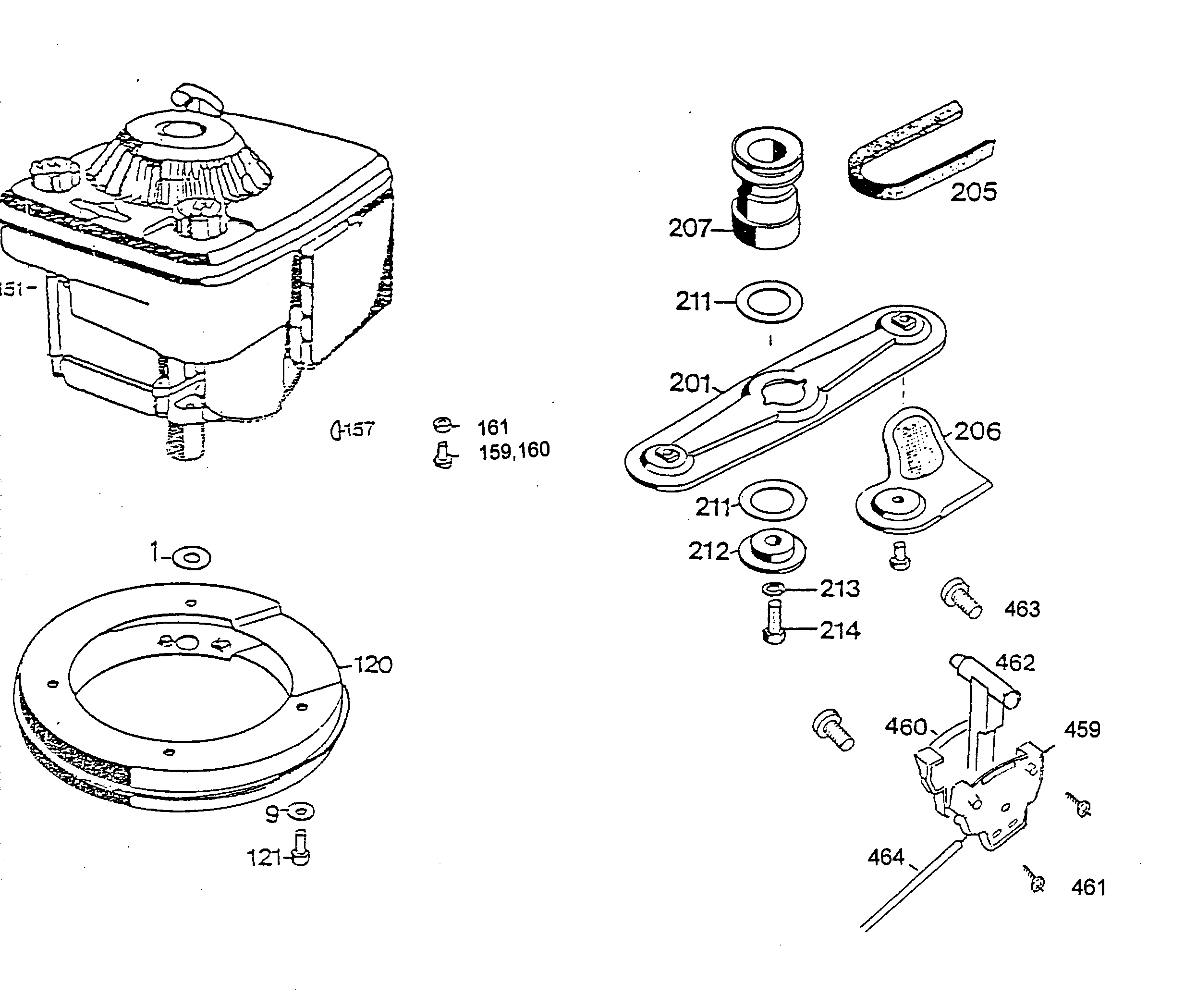

Spare Parts Lists for Wolf Mowers Cover, Motor, Blade

pos.	decription	spare part number
9	Washer	0017 111

Lists

pos.	decription	spare part number
1	Washer	0017 484
120	Ring	6340 022
121	Hex Screw M8X30 Din 933 8.8	0010 399
151	Motor "Quantum 50 Xte"	2069 070
157	Key	0029 130
159	Screw	0011 351
160	Screw M8X60	0011 353
161	Hex. Nut	0016 312
201	Blade Compl. W. Repl. Blades	4740 066
205	Drive Belt 42Cm	0039 204
206	Replacement Blade Vi 42/52	6340 078
207	Coupling	6420 400
211	Clutch facing	4111 403
212	Coupling Disk	4840 402
213	Washer spring	0017 911
214	Screw	0010 258
459	Switch case left	4722 111
460	Switch case right	4722 110
461	Screw, Pt Ka 40 X 10	0012 887
462	Adjusting Lever	4722 040
463	Screw	0012 886
464	Bowden wire	6650 054
****	Bowden wire	4722 045
****	Poly Bag With Operator Manual	4726 025
****	Instruction Manual	0054 104
****	Collector Box	4960 050
