> Mowers > Petrol > Drive up to 42 cm > series 6 > 6.42 BAi > Drive, Wheels

Spare Parts Lists for Wolf Mowers Drive, Wheels

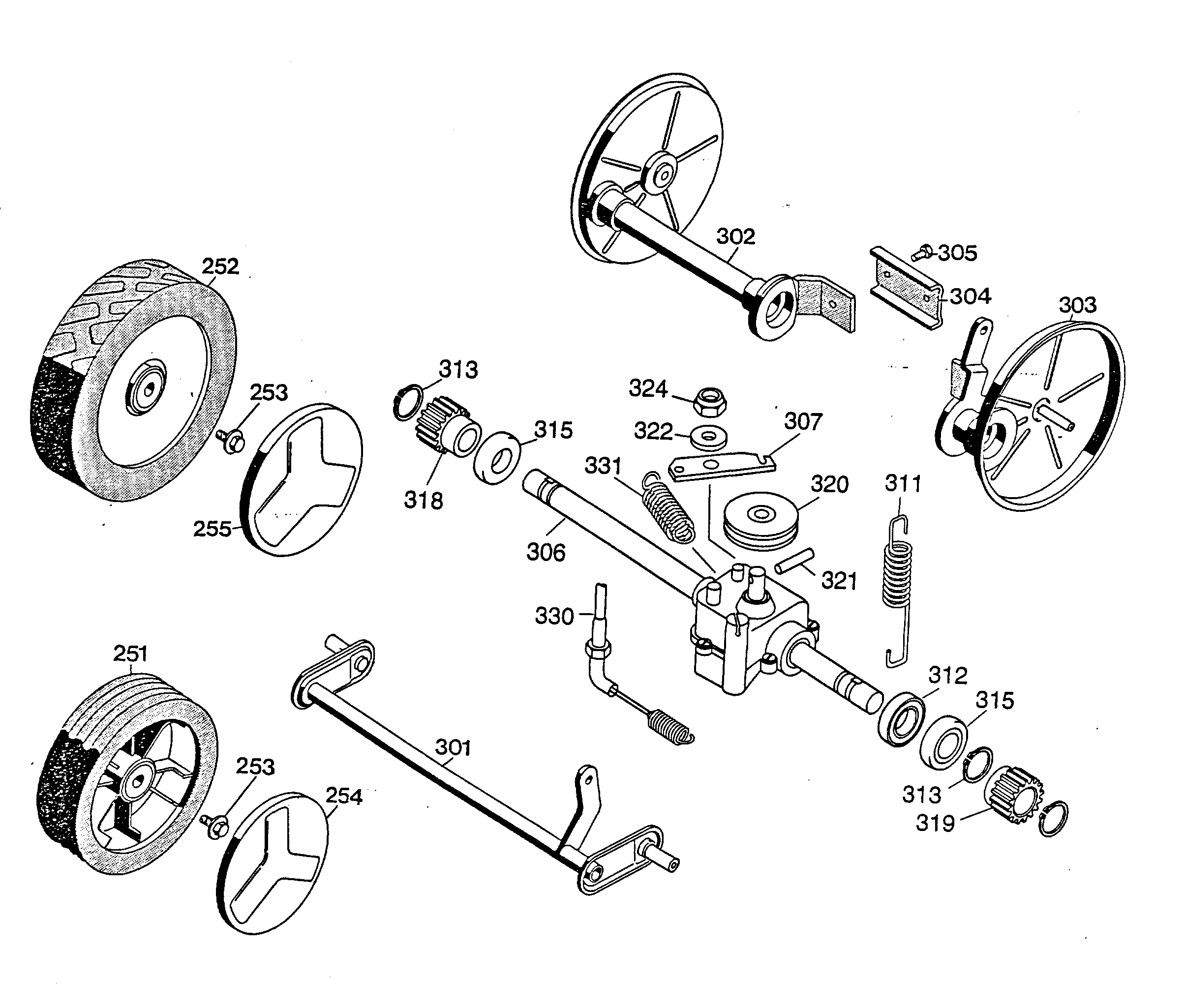

spare parts list


pos.decriptionspare part number
251Wheel ø 170 mm6440 050
252Wheel, 200 Mm Dia.6420 061
253Screw0010 893
254Cover ø 170 mm6340 511
255Cover6340 512
***Bearing6340 516
301Axle4740 030
***Drive axle4765 060
***Drive axle4765 061
302Axle Half4725 022
303Axle Half4725 023
304Clamp6420 507
305Screw0010 893
306Gear1097 000
307Lever1097 200
311Tension Spring4725 108
312Bearing0023 147
313Circlip0020 010
315Distance Bush4725 105
318Coupling Pinion, Right4725 025
319Coupling Pinion, Left4725 026
320V-Belt Pulley1097 201
321Dowel Pin1097 202
322Washer1097 203
324Stop nut1097 204
330Bowden Wire Driving4725 054
331Spring1097 205
