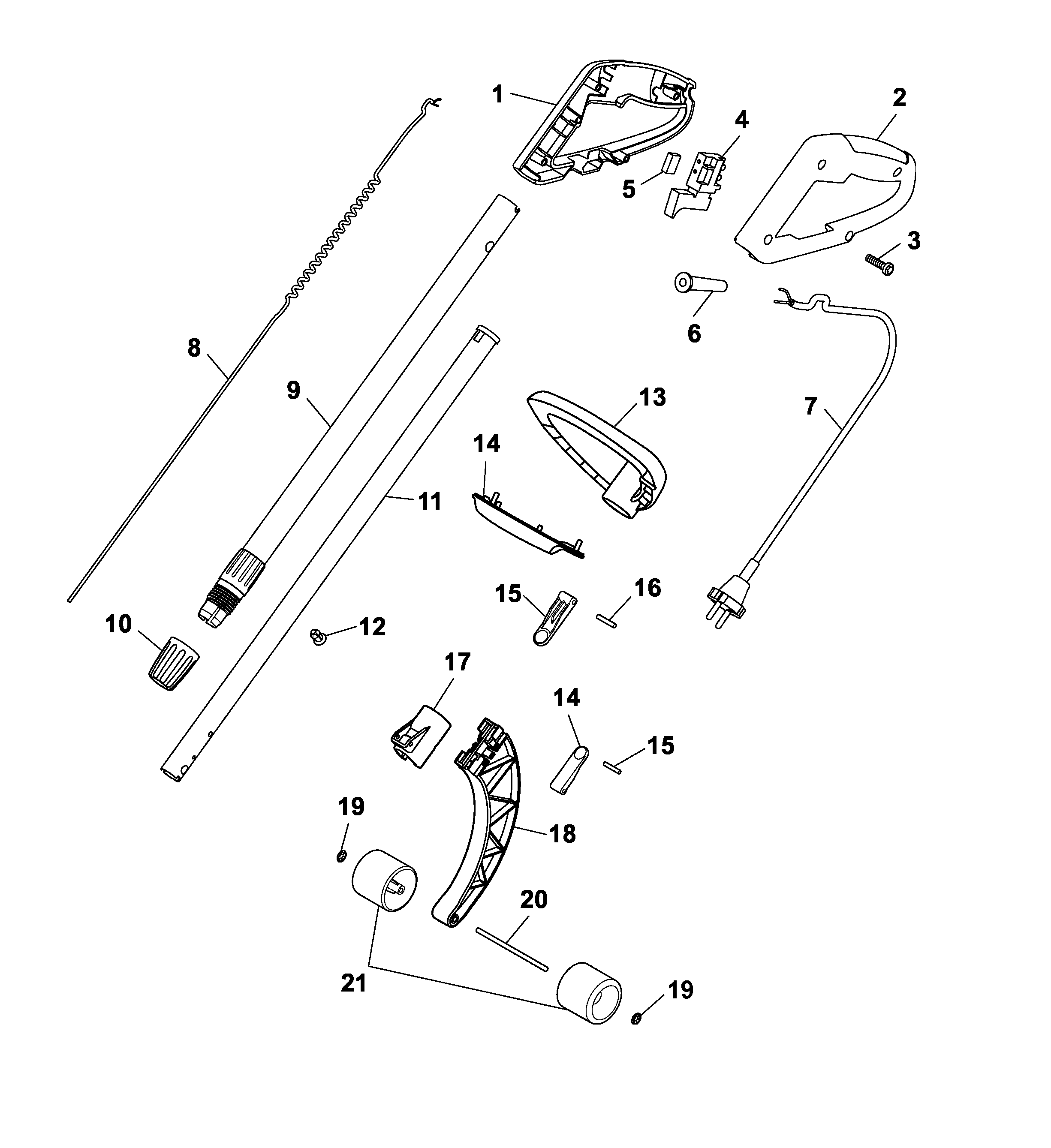

pos. | decription | spare part number | |
1 | Handle Half Right | 7136 314 |
2 | Handle Half Left | 7136 316 |
3 | Screw | 0012 625 |
4 | Switch-Key | 7120 204 |
5 | Anti-Interference Capacitor | 7120 135 |
6 | Antikink | 7136 330 |
7 | Mains Cable | 7126 218 |
8 | Connecting Cable Separately | 7136 208 |
*** | Connecting Cable Compl. Ch | 7130 033 |
9 | Upper Tube Compl. | 7136 025 |
10 | Nut For Telescopic Handle | 7136 319 |
11 | Lower Tube Compl. | 7136 112 |
12 | Body-Bound Rivet | 6110 315 |
13 | Handle | 7136 311 |
14 | Blanking Plug | 7136 312 |
15 | Eccentric Lever | 7136 313 |
16 | Grooved Pin | 0018 646 |
*** | Middle handle compl. incl. ref. no. 14-17 | 7136 021 |
17 | Clamp-Casing | 7136 322 |
18 | Undercarriage | 7136 321 |
19 | Clip | 3585 503 |
20 | Axle | 7136 104 |
21 | Roll | 7136 329 |
*** | Undercarriage Compl. | 7136 086 |
