> Mowers > Accu > Without drive > Esprit > Esprit 40 AC > Handlebar, Switch

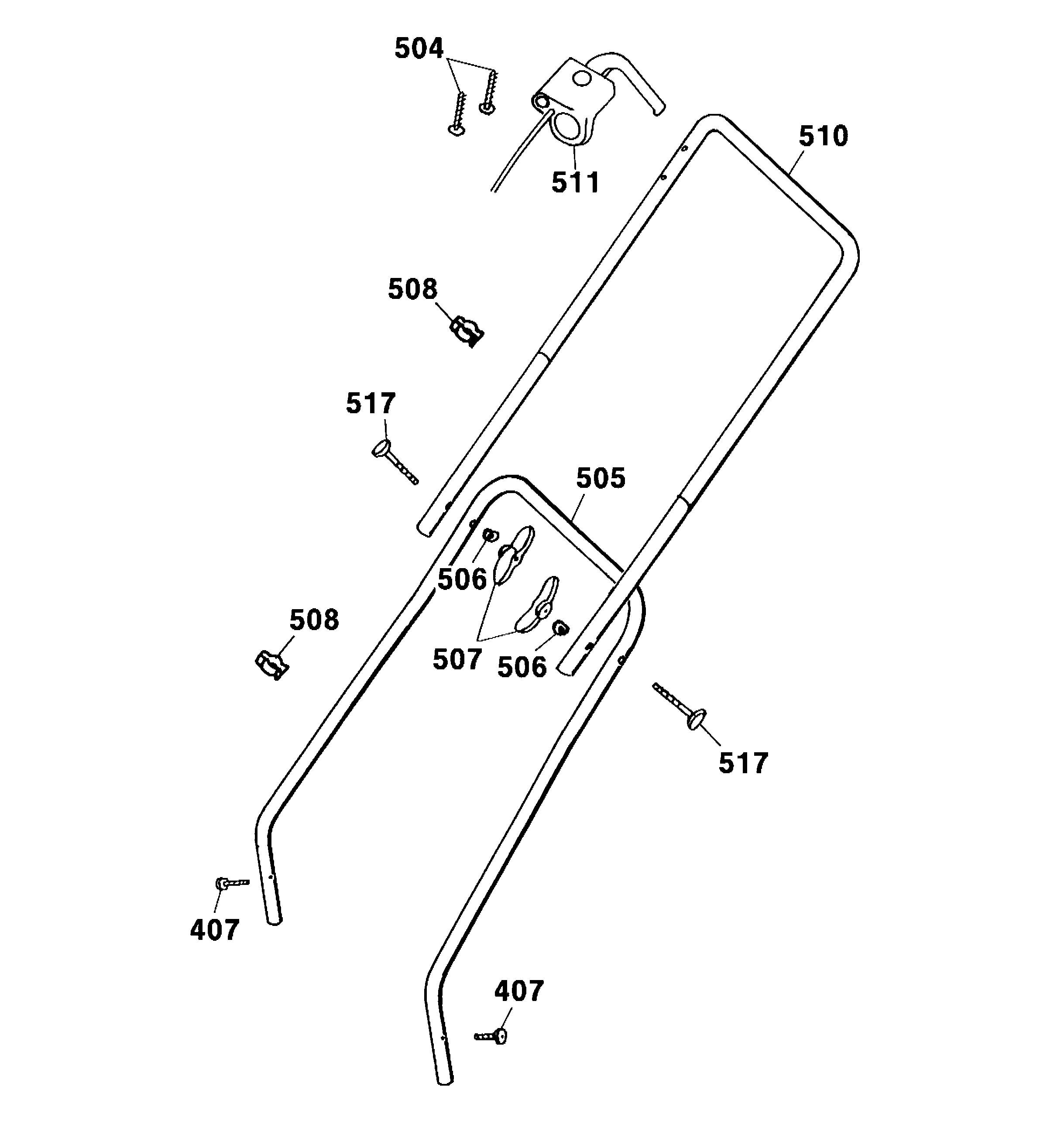

Spare Parts Lists for Wolf Mowers Handlebar, Switch




spare parts list


pos.decriptionspare part number
407Screw0015 660
504Screw0012 630
505Lower Handlebar4961 120
506Hollow Disk0017 275
507Wingnut0016 717
508Cable Clamp4950 307
510Upper Handlebar4961 023
511Switch-Key4042 051
517Connecting Screw4901 101
***Instruction Manual0054 169
***Poly Bag With Operator Instruct.4042 029
