back to
>
Reel-mowers
>
Electro
>
TC 32 ME
>
Handlebar, Switch

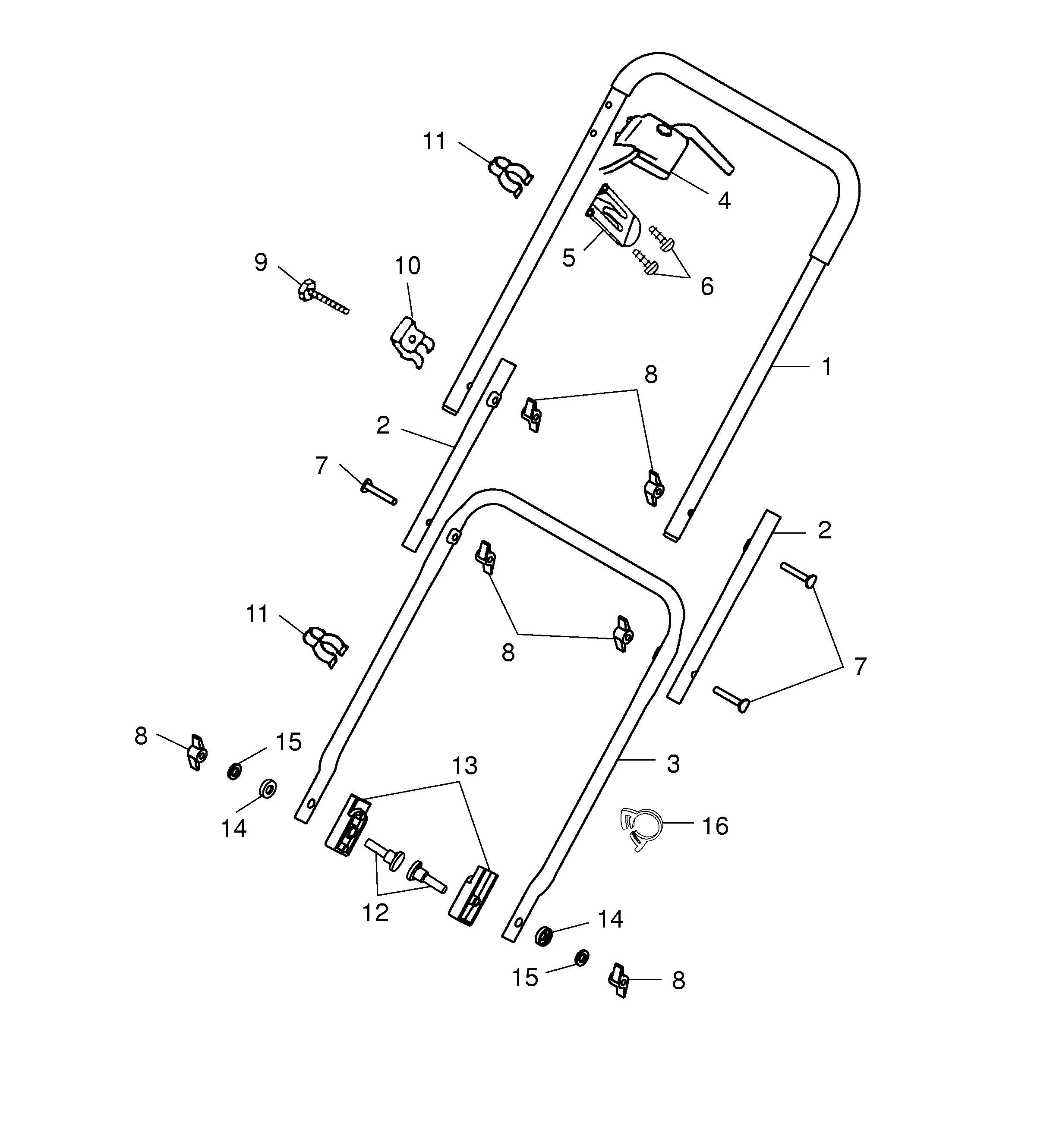

Spare Parts Lists for Wolf Reel-mowers Handlebar, Switch
pos.
decription
spare part number
1
Upper Handlebar
3616 025
2
Handle Pipe
3616 120
3
Lower Handlebar
3616 130
4
Switch-Key
3616 040
5
Strain Relief
3620 325
6
Screw
0012 883
7
Connecting Screw
4901 101
8
Wingnut
0016 720
9
Hex. Screw M8X50
0010 392
10
bend protection
4950 308
11
Cable Clamp
4950 307
12
Securing Screw
3620 110
13
Insulator
3620 311
14
Insulating Disk
3620 313
15
Washer
0017 112
16
Clamp
3616 310
***
Bag With Accessories
3616 030
***
Instruction Manual
0054 372
