back to
>
Mowers
>
Petrol
>
Without drive up to 42 cm
>
series 2
>
2.42 TL
>
Handlebar compl.

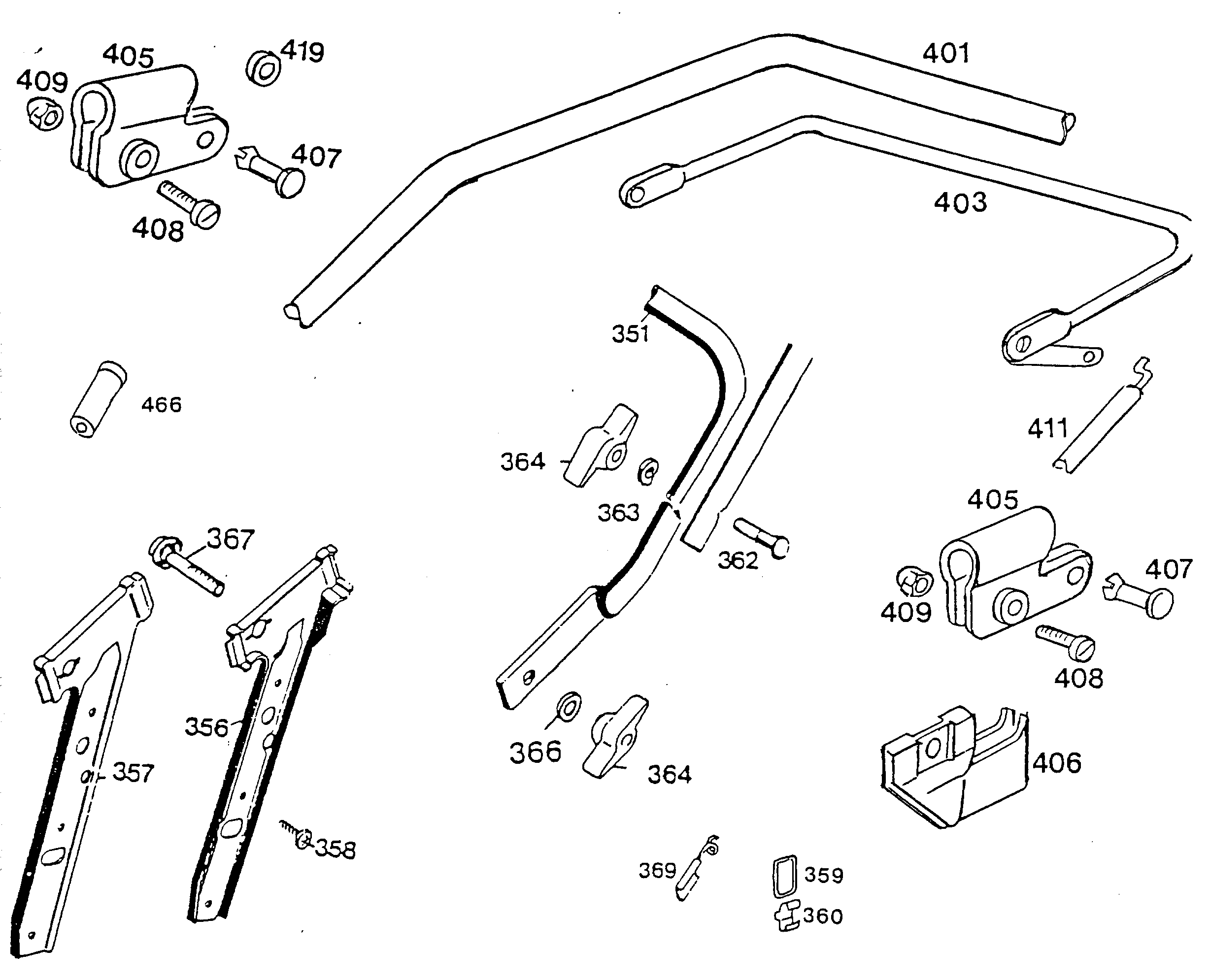

Spare Parts Lists for Wolf Mowers Handlebar compl.
pos.
decription
spare part number
351
Lower Handlebar
4760 120
356
Retainer
4760 103
357
Retainer
4760 104
358
Screw
0012 890
359
Strap
6340 314
360
Clip
6340 312
362
Screw
0013 525
363
Hollow Disk
0017 275
364
Wingnut
0016 715
366
Washer
0017 484
367
Screw
4760 102
369
Guide-Rope
6340 014
401
Upper Handlebar
4765 023
403
Brake Lever
4760 013
405
Clamp-Casing
4720 105
406
Support
4760 106
407
Bolt
4720 109
408
Screw
0012 211
409
Nut
0016 641
411
Bowden Wire Brake
4765 058
419
Distance Disc
4240 205
466
Closing Cap
6360 125
