Spare Parts Lists for Wolf Mowers Handlebar compl.

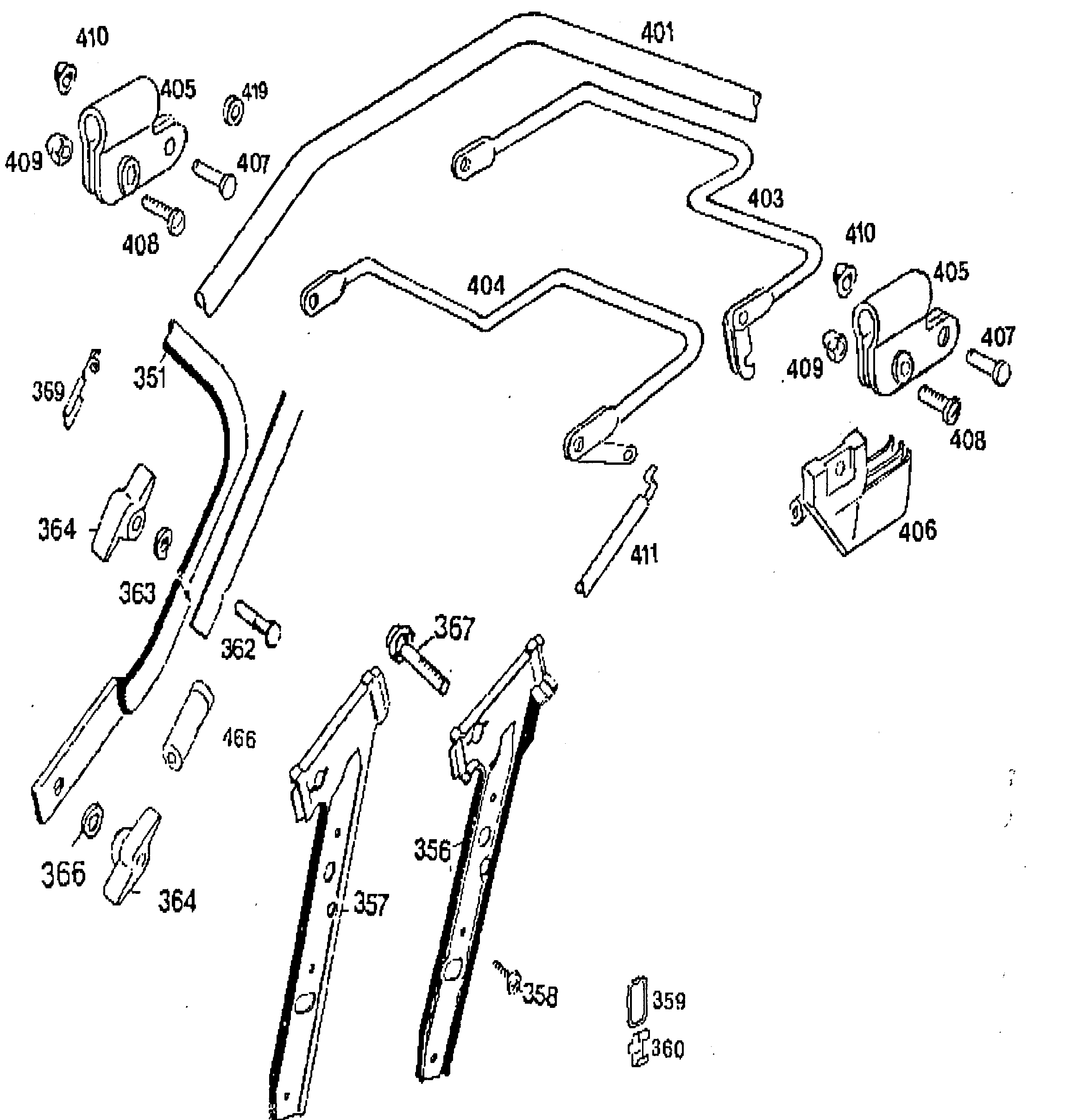

spare parts list


pos.decriptionspare part number
351Lower Handlebar4760 120
356Retainer4760 103
357Retainer4760 104
358Screw0012 890
359Strap6340 314
360Clip6340 312
362Screw0013 525
363Hollow Disk0017 275
364Wingnut0016 715
366Washer0017 484
367Screw4760 102
369Guide-Rope6340 014
401Upper Handlebar4765 023
403Lever4722 035
404Brake Lever4765 013
405Clamp-Casing4720 105
4 06Support4765 106
407Bolt0018 105
408Screw0012 211
409Nut0016 641
414Clip3585 503
411Bowden Wire Brake4765 058
419Distance Disc4240 205
466Closing Cap6360 125
