> Mowers > Petrol > Drive up to 42 cm > Premio > Premio 40 HA > Handlebar compl.

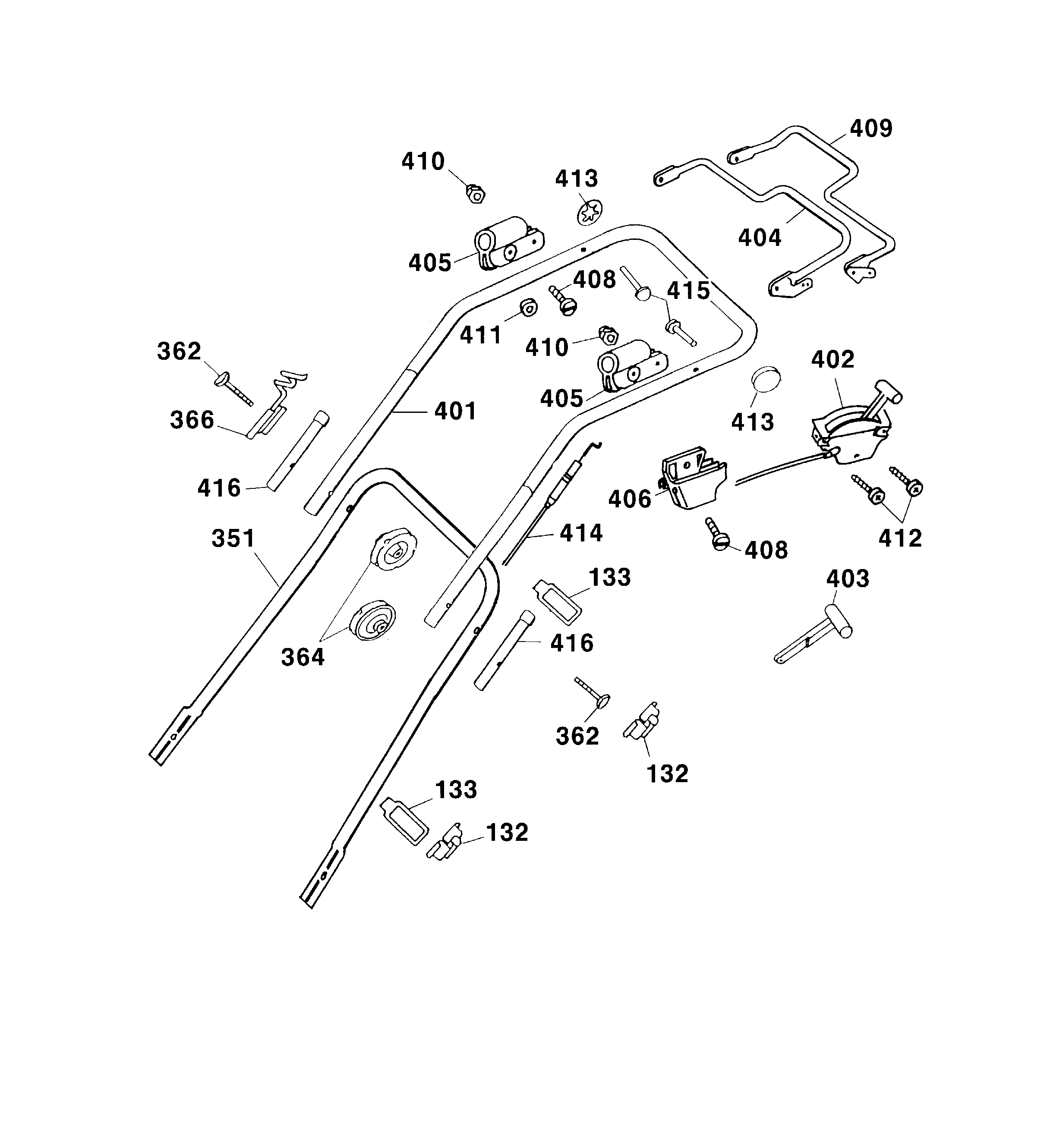

Spare Parts Lists for Wolf Mowers Handlebar compl.




spare parts list


pos.decriptionspare part number
132Clip6340 312
133Strap6340 314
351Lower Handlebar4011 122
362Connecting Screw4901 101
364Handwheel4936 022
366Guide-Rope6340 014
401Upper Handlebar4720 023
402Case With Bowden Wire, Gas4011 056
***Case, Right6450 325
***Case left6450 326
403Gear Lever4011 040
404Brake Lever4015 013
405Clamp-Casing4720 105
406Double Support4015 306
408Screw0012 211
409Lever4015 035
410Nut0016 641
411Distance Disc4240 205
412Screw0012 886
413Clip3585 503
414Bowden Wire Coupler4005 055
415Bolt0018 107
416Closing Cap6340 125
***Instruction Manual0054 369
