> Mowers > Electro > Without drive from 40 cm on > series 2 > 2.42 E > Handlebar compl.

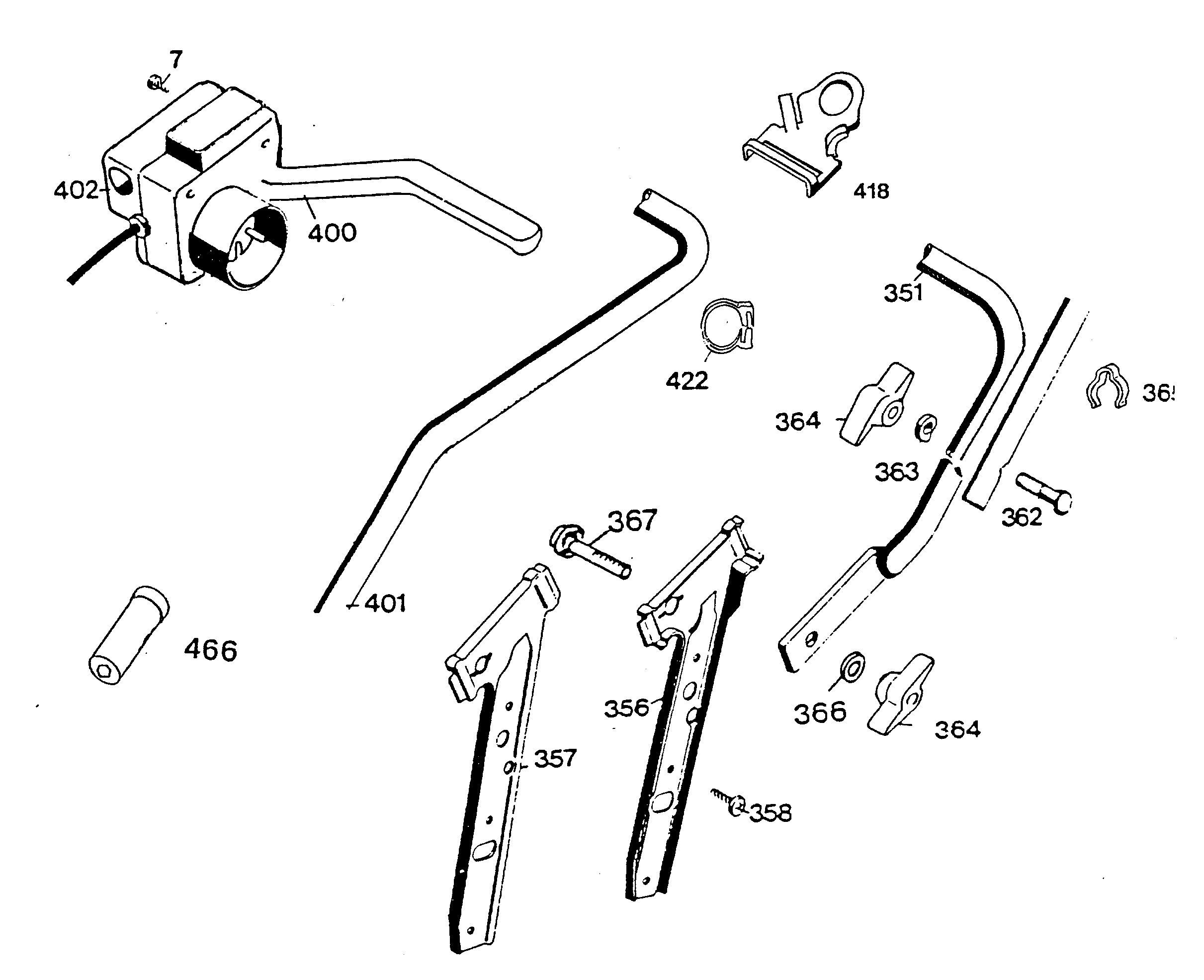

Spare Parts Lists for Wolf Mowers Handlebar compl.


spare parts list 1
spare parts list 2


spare parts list


pos.decriptionspare part number
7Screw0012 625
spare parts list


pos.decriptionspare part number
351Lower Handlebar4760 120
356Retainer4760 103
357Retainer4760 104
358Screw0015 659
362Screw0013 525
363Hollow Disk0017 275
364Wingnut0016 715
365Cable Clamp4950 307
366Washer0017 484
367Screw4760 102
400Handle4932 100
401Upper Handlebar4960 025
402Switch-Key4925 040
418Cable Guide4936 323
422Cable Guide Clip4912 304
466Closing Cap6360 125
****Instruction Manual0054 064
