Spare Parts Lists for Wolf Mowers Height-adjustment

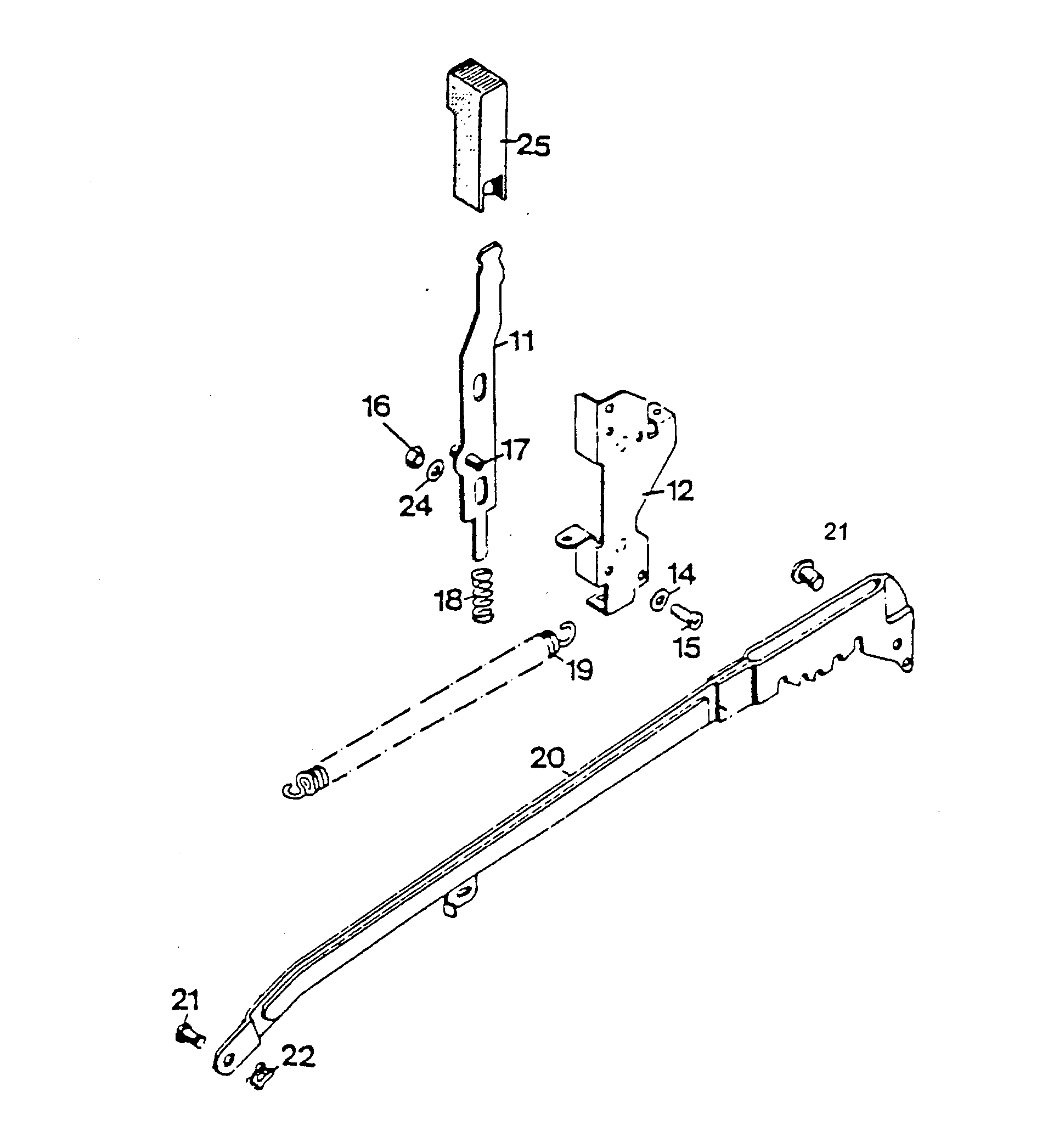

spare parts list


pos.decriptionspare part number
11Lever With Ref. No. 174740 013
12Guiding6340 020
14Flat Washer 5.3 Din 9021 B0017 287
15Screw0012 864
16Nut0016 311
17Dowel Pin0018 864
18Spring4740 207
19Spring4740 206
204942 050
21Bolt6340 214
22Retaining Clip0020 981
24Washer0017 290
25Button4740 100
