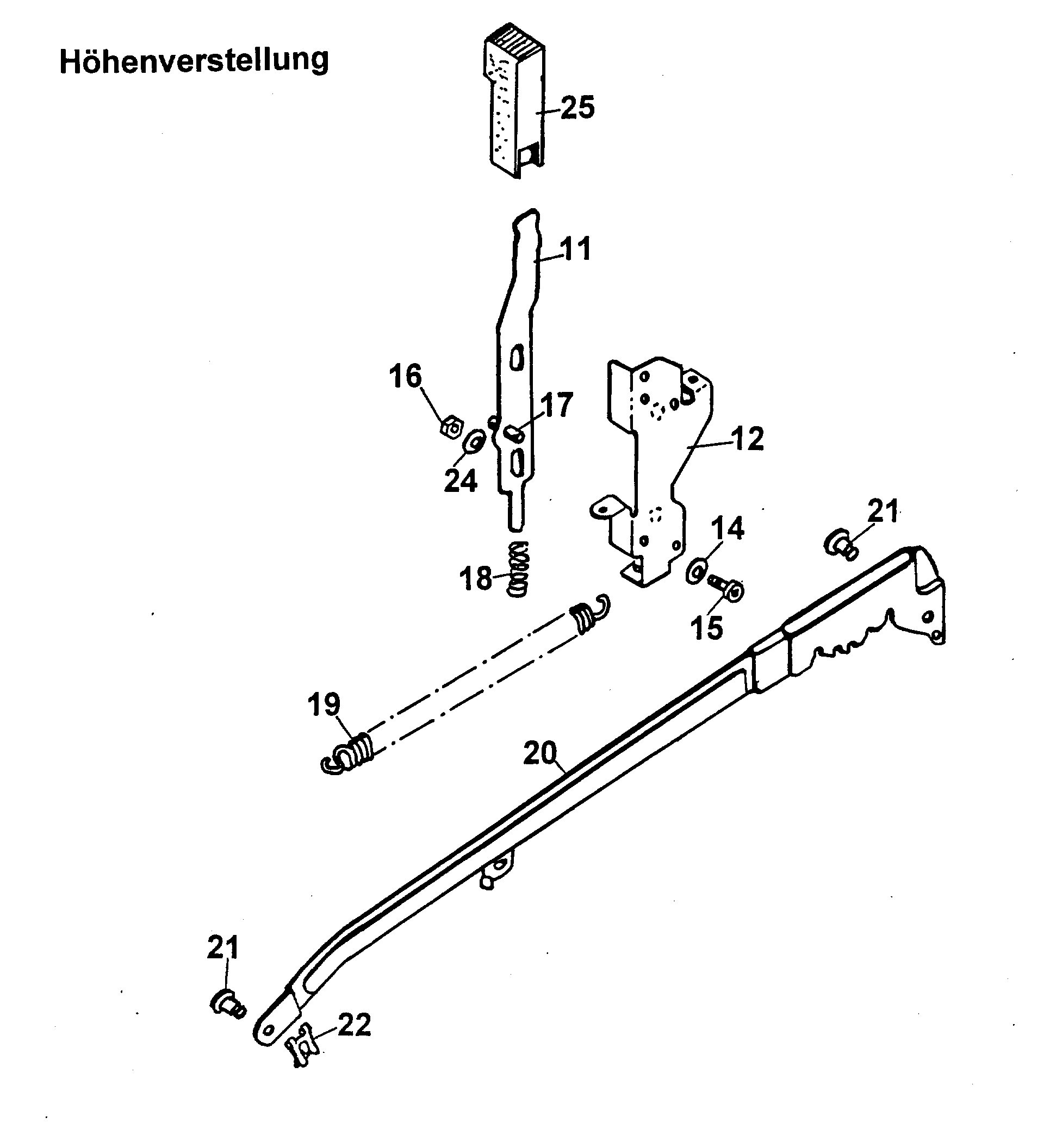

Spare Parts Lists for Wolf Mowers Height-adjustment

pos.	decription	spare part number
11	Lever With Ref. No. 17	4740 013
12	Guiding	6340 020
14	Flat Washer 5.3 Din 9021 B	0017 287
15	Screw	0012 864
16	Nut	0016 311
17	Dowel Pin	0018 864
18	Spring	4740 207
19	Tension spring connecting rod	4961 107
20	Rod	4942 020
21	Bolt	6340 214
22	Retaining Clip	0020 981
24	Washer	0017 290
25	Button	4740 100
30	Bolt	0018 458
