Premio
>
Premio 40 EKF
>
Kabelfix assembly 2

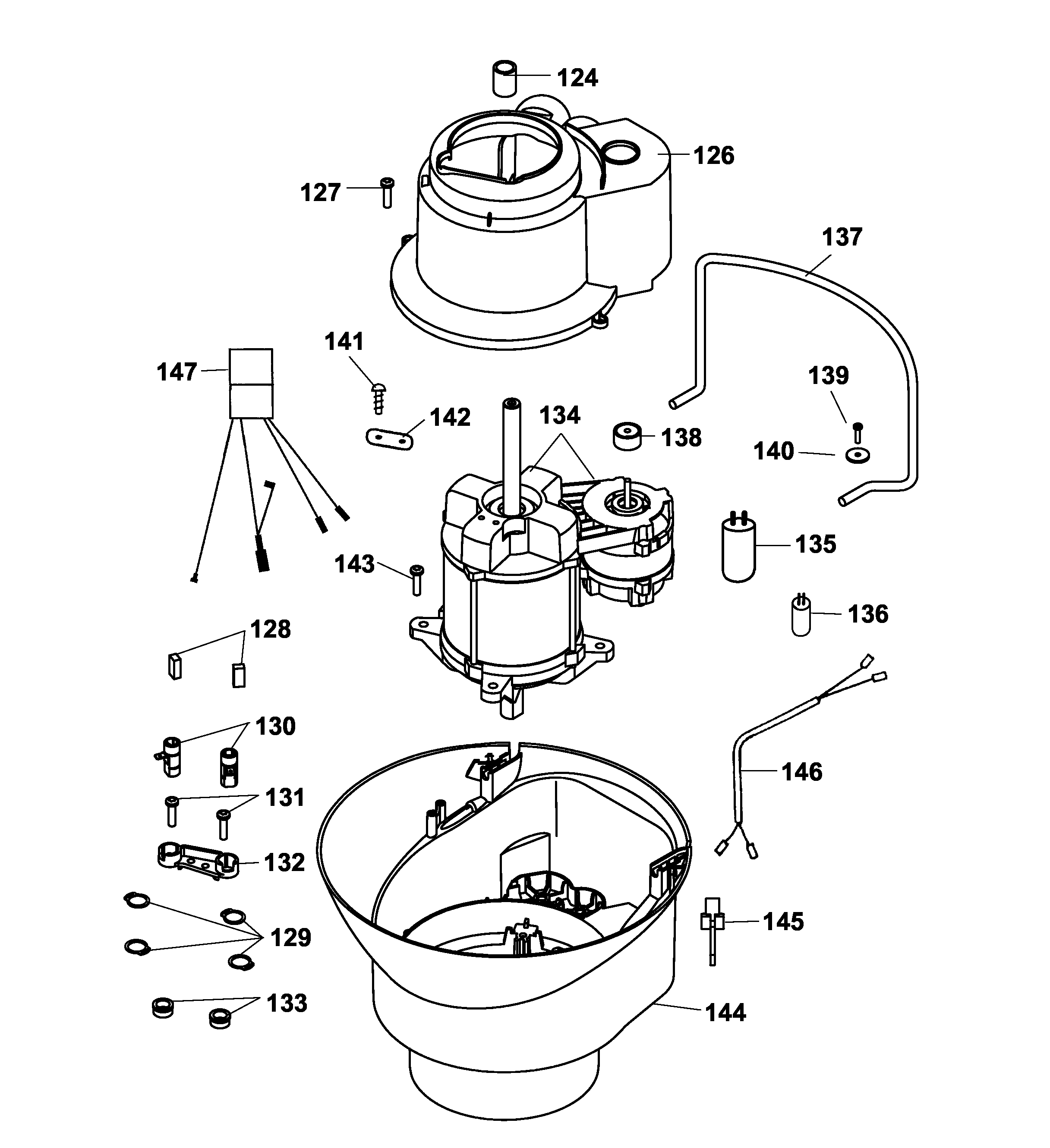

Spare Parts Lists for Wolf Mowers Kabelfix assembly 2
pos.
decription
spare part number
124
Distance Bush
4026 115
126
Air-Conduction
4026 312
127
Screw
0012 625
128
Carbon Brush
4026 107
129
Retainer-E Ring
0020 012
130
Carbon Holder
4026 106
131
Screw 5X12
0012 605
132
Carrier
4026 313
133
Cover Plate
4026 108
134
Motor
1140 075
135
Condenser, 20 µF
1133 040
136
Condenser, 1,5 µF
1140 040
137
Stop Motion Shackle
4026 100
138
Crown Gear
4026 311
139
Screw
0012 625
140
Washer
0017 272
141
Screw
0012 625
142
Clamp-Casing
4557 208
143
Screw
0012 886
144
Lower Part
4026 310
145
Brake Lever
4026 320
146
Wire Connector
3567 214
147
Cable Form
4026 120
