> Petrol engines > Tecumseh > Synergy > Synergy 38 ES > Motor (1)

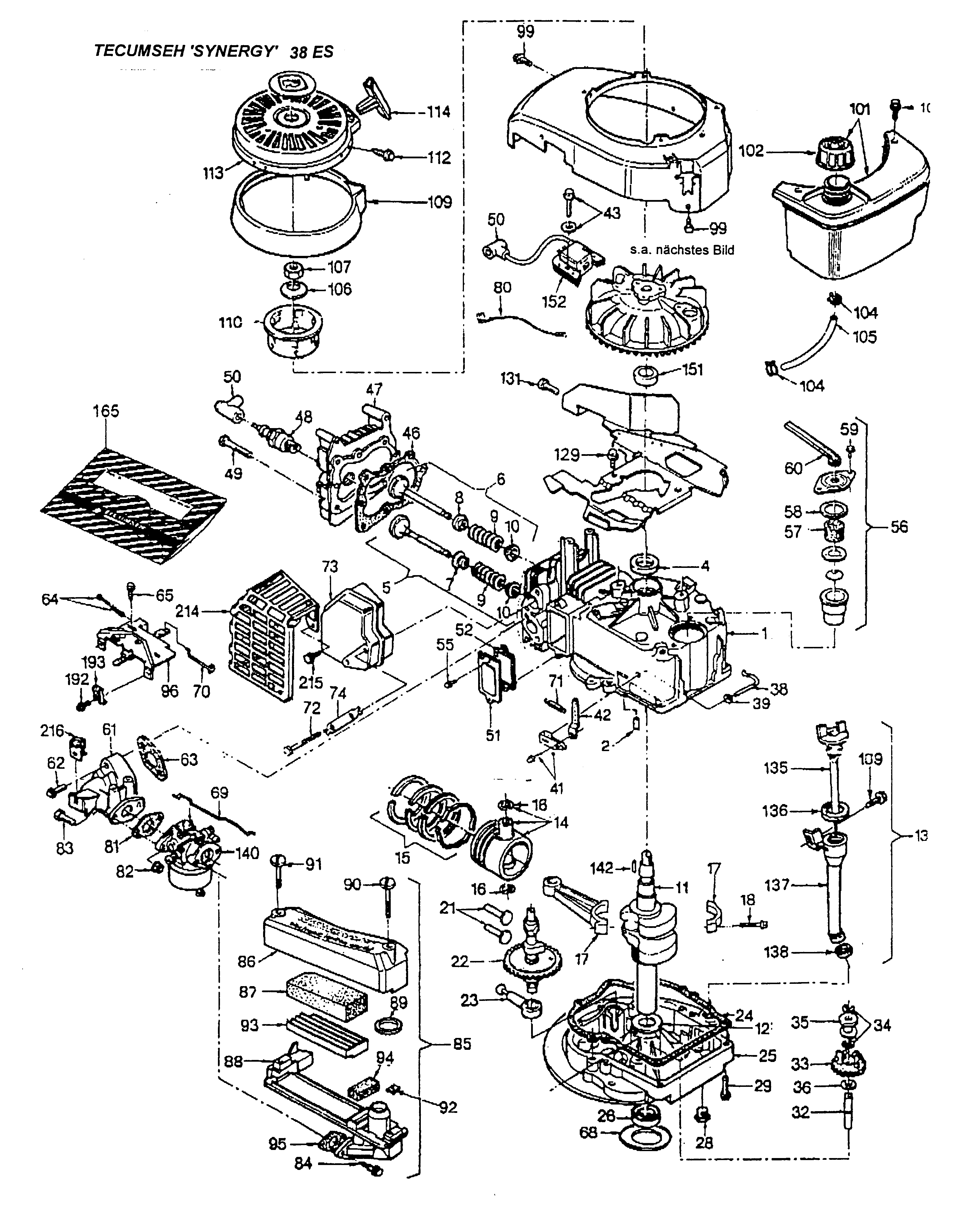

Spare Parts Lists for Wolf Petrol engines Motor (1)




spare parts list


pos.decriptionspare part number
1Cylinder2031 052
2Pin-Counterweight1032 201
4Seal-Governor Shaft1005 202
5Intake Valve1032 203
6Exhaust Valve2085 056
7Oil Seal2031 215
8Valve2027 204
9Valve-Spring2031 113
10Valve1005 209
11Crankshaft2085 200
12Thrust Bearing2025 208
14Piston assembly1039 102
15Piston Ring Set1039 103
16Retainer-E Ring1032 103
17Pod-Connecting2036 202
18Screw2036 201
21Bolt2031 114
22Camshaft2036 203
23Pump Oil2026 206
24Seal1032 223
25Flange2027 201
26Oil Seal1005 217
28Oil Drain Plug2030 209
29Screw1038 209
32Govenor Shaft1032 225
33Governor Gear1032 230
34Washer Spring1032 231
35Governor Spool1032 232
36Washer2026 205
38Govenor Shaft2026 208
39Washer1032 236
41Lever2031 117
42Govenor Lever2085 202
43Screw2085 222
46Seal1032 112
47Head-Cylinder2033 100
48Plug-Spark2058 305
49Screw2030 203
50Spark Plug Socket2085 301
51Valve Cover2087 301
52Seal1032 306
55Screw2031 201
56Breather2031 531
57Breather element2087 303
58Seal2085 309
59Screw2085 310
60Breather Tube2031 532
61Inlet Pipe2033 250
62Screw2085 404
63Seal2031 221
64Screw2031 210
65Screw2085 310
68Cover2026 204
69Joint2085 214
70Joint2085 215
71Spring - Governor1032 486
72Screw2030 200
73Muffler2033 010
74Holding Plate2025 209
80Harness-Alternator2033 110
81Seal1037 400
82Nut2085 403
83Screw2031 202
84Screw2031 203
85Filter-Pre Cleaner2031 056
86Air Filter Cover2031 401
87Filter Element2031 405
88Air Cleaner Case2031 408
89Seal2087 409
90Screw2031 204
91Screw2031 205
92Nut2031 220
93Air Cleaner Fence2031 410
94Breather Element2031 112
95Seal2027 403
96Holding Plate2031 118
99Screw1032 315
101Fuel Tank2031 057
102Fuel Cap2085 500
103Screw2026 215
104Clip2030 501
105Line-Fuel2026 500
106Washer2026 606
107Nut2026 607
109Ring2033 505
110Cup-Flywheel2035 601
112Screw2085 614
113Starter-Rewind2085 052
114Handle2030 601
129Screw2085 320
131Screw2085 310
134Oil Filler Assy.2031 075
135Oil Dipstick Gasket2031 255
136Seal2031 452
137Tube-Dipstick2031 250
138Seal2027 208
140Carburetor2033 020
142Key-Pulley2030 201
151Spacer Block2085 304
152Armature-Magneto2030 055
165Seal Set2031 058
192Screw2085 404
193Arm1038 402
214Muffler Guard2033 325
215Screw2031 207
216Clamp2033 326
